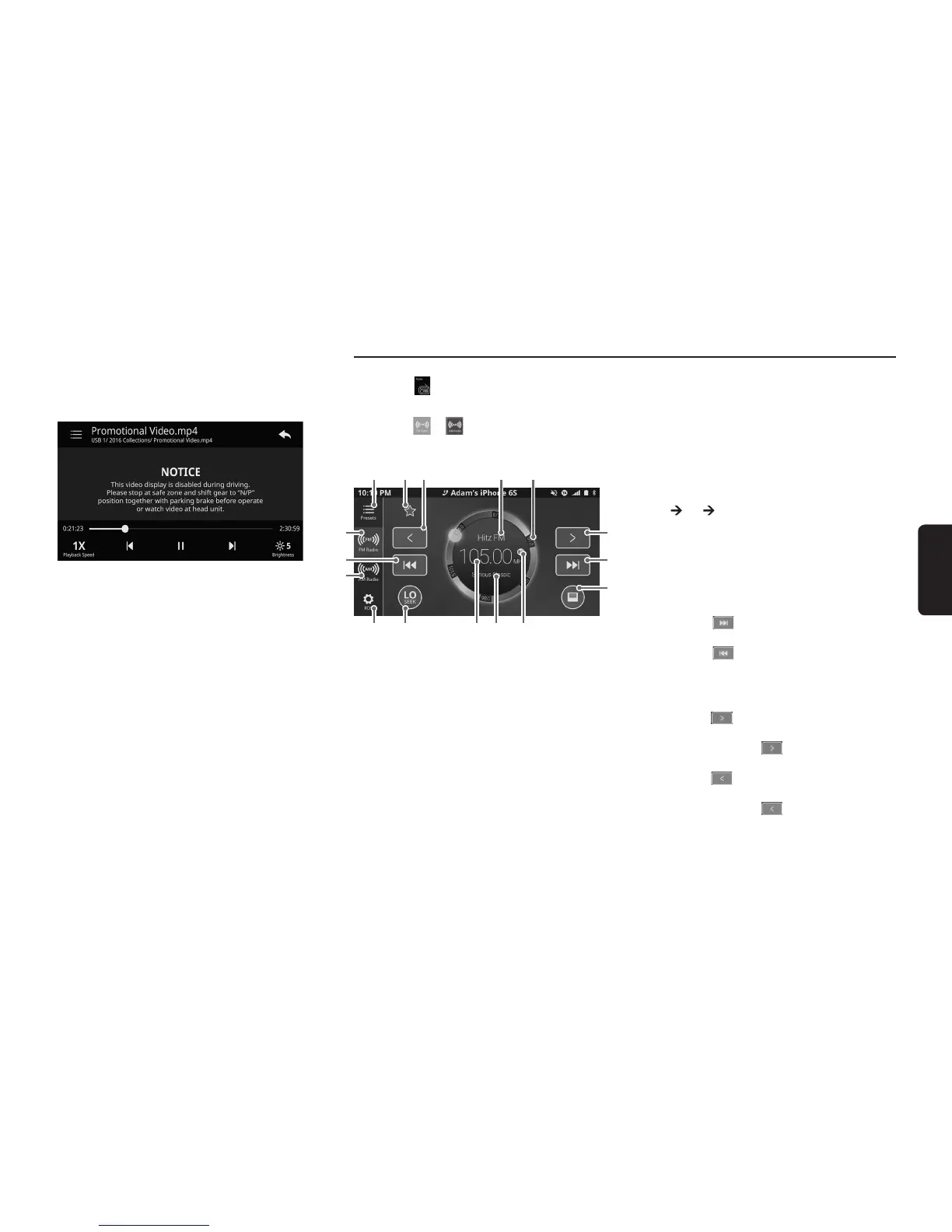

6. RADIO MODE OPERATIONS
Parking Brake Safety
The video at the unit can only be displayed when the
parking brake is enabled (when the car is parked).
The audio portion of the video can still be played,
but a notification screen will be displayed in place
of the video display.
Listening to the Radio
1. Press the button on the Home Screen to se-
lect Radio mode. The display will change accord-
ingly.
2. Press the or tab to select one of the des-
ignated bands. Each time the button is pressed,
the display will switch to the designated band.
1 2 3 4
13 12 11 10 9
16
15
14
5
6
7
8
1) Presets tab
2) Favourite station
3) Manual Seek down
4) Station Name display
5) Frequency bar
6) Manual Seek up
7) Auto Seek up
8) RDS Text
9) Stereo Indicator display
10) PTY Name display
11) Frequency display
12) DX/Local seek mode
13) RDS Tab
14) AM Radio tab
15) Auto Seek down
16) FM Radio tab
Seek Tuning
1. Press the [DX/Local] button to select the seek
mode. The button display will change accordingly.
Every time the [DX/Local] button is pressed, the
display will change:
DX LO DX…
Notes:
• Thereare2types ofseektuning:DXSeek andLOCAL
Seek.
• DXSeekcanautomaticallytuneintoreceivablebroadcast
stations; LOCAL Seek can tune in to only broadcast sta-
tions with good reception sensitivity.
2. Press the button to perform seeking in the
direction of higher frequencies.
3. Press the button to perform seeking in the
direction of lower frequencies.
Manual Tuning
1. Press the button to perform a single step in
the direction of higher frequencies.
2. Press and hold the button to continuously
search for higher frequencies.
3. Press the button to perform a single step in
the direction of lower frequencies.
4. Press and hold the button to continuously
search for lower frequencies
Notes:
• Manual Seek allows formanual tuningtoany frequency
regardless of broadcast.
• Whilecontinuouslysearchingforafrequency,thespeed
does not increase.
Video Output
If an external monitor is connected to the head unit,
passengers in the back seat can watch the video
separately.
Notes:
• TheexternalmonitorcanonlymirrorvideosfromtheUSB
connected to the unit.
• Mirroredvideoscanbedisplayedeveniftheparkingbrake
is disabled (when the car is moving).
Rear View Camera
1. When the vehicle is set to reverse gear, the unit
will display the rear view camera.
2. All video display will be disabled during rear view
camera.
3. The system will return to the previous display after
the reverse gear is released.
