Installing the Main Unit
83
MAX973HD
English
INSTALLATION AND WIRE
CONNECTION MANUAL
Installing the Main Unit
This unit is designed for fixed installation in the dashboard.
1. When installing the main unit in NISSAN vehicles, use the parts attached to this unit.
When installing the main unit in TOYOTA vehicles, use the parts attached to the vehicle.
2. Wire as shown in the section “Wire Connection”.
3. Reassemble and secure the unit in the dashboard and set the face panel and centre panel.

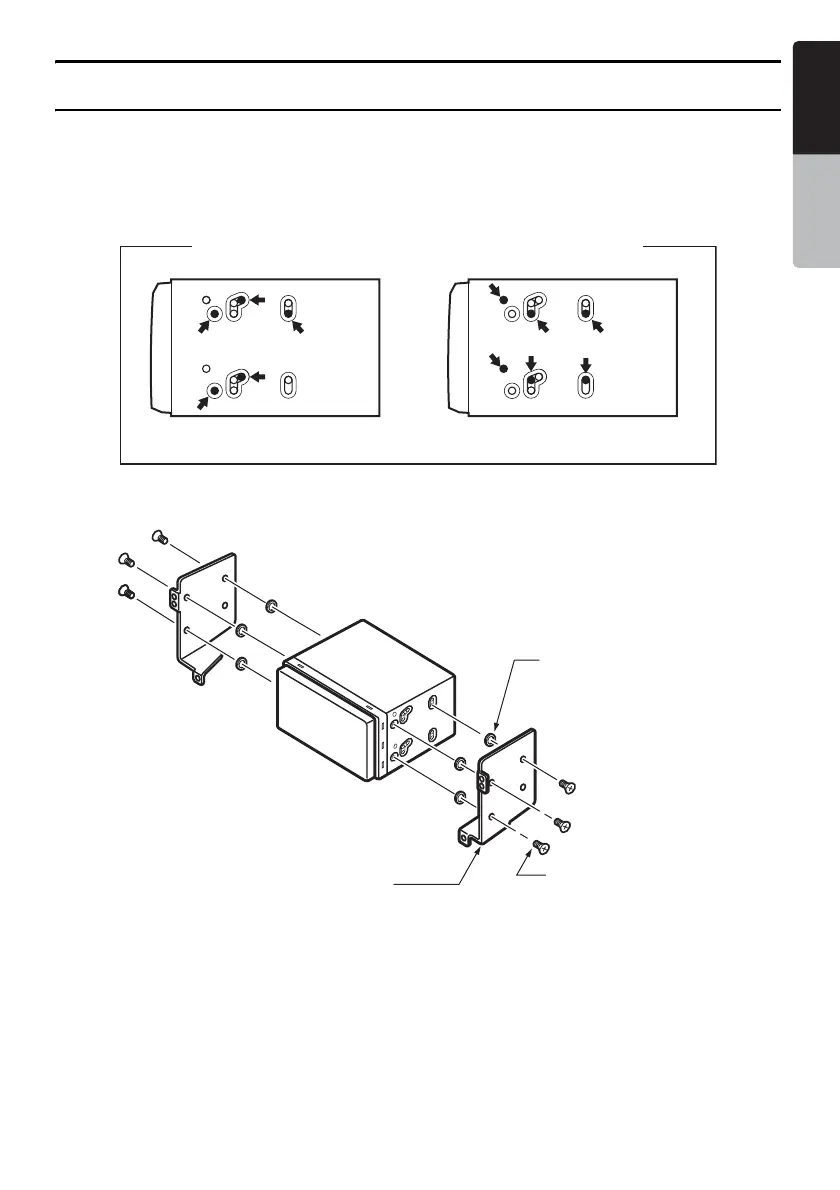

Installing the main unit in a NISSAN Vehicle
Mounting Screw Holes (Side View of the Main Unit)
For NISSAN vehicle
For TOYOTA vehicle
Main Unit
6-Spacer (thickness: 1 mm)
6-Flat head screw
(M5 u 8)
(attached to the main unit)
Mounting bracket
(1 pair for the left and right sides)
To Next Page
