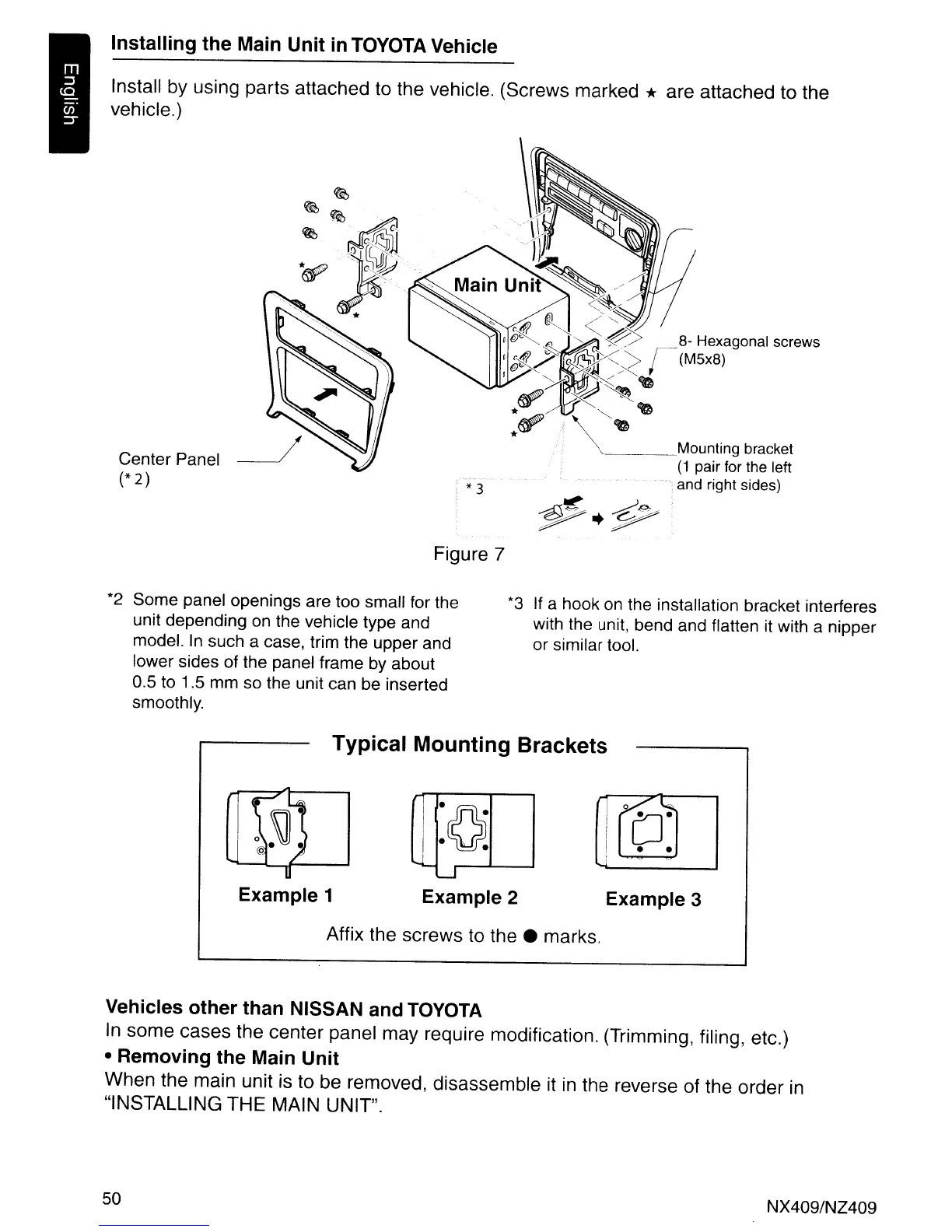

Installing the Main Unit in TOYOTA Vehicle
Install by using parts attached to the vehicle. (Screws marked * are attached to the
vehicle.)
Center Panel
(* 2)
Figure 7
*2 Some panel openings are too small for the
unit depending on the vehicle type and
model.
In such a case, trim the upper and
lower sides of the panel frame by about
0.5 to 1.5 mm so the unit can be inserted
smoothly.
*3 If a hook on the installation bracket interferes
with the unit, bend and flatten it with a nipper
or similar tool.
Typical Mounting Brackets
Example 1
:0
.... ~ LJ.--~_-1
Example 2
Example 3
Affix the screws to the. marks.
Vehicles other than NISSAN and TOYOTA
In some cases the center panel may require modification. (Trimming, filing, etc.)
• Removing the Main Unit
When the main unit is to be removed, disassemble it in the reverse of the order in
"INSTALLING THE MAIN UNIT".
50 NX409/NZ409
