6.
Cautions
on
Wiring
1.
Be sure to turn the power off before wiring.
2. Be particularly careful where you route the wires.
Keep them well away from the engine, and
exhaust pipe, etc. Heat may damage the wires.
3.
If the fuse should blow, check to see if the
wiring is correct.
If a fuse is blown, replace it with a new one of
the same amperage rating as the original (15A FUSE).
4.
To
replace the fuse, remove the old fuse on the back
of the unit and insert the new one. (Figure 8)
NOTE:
There are various types
of
fuse holder. Do
not
let the battery
side touch other metal parts.
ACAUTION
After
the
connection,
fix
the
cord
by
a
clamp
or
insulation
tape
for
protection.
Fuse holder
Fuse (15A FUSE)

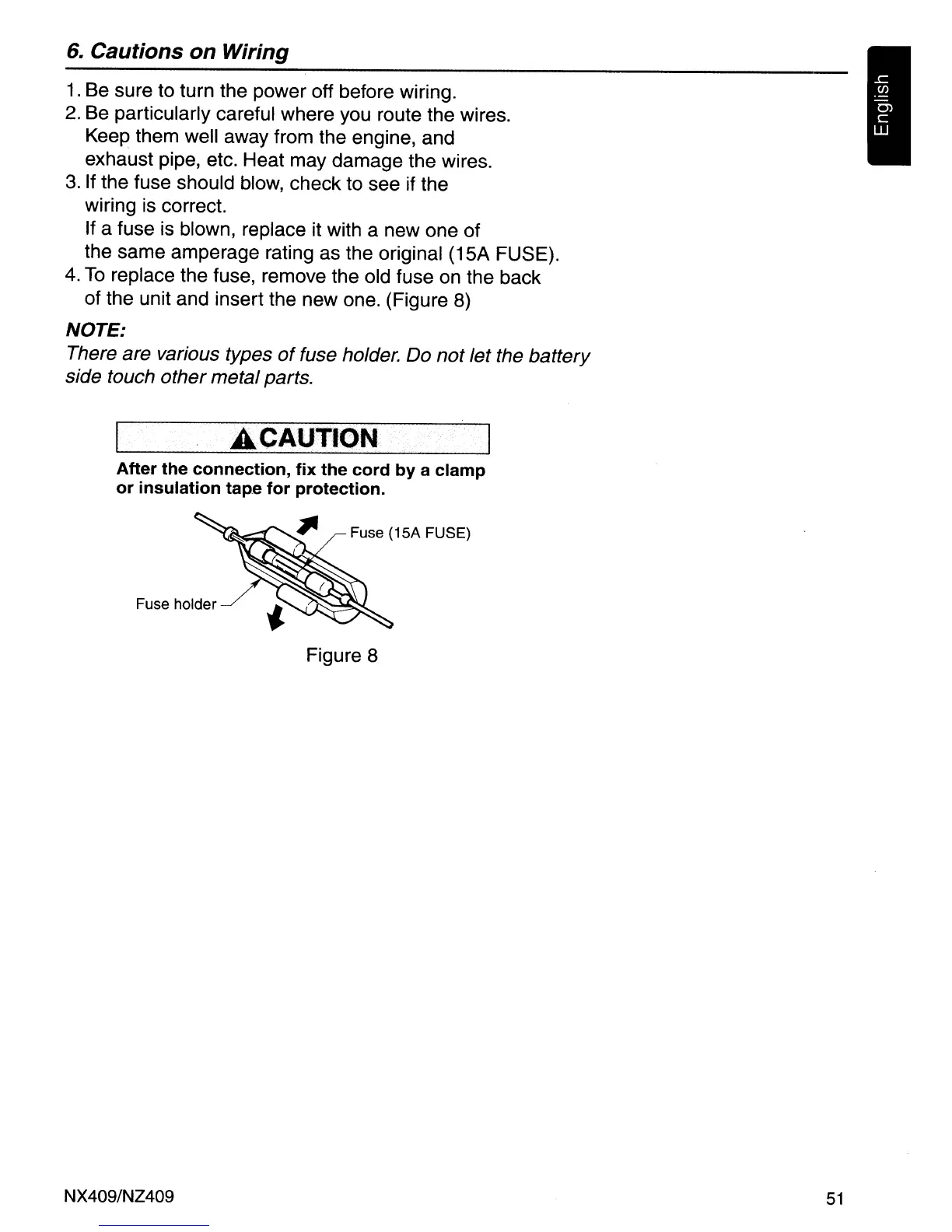

Figure 8
NX409/NZ409
51
