Clark CER10 - Transpotation; Reach Cylinder Pin; Main Lift & Tilt & Return Hose; Fork & Load Backrest

1 – 13
When a truck can't be loaded in a container because of a high-MAST.
The MAST shall be disassembled.
•Disassembly method is following below.

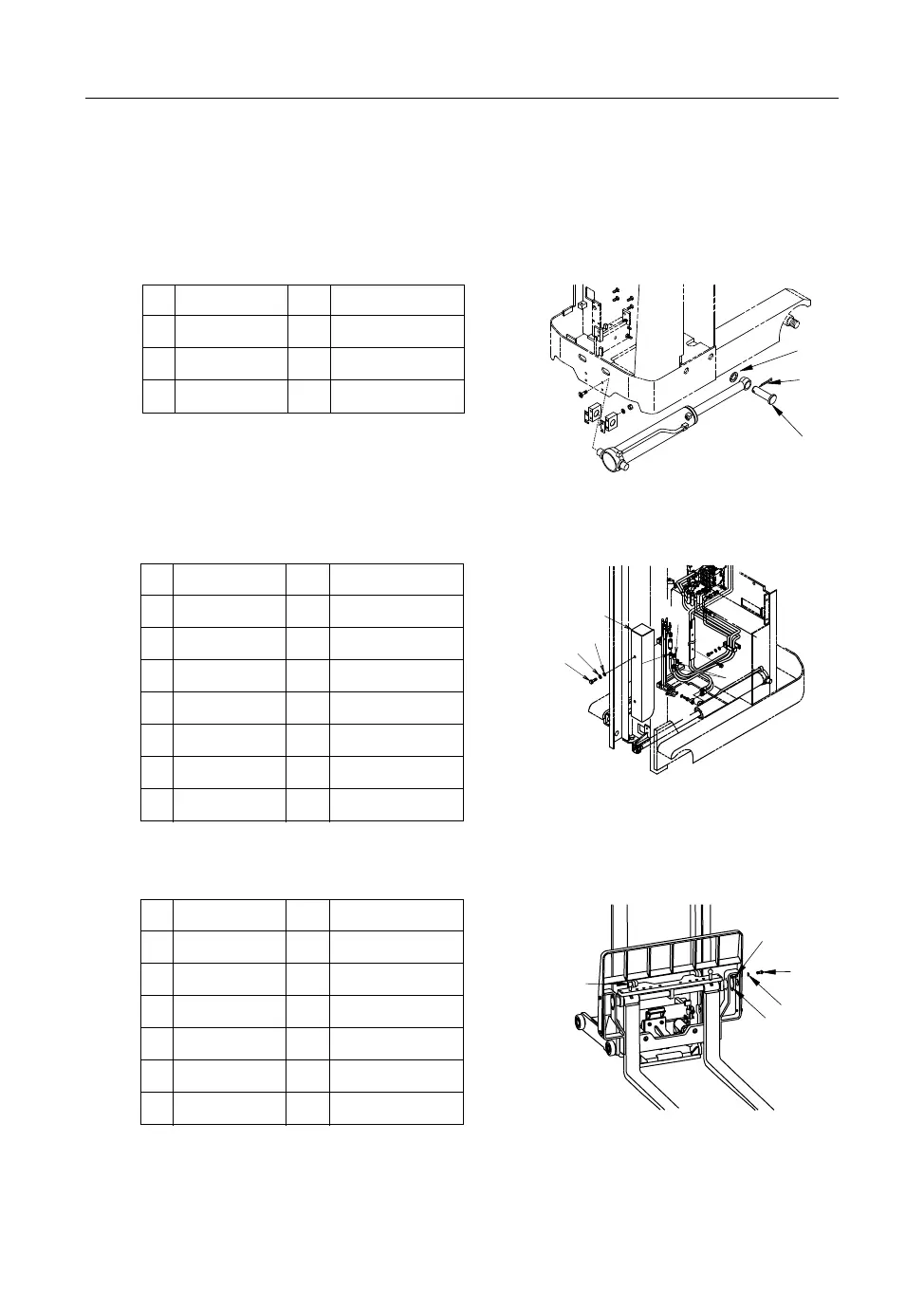

10.1 REACH CYLINDER PIN
10.2 MAIN LIFT & TILT & RETURN HOSE
10.3 FORK & LOAD BACKREST
•Assembly is reverse of the disassembly
10. TRANSPOTATION
1
2
3
FX1169
1
2
3
4
5
6
7
FX1170
1
2
3,4
5
6
FX1171
No Part name Qty Remarks
1 Cover 1
2 Bolt 2 6.5 ±0.5kgf·m
3 Washer plain 2
4 Washer spring 2
5 Lift hose 1 6 ±0.5kgf·m
6 Tilt hose 2 5 ±0.5kgf·m
7 Return hose 1 5 ±0.5kgf·m
No Part name Qty Remarks
1 Pin assy fork 2
2 Cover 2
3 Bolt 4 3.3 ±0.3 kgf·m
4 Washer spring 4
5 Bolt lbr mtg 4 11.3 ±1.1 kgf·m
6 Washer spring 2
No Part name Qty Remarks
1 Pin 1
2 Washer 1
3 Pin split 1
