2 – 25
19.2 CHECKING METHODS BEFORE STARTING OPERATION
1 Checking brake pedal
• Check the operating distance of brake pedal (about 7cm from the floor plate).
• When pressing brake pedal, check that micro switch is operated at 1.5~2cm
from the floor plate.
• When releasing brake pedal, check that it is operated normally.
• Check mechanical conditions of brake.
CER10~13
····················································· below 1.2m
CER15~18 ····················································· below 1.5m
CER20~25 ····················································· below 1.8m
If braking distance is over the above figures, adjust it.
(Refer to <GUIDE TO REPLACE AND REPAIR PARTS>)

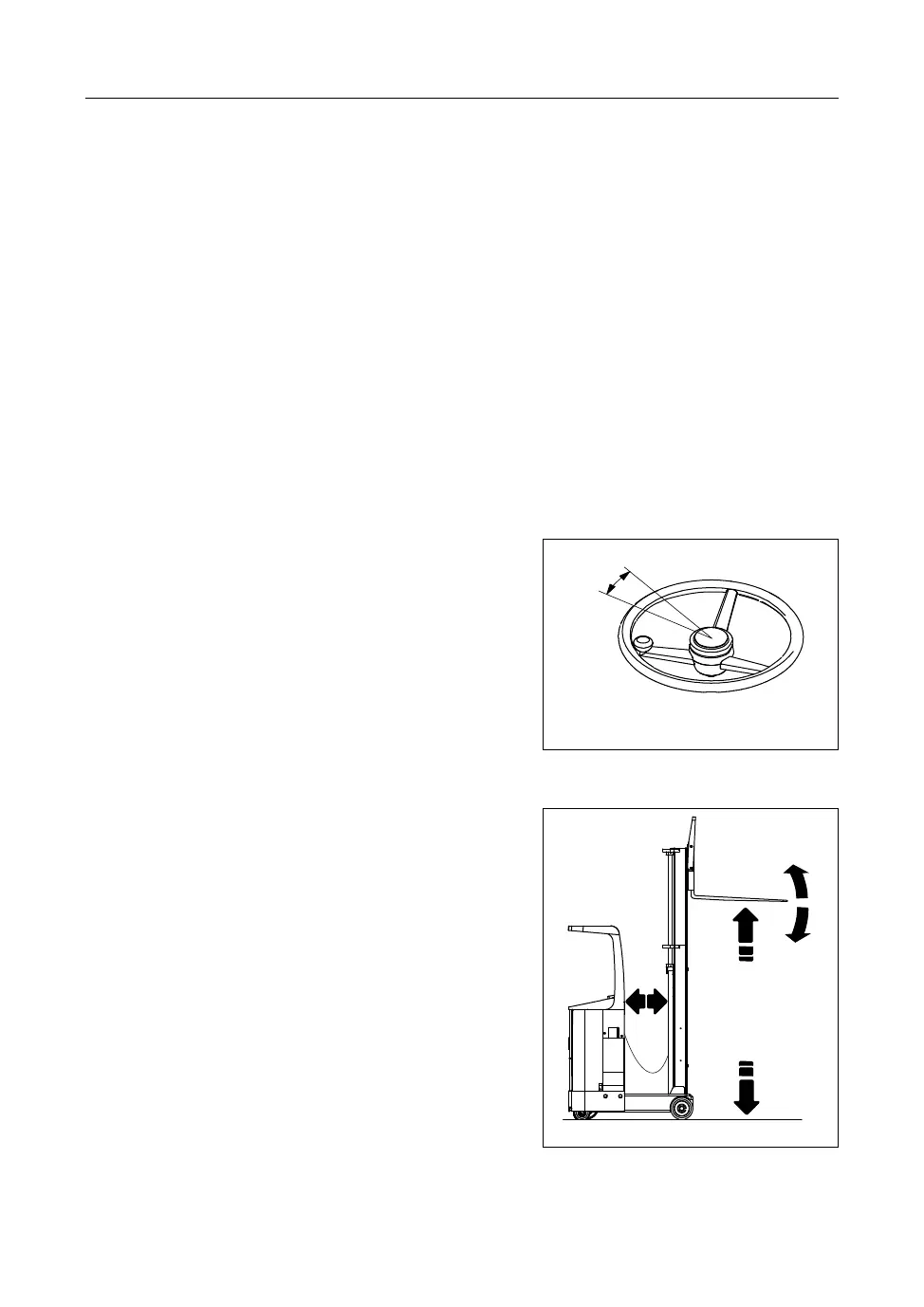

2 Checking the clearance of steering wheel
and power steering
Turn the steering wheel to the right and
left to check the clearance.
The appropriate clearance of steering
wheel is 5~10cm.
3 Checkting the operation of each part
Operate the fork up and down, tilt the
mast forward and backward, and insert
and pull out the mast. Inspect if they are
operated smoothly.
19. CHECK BEFORE WORKING
FX915
