Clarke BOOST 28 User Manual

Clarke
®

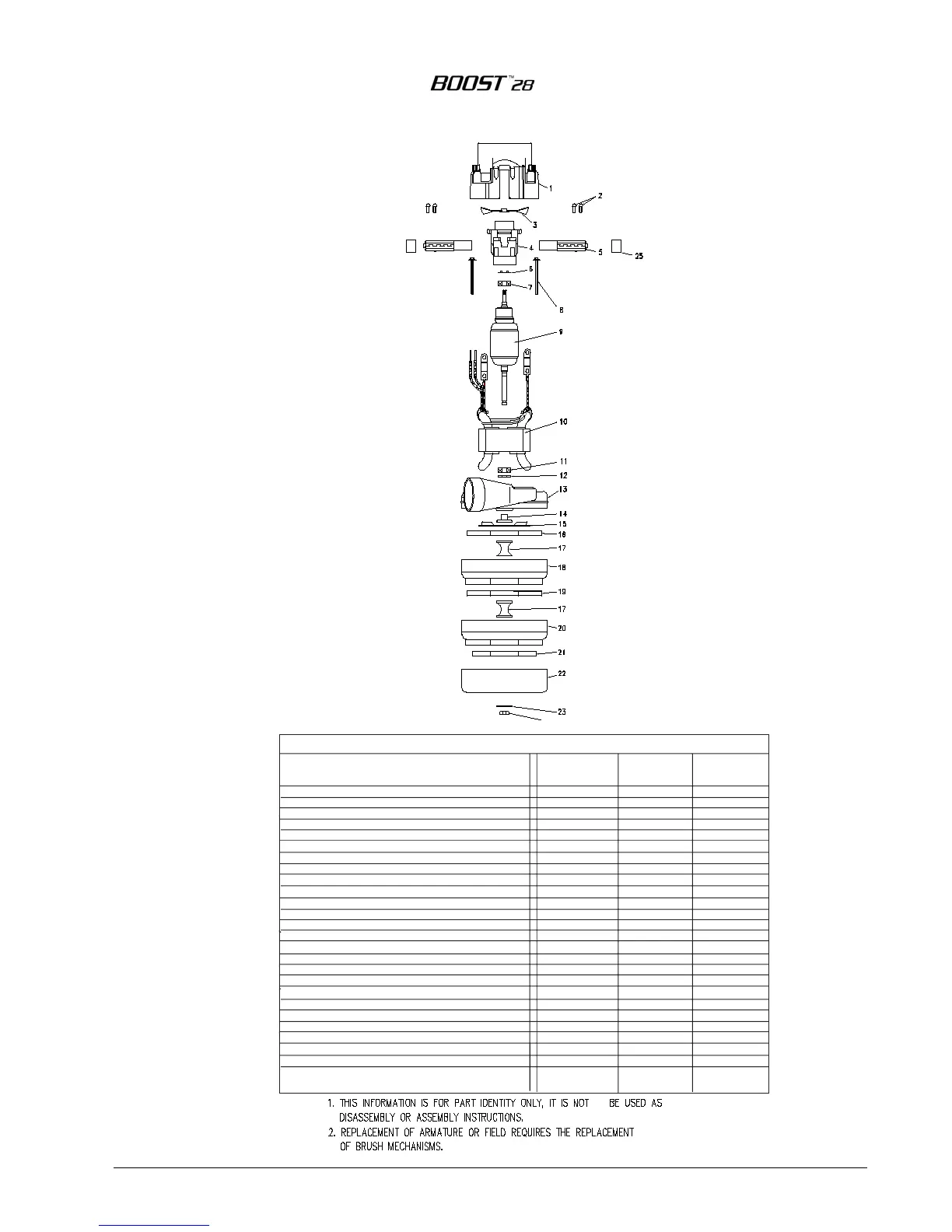

Vacuum Motor Drawing and Parts List 9/05
PARTS LIST
1. HOUSING 1 50994A 50994A
2. SCREW 4 * *
3. FAN 1 50995A 50995A
4. COMM END BRACKET 1 * *
5. BRUSH MECHANISM 2 50996A 50996A
6. LOAD SPRING 1 * *
7. BALL BEARING 1 * *
8. SCREW 2 * *
9. ARMATURE 1 * *
10. FIELD 1 * *
11. BALL BEARING 1 * *
12. NEOPRENE WASHER 1 59803A 59803A
13. FAN END BRACKET 1 * *
14. SPACER 1 * *
15. FAN 1 50997A 50997A
16. ROTATING FAN 1 53914A
17. SPACER 2 50999A
1 50999A
18. STATIONARY FAN 1 51043A 51043A
19. ROTATING FAN 1 51044A 51044A
20. STATIONARY FAN 1 51045A NA
21. ROTATING FAN 1 50998A NA
22. FAN SHELL 1 51046A 51047A
23. WASHER 1 * *
24. NUT 1 * *
25. INSULATOR BRUSH CAP 2 51048A 51048A
REQUIRED
DESCRIPTION
CLARKE CLARKE
51049A
51050A
TO
Clarke
®
Operator's Manual - BOOST 28 Page -49-

Clarke BOOST 28 Specifications

General

Solution Tank Capacity	28 gal (106 L)
Recovery Tank Capacity	30 gal (114 L)
Cleaning Path	28 inches
Brush Motor	1.5 HP
Power Source	Battery
Weight	490 lb (w/o batteries)
Tank Capacity	28 gallons
