USE
WARNING!
On some points of the machine there are some
adhesive plates indicating:
DANGER –
WARNING –
CAUTION –
CONSULTATION –
While reading this Manual, the operator must pay particular
attention to the symbols shown on the plates.
Do not cover these plates for any reason and immediately replace
them if damaged.
BATTERY CHECK/SETTING ON A NEW MACHINE
WARNING!
The electric components of the machine can
be seriously damaged if the batteries are either
improperly installed or connected. The batteries
must be installed by qualied personnel only. Set
the function electronic board and the built-in battery
charger according to the type of batteries used (WET
or AGM batteries).
Check the batteries for damage before installation.
Disconnect the battery connector (A, Fig. 5) and the
battery charger plug (I).
Handle the batteries with great care.
Install the battery terminal protection caps supplied
with the machine.
The machine requires two 12 V batteries, connected according to
the diagram (A, Fig. 6).
The machine can be supplied in one of the following modes:
Batteries (WET or AGM) already installed and chargedA)
Check that the batteries are connected to the machine with 1.
the connector (A, Fig. 5).
Insert the ignition key (B) and turn it to "I".2.
If the green warning light (C) turns on, the batteries are
charged.
If the yellow (D) or red warning light (E) turns on,
the batteries must be charged (see the procedure in
Maintenance chapter).
Without batteriesB)
Buy appropriate batteries (see the Technical Data 1.
paragraph).
For battery choice and installation, apply to qualied battery 2.
Retailers.
Set the machine and the battery charger according to the 3.
type of batteries (WET or AGM), as shown in the next
paragraph.

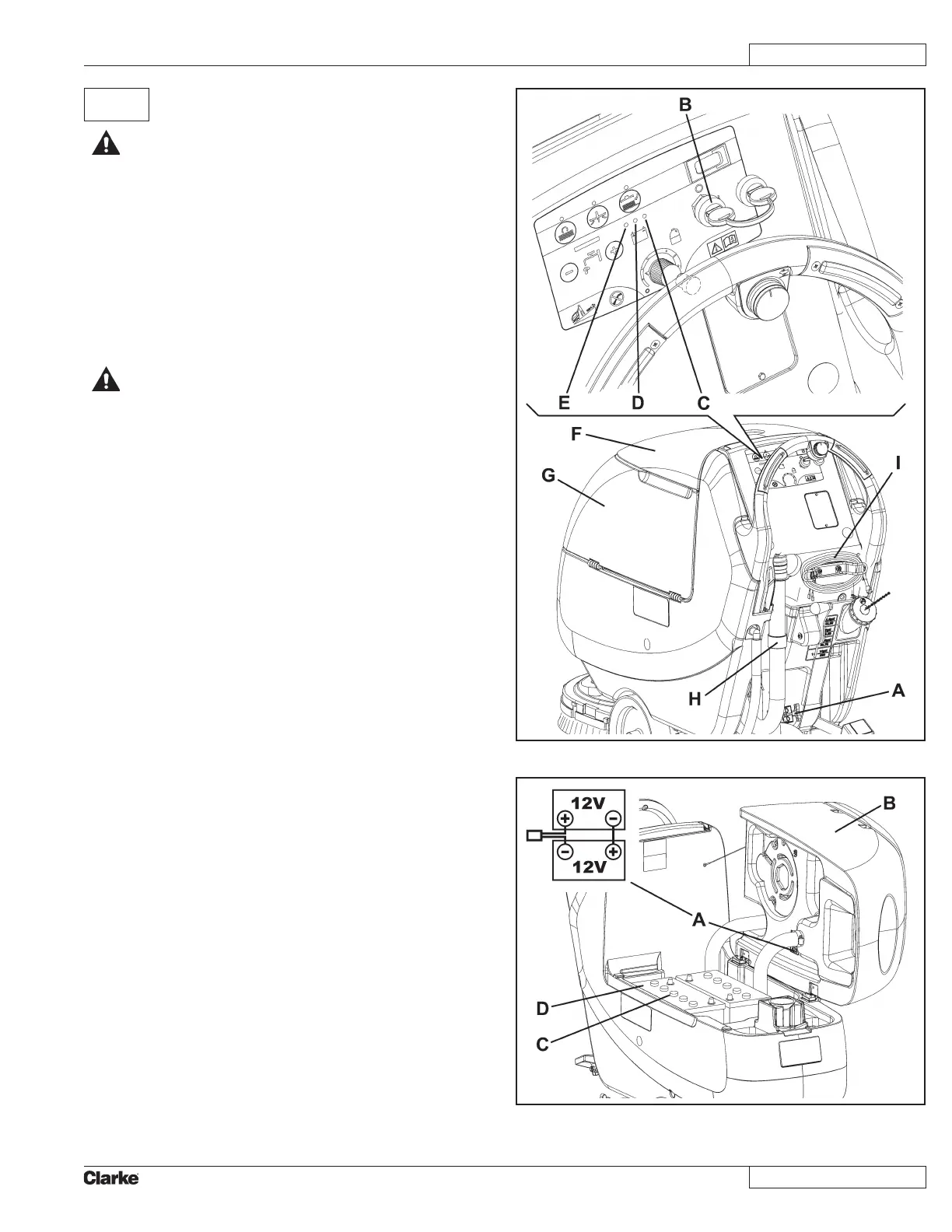

Figure 5
