Operator’s Manual - FOCUS
®
II L17 - S20 - L20 - L20 Cyl. - BOOST
®
L20
CONTROL PANEL

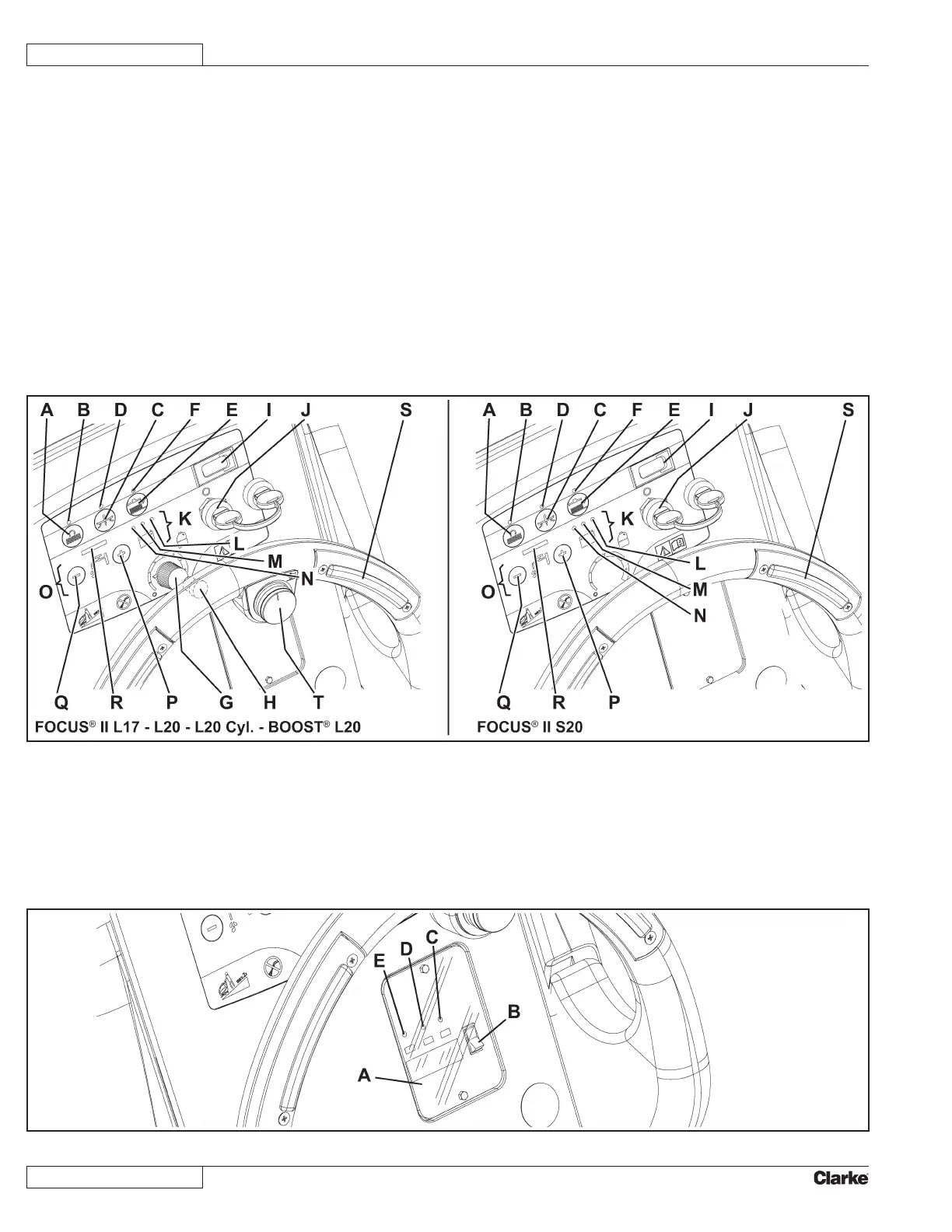

(See Fig. 3)
Brush/pad-holder and vacuum system switchA.
Brush/pad-holder and vacuum system switch warning lightB.
Vacuum system switchC.
Vacuum system switch warning lightD.
Brush/pad-holder release switchE.
Brush/pad-holder release switch warning lightF.
Detergent ow control knob (optional)G.
Reverse gear switchH.
Hour meter (optional)I.
Ignition key (0 - I)J.
Battery charge indicatorK.
Charged battery warning light (green)L.
Semi-discharged battery warning light (yellow)M.
Discharged battery warning light (red)N.
Washing water ow control switchesO.
Flow increase switchP.
Flow decrease switchQ.
Washing water ow indicatorR.
Brush/forward gear switch (*). Brush switch (***)S.
Speed adjuster (*)T.
(*) Only for FOCUS II L17 - L20 - L20 Cyl. - BOOST L20
(**) Only for machines with Chemical Mixing System (optional)
(***) Only for FOCUS II S20
Electronic battery chargerA.
Lead (WET) or AGM (GEL) battery selectorB.
Green warning light (ON: the battery charger is on and C.
batteries are charged)
Yellow warning light (ON: the battery charger is on and D.
batteries are semi-discharged)
Red warning light (ON: the battery charger is on and it is E.
charging the batteries)
Figure 4
Figure 3
BATTERY CHARGER DATA INSPECTION WINDOW
(See Fig. 4)
B ENGLISH.indd 10 14/04/2010 12.48.02

Clarke Focus II Specifications

General

Cleaning Path	20 inches
Power Source	Battery
Brush Motor	0.75 hp
Battery Voltage	24 V
Voltage	36V
Vacuum Motor	0.5 hp
