Operator’s Manual - FOCUS
®
II L17 - S20 - L20 - L20 Cyl. - BOOST
®
L20
15
Cylindrical brush installation/removal (only for FOCUS
II L20 Cyl.)
Turn the ignition key (A, Fig. 11) to "0".1.
Lift the cylindrical brush deck by pressing the pedal (B).2.
Turn the knobs (A, Fig. 12) and remove the doors (B) by 3.
pushing them downwards and pressing on the knobs.
Install the cylindrical brushes (C).4.
The cylindrical brushes can be installed on either sides.
Install the doors (B) and fasten them with the knobs (A).5.
To remove the cylindrical brushes, perform steps 1 to 5 in the 6.
reverse order.

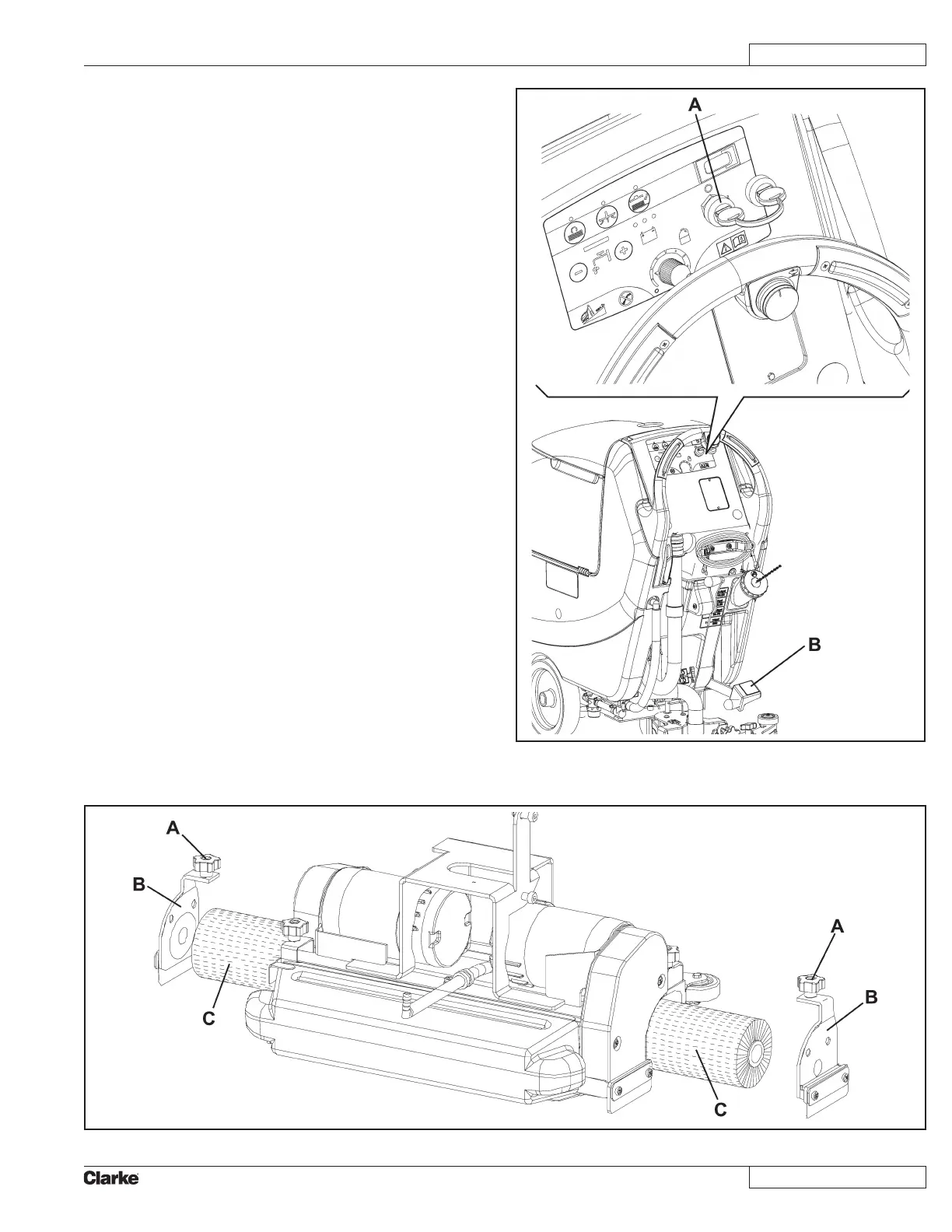

Figure 11
Figure 12
B ENGLISH.indd 15 14/04/2010 12.48.18

Clarke Focus II Specifications

General

Cleaning Path	20 inches
Power Source	Battery
Brush Motor	0.75 hp
Battery Voltage	24 V
Voltage	36V
Vacuum Motor	0.5 hp
