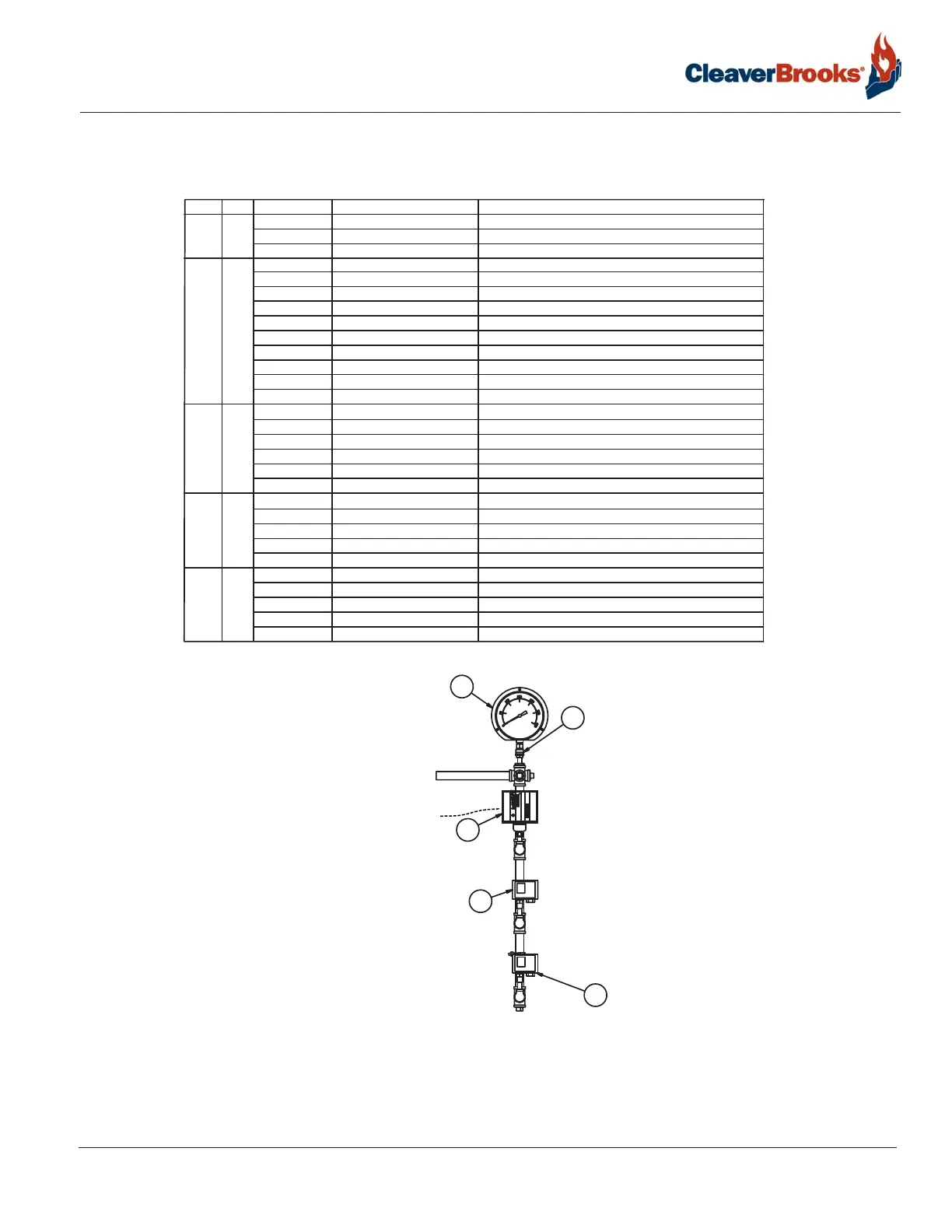

Pressure Controls, Steam
6.10 — Pressure Controls, Steam
ITEM
QTY
PART NUMBER DESCRIPTION USAGE
71
941-00055-000
BALL VALVE
DESIGN PRESSURES  200 PSIG
941-02656-000
BALL VALVE
DESIGN PRESSURE = 250 PSIG
941-00318-000
GLOBE VALVE
DESIGN PRESSURE = 300 PSIG
81
850-00230-000
PRESSURE GAUGE
R.V. SETPOINT: 0 PSI - 20 PSI (55" - 78" DIA)
)
850-00222-000
PRESSURE GAUGE
R.V. SETPOINT: 135 PSI - 200 PSI (55" - 78" DIA)
850-00320-000
PRESSURE GAUGE
R.V. SETPOINT: 205 PSI - 265 PSI (55"
- 78" DIA)
850-00400-000
PRESSURE GAUGE
R.V. SETPOINT: 270 PSI - 400 PSI (55" - 78" DIA)
13
1
817-04866-000
PRESSURE TRANSMITTER
DESIGN PRESSURE = 15 PSIG (HAWK)
817-04867-000
PRESSURE TRANSMITTER
DESIGN PRESSURE = 150PSIG (HAWK)
817-09908-000
PRESSURE TRANSMITTER
DESIGN PRESSURES = 200 PSIG, 250 PSIG, 300PSIG (HAWK)
817-00251-000
MODULATING CONTROL
DESIGN PRESSURE = 15 PSIG (NON-HAWK)
817-00204-000
MODULATING CON
TROL
DESIGN PRESSURE = 150 PSIG (NON-HAWK)
817-00234-000
MODULATING CONTROL
16 1
817-04095-000
OPERATING LIMIT, 1/4", 15 PSI
DESIGN PRESSURE = 15 PSIG
817-04093-000
OPERATING LIMIT, 1/4", 150 PSI
DESIGN PRESSURE = 150 PSIG
817-04883-000
OPERATING LIMIT, 1/4", 200 PSI
DESIGN PRESSURE = 200PSIG
817-04147-000
OPERATING LIMIT, 1/4", 250 PSI
DESIGN PRESSURE = 250 PSIG
817-04091-000
OPERATING LIMIT, 1/4", 300 PSI
DESIGN PR
ESSURE = 300 PSIG
817-04094-000
HIGH LIMIT, 1/4", 15 PSI
17 1
817-04092-000
HIGH LIMIT, 1/4", 150 PSI
817-04148-000
HIGH LIMIT, 1/4", 200 PSI
817-04149-000
HIGH LIMIT, 1/4", 250 PSI
817-04073-000
HIGH LIMIT, 1/4", 300 PSI
850-00264-000
PRESSURE GAUGE
R.V. SETPOINT: 0 PSI - 20 PSI (83" - 138" DIA)
850-00104-000
PRESSURE GAUGE
R.V. SETPOINT: 135 PSI - 200 PSI (83" - 138" DIA)
850-00150-000
PRESSURE GAUGE
R.V. SETPOINT: 205 PSI - 265 PSI (83" - 138" DIA)
850-00172-000
PRESSURE GAUGE
R.V. SETPOINT: 270 PSI - 400 PSI (83" - 138" DIA)
850-00221-000
PRESSURE GAUGE
R.V. SETPOINT: 25 PSI - 130 PSI (55" - 78" DIA
850-00103-000
PRESSURE GAUGE
R.V. SETPOINT: 25 PSI - 130 PSI (83" - 138" DIA)
DESIGN PRESSURES = 200 PSIG, 250 PSIG, 300PSIG (NON-HAWK)
DESIGN PRESSURE = 15 PSIG
DESIGN PRESSURE = 150 PSIG
DESIGN PRESSURE = 200PSIG
DESIGN PRESSURE = 250 PSIG
DESIGN PRESSURE = 300 PSIG
13
16
17
8
7
MODULATING CONTROL
(NON-HAWK) SHOWN
