CleaverBrooks CBEX-DE User Manual

750-392
CBEX-DE
1-3
Component Locations
1.2 — Component Locations

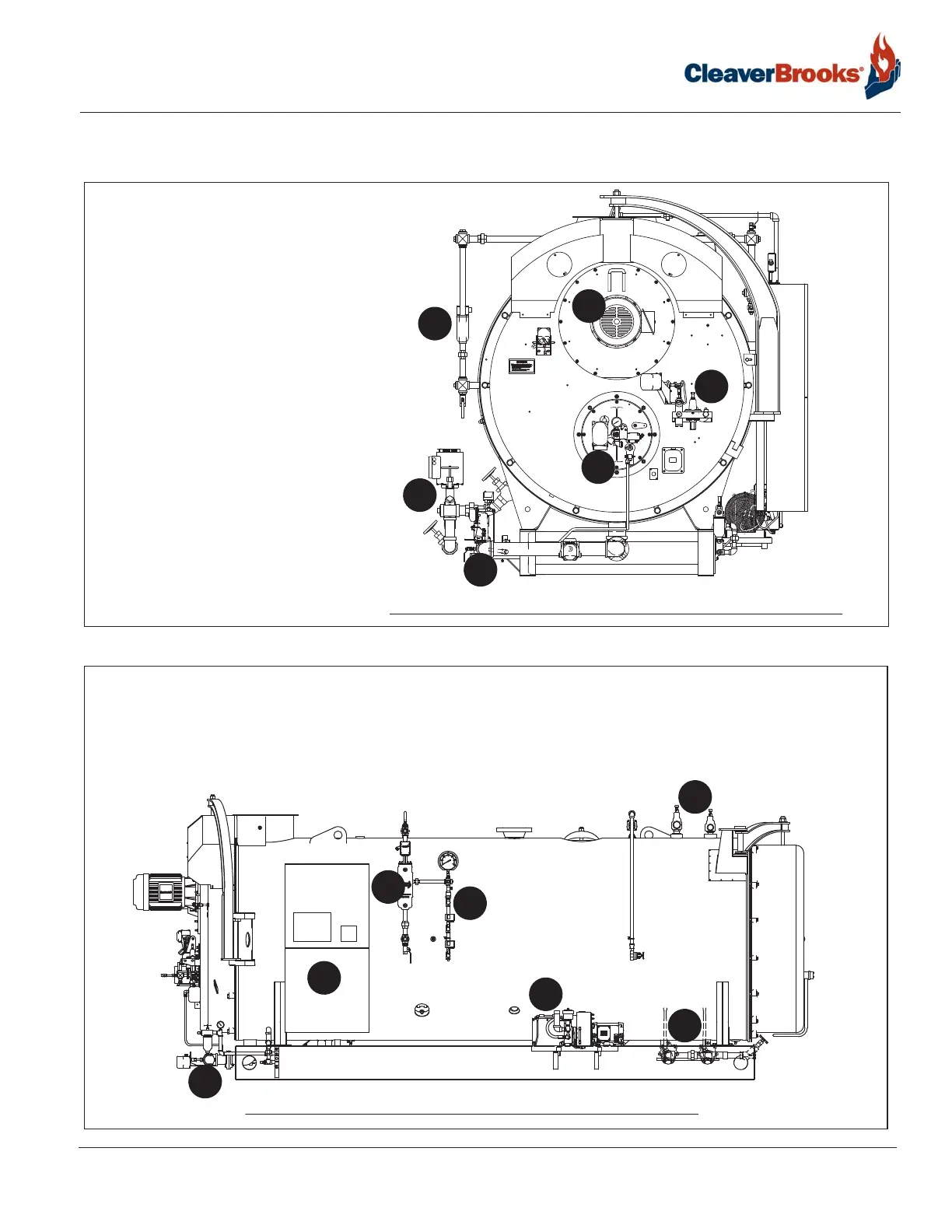

FIGURE 1-2. Boiler front view (67” boiler - configurations may vary)
1. Blower assembly
2. Feedwater piping
3. Main gas train
4. Burner drawer
5. Oil system
6. Aux low water cutoff
1
2
3
4
5
6
FIGURE 1-3. Boiler side view (67” boiler - configurations may vary)
1
7
8
9
10
11
12
13
7. Control panel/entrance panel
8. Low water cutoff
9. Pressure controls
10. Safety valves
11. Oil supply piping
12. Air compressor
13. Bottom blowdown piping
