Cleco mPro300GCD-STO User Manual

Apex Tool Group P2552HW | 2021-04 115
8
INT
12 Connections, Cable Length

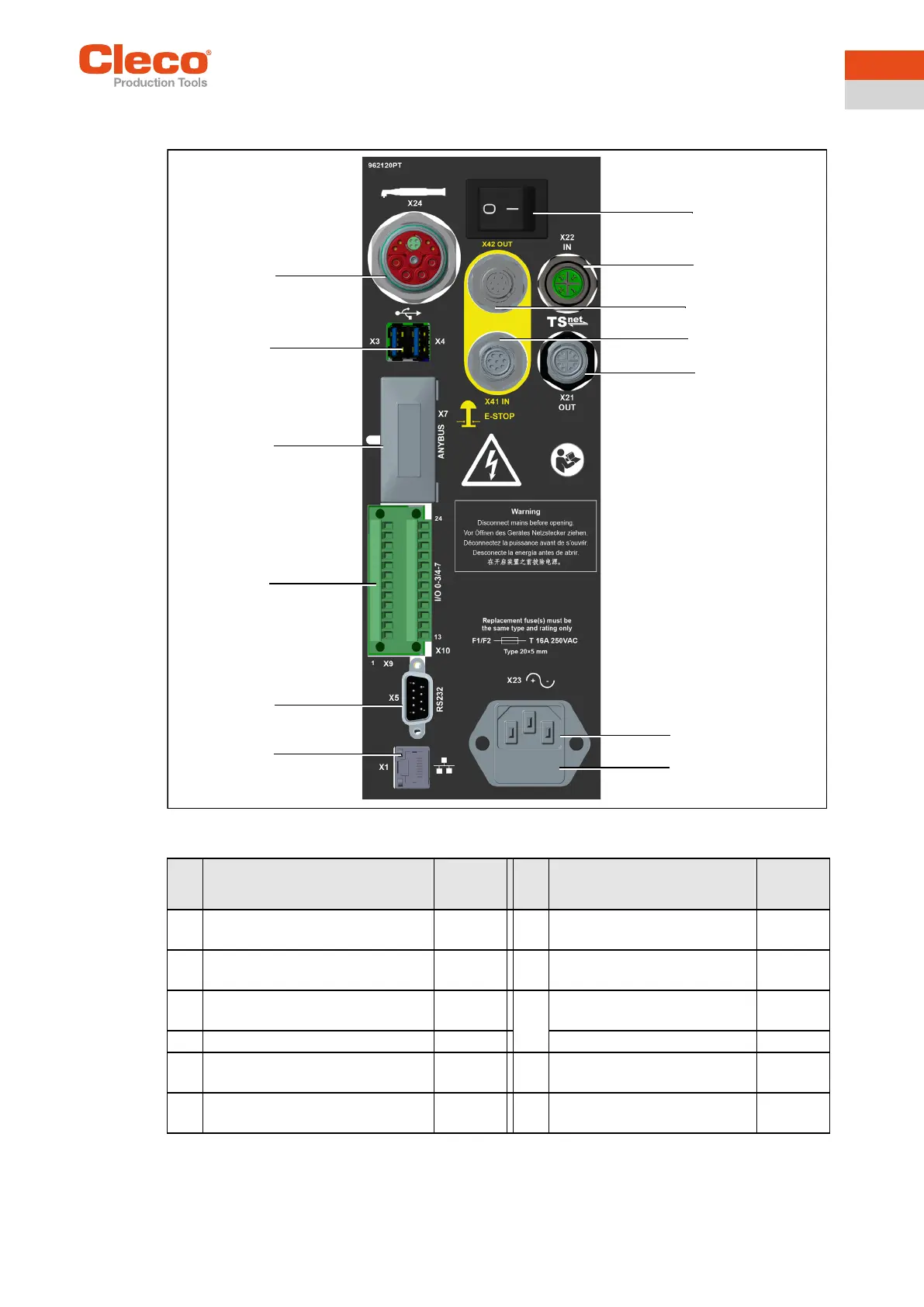

Fig. 12-1: Connection positions
Pos. Designation
Max. cable
length
<m>
Pos. Designation
Max. cable
length
<m>
X1 Ethernet
RJ45 10/100 BASE-T Connector #1
100 X22 System Bus Connector
TSnet IN
60
X3
X4
USB V2.0 Port #1
USB V2.0 Port #2
30
30
X23 Power supply connection –
X5 Serial RS232-1 Connector #1 30 X24 Tool Connector NeoTek
Serie 30E(…)N…/50E(…)N…
45
X7 Anybus CC – Fieldbus 30 Serie 70E(…)N…
1
1 When using tool Series 70:
≤3 m Tool Cable: can be used with a maximum of 25 m Extension Cable.
≤6 m Tool Cable: can be used with a maximum of 20 m Extension Cable.
Tool cables over 6 m must not be extended.
26
X9
X10
I/O Connector
I/O Connector
30 X42 Emergency-Stop OUT 60
X21 System Bus Connector
TSnet OUT
60 X41 Emergency-Stop IN
60
X3
X4
X7
X5
X1
X23
X21
X22
X9
X10
X24
On/Off
Fuse
X42
X41
