81

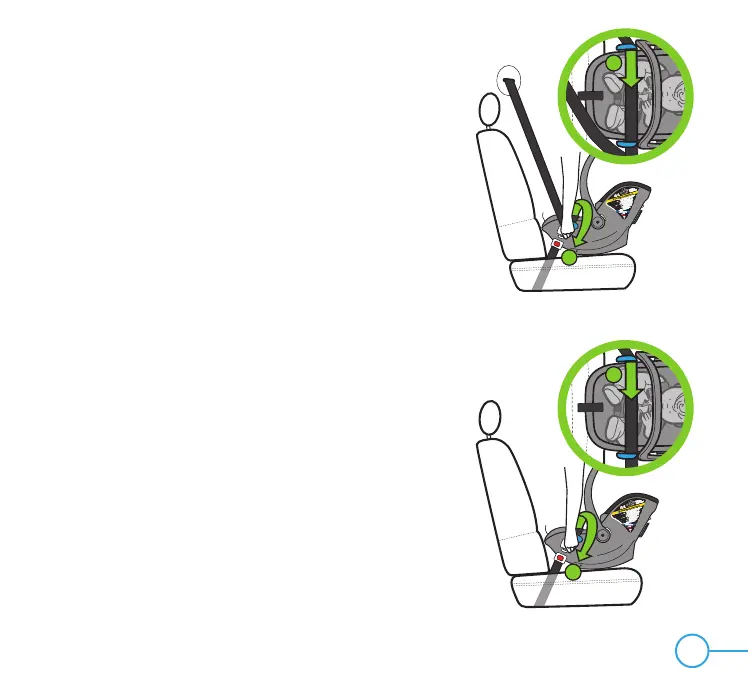

Step 7
If installing with lap/shoulder belt:
Route lap portion of the vehicle belt through
both blue Vehicle Lap Belt Guides (1) and
buckle vehicle belt as shown in Figure 77a.
DO NOT pull the vehicle belt all the way out
during this step.
If installing with lap-only belt:
Route the lap belt through both blue Vehicle
Lap Belt Guides and buckle vehicle belt as
shown in Figure 77b.
Figure 77a
Figure 77b
2
2
1
1
