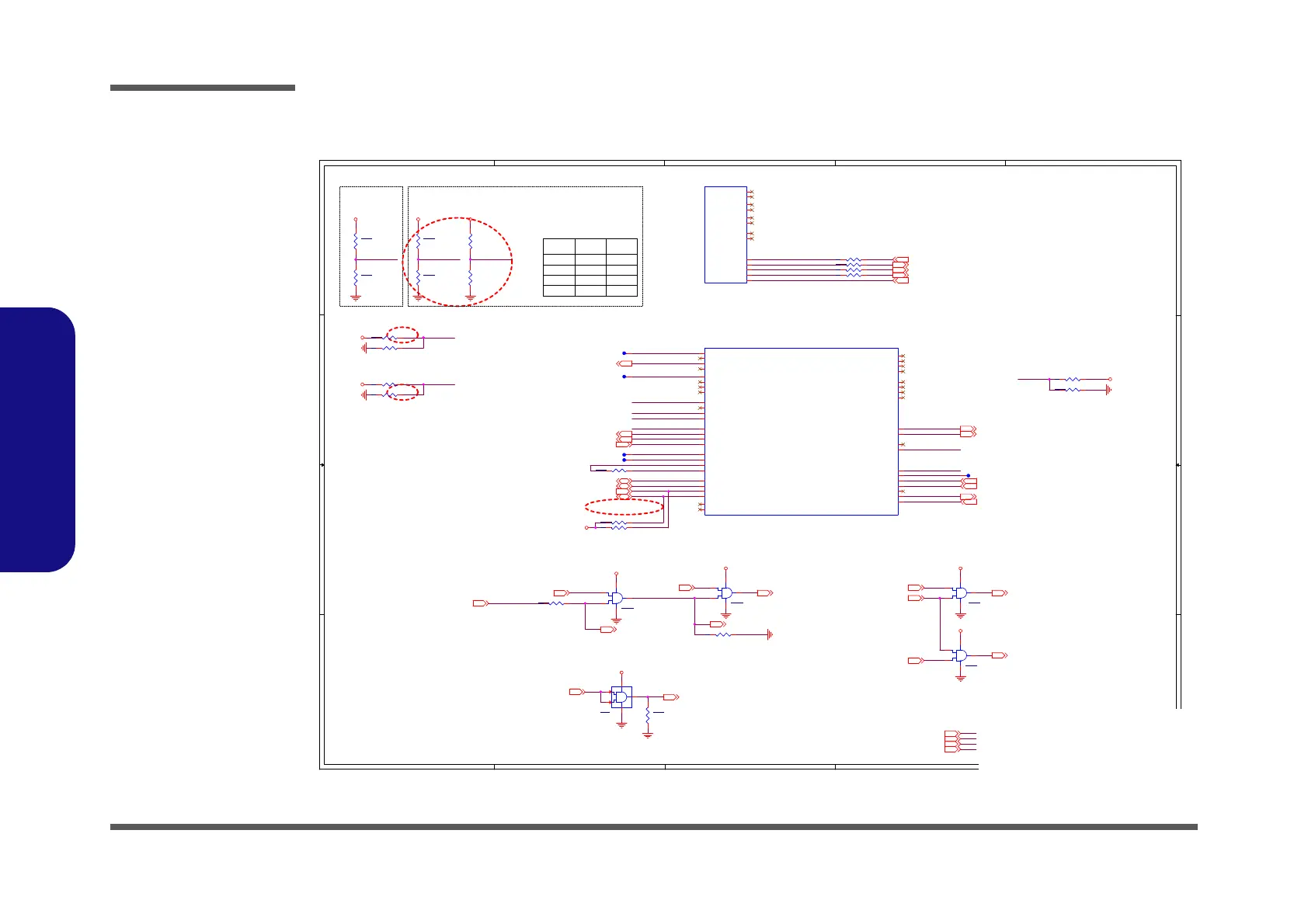

B.Schematic Diagrams
PCH I
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
GPP_B22
BOOT BIOS STRAP BIT BBS
HIGH=LPC
LOW=SPI (DEFAULT)
(INTERNAL WEAK PD)
Place in BOT and cover near
GPP_B18
NO REBOOT STARP
HIGH=Enable
LOW=Disable (DEFAULT)
(INTERNAL WEAK PD)
EC DELAY ALL_SYS_PWRGD 200ms=PM_PWROK
TO VR_ON & EC
BUF_PLT_RST#
Zo=50ohm
炻
L<6"
Zo=50ohm
炻
L<15"
Zo=50ohm
炻
L<10"
20191022 W/ PD Del
TBT_DET#
HIGH=USB3.1 (W/O TBT)
LOW=TBT
20191207 R272 change to 100K_04
20191207 R714 change to unstuff
BOARD_ID1
0=PB50xx
1=PB70xx
DGPU BOARD_ID (GPP_C10,GPP_A23)
00=PBxxDD2
10=PBxxDF1
11=PBxxDF2
BOARD_ID1 GPP_A23 DGPU_Model
00
0
0
1
1
11
G1-B
N/A
G1R
G2R
20191230 ADD BOARD_ID
GPP_B22
TPM_DET
UART2_CTS#
UART2_RTS#
UART2_TXD
UART2_RXD
GPP_H21
GPP_B18
VCCIO_PWRGD
VCORE_PG
GPP_A23
PCH_2_CPU_TRIGGER_R
PCH_XDP_PREQ#_R
PCH_XDP_PRDY#_R
H_TRST#_R
GPP_C15
TBT_DET#
BOARD_ID1
BOARD_ID2
BOARD_ID2
BOARD_ID1
GPP_A22
GPP_H21
TBT_DET#
GPP_C15
GPP_A23
3.3VS
VDD3
VDD3
3.3VS
3.3VS 3.3VS
VDD3
VDD3
3.3VA
3.3VS
3.3VS
3.3VS
GC6_FB_EN_PCH[32,42]
SB_BLON [10]
TP_CLK_PCH_I2C0[58]
TP_DAT_PCH_I2C0[58]
TPM_DET[43]
VCCIO_PWRGD[63]
ALL_SYS_PWRGD [4,10,42,64]
PM_PCH_PWROK [36]
PM_PWROK[42]
SYS_PWROK [36]VCORE_PG[64]
SMI#_GPP_B20[37]
CPU_2_PCH_TRIGGER [7]
H_PREQ# [4]
PCH_2_CPU_TRIGGER [7]
H_TRST# [4]
H_PRDY# [4]
BUF_PLT_RST# [42,43,45,46,54,55,58]
PLT_RST#[32,33]
I2C1_SDA[52]
I2C1_SCL[52]
GPP_H19_CR_AUX33 [58]
SUSC# [61]
SUSBC_EN[42]
SUSC#_PCH[36,42]
AMP_TYPE_DET [58]
PEX_WAKE# [14]
3.3VS[8,9,10,11,12,28,32,33,35,36,37,38,42,43,44,45,47,49,54,56,57,58,59,63,64,70]
VDD3[4,10,28,32,33,34,35,36,39,42,45,54,55,56,57,59,60,61,62,63,64,65,67,69,70,71]
3.3VA[4,32,33,35,36,39,43,59,61,62,63]
3.3V[3,10,13,14,47,50,51,52,53,58,59,61,63,64,65]
GPP_H20_CR_MV33 [58]
EAPD_MODE [44]
SUSB#_PCH[36,42]
SUSB# [10,46,59]
GPU_EVENT#[28]
Title
Size Document Number R ev
Date: Sheet
of
6-71-PB5D0-D02
D02
[41] PCH J,K I2C/GPIO
A3
41 84Monday, December 30, 2019
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
PB50DF2
Title
Size Document Number R ev
Date: Sheet
of
6-71-PB5D0-D02
D02
[41] PCH J,K I2C/GPIO
A3
41 84Monday, December 30, 2019
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
PB50DF2
Title
Size Document Number R ev
Date: Sheet
of
6-71-PB5D0-D02
D02
[41] PCH J,K I2C/GPIO
A3
41 84Monday, December 30, 2019
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
PB50DF2
R293
100K_04
PB70xx BOARD ID
R823 0_04
R669 *0_04
R276 10K_04
W/ TBT (TBT_DET#)
R297 10K_04
R219 *0_04
R295 *R0_06
R283
10K_04
OPTION_DGPU BOARD_ID0_G1-B = stuff
U57B
74LVC08APW
14
6
5
4
7
R751
100K_04
U54
74AHC1G08GW
1
2
5
4
3
R824 *100K_04
R827 10K_04
R819 *10K_04
R678 *0_04
R279
100K_04
OPTION_DGPU BOARD_ID0_G2R
ˣ
G1R=stuff
U57D
74LVC08APW
14
11
13
12
7
R728 10K_04
U57A
74LVC08APW
14
3
2
1
7
R718 *100K_04
R272 100K_04
W/ USB3.1 (W /O TBT)
R775
100K_04
OPTION_DGPU BOARD_ID0_G2R = stuff
11 O F 13
U30K
CML-H QS64
GPP_C22/UART2_RTS#
AW21
GPP_C20/UART2_RXD
BD20
GPP_D13/ISH_UART0_RXD/I2C2_SDA
BE17
GPP_C23/UART2_CTS#
AV21
GPP_D12/ISH_SPI_MOSI/GP_BSSB_DI/GSPI2_MOSI
AN18
GPP_C18/I2C1_SDA
BF21
GPP_C19/I2C1_SCL
BE21
GPP_C13/UART1_TXD/ISH_UART1_TXD
AP21
GPP_D14/ISH_UART0_TXD/I2C2_SCL
BF17
GPP_H20/ISH_I2C0_SCL
AG45
GPP_A17/SD_VDD1_PW R_EN#/ISH_GP7
BD38
GPP_C12/UART1_RXD/ISH_UART1_RXD
AU24
GPP_B16/GSPI0_CLK
BF29
GPP_D16/ISH_UART0_CTS#/CNV_WCEN
BF14
GPP_B15/GSPI0_CS0#
BB26
GPP_A23/ISH_GP5
AV34
GPP_D10/ISH_SPI_CLK/GSPI2_CLK
BB20
GPP_H22/ISH_I2C1_SCL
AH47
GPP_A22/ISH_GP4
AW32
GPP_D15/ISH_UART0_RTS#/GSPI2_CS1#/CNV_WFEN
AR18
GPP_H19/ISH_I2C0_SDA
AH46
GPP_C17/I2C0_SCL
BC22
GPP_C16/I2C0_SDA
BF23
GPP_D23/ISH_I2C2_SCL/I2C3_SCL
BE14
GPP_A19/ISH_GP1
BD34
GPP_D11/ISH_SPI_MISO/GP_BSSB_CLK/GSPI2_MISO
BB16
GPP_A21/ISH_GP3
BA33
GPP_D9/ISH_SPI_CS#/GSPI2_CS0#
BA20
GPP_H21/ISH_I2C1_SDA
AH48
GPP_C21/UART2_TXD
BE20
GPP_C15/UART1_CTS#/ISH_UART1_CTS#
BD21
GPP_A18/ISH_GP0
BF35
GPP_A20/ISH_GP2
BE34
GPP_C14/UART1_RTS#/ISH_UART1_RTS#
AW24
GPP_C11/UART0A_CTS#
AP24
GPP_C8/UART0A_RXD
BE23
GPP_D4/ISH_I2C2_SDA/I2C3_SDA/SBK4/BK4
BE15
GPP_C10/UART0A_RTS#
BA24
GPP_C9/UART0A_TXD
BB24
GPP_B21/GSPI1_MISO
BD30
GPP_B22/GSPI1_MOSI
BA26
GPP_B17/GSPI0_MISO
BD29
GPP_B19/GSPI1_CS0#
AW26
GPP_B18/GSPI0_MOSI
BE30
GPP_B20/GSPI1_CLK
AU26
R714 *10K_04
U57C
74LVC08APW
14
8
10
9
7
10 OF 13
U30J
CML-H QS64
TRIGGER_OUT
AK3
TRIGGER_IN
AK2
CPU_TRST#
AM4
PREQ#
AL2
RSVD4
R32
RSVD3
N32
PRDY#
AM5
RSVD2
AH15
RSVD1
AH14
RSVD8
Y15
RSVD7
Y14
RSVD6
U37
RSVD5
U35
R774
10K_04
OPTION_DGPU BOARD_ID0_G1R
ˣ
G1-B = stuff
R300
10K_04
PB50xx BOARD ID
R679 30.1_1%_04
Sheet 41 of 85
PCH I
