Digital (DXM2)—Troubleshooting Guide
Rev.: 10 March, 2015
44
Geothermal Heating and Cooling
Magnet Test to Shift Reversing Valve into Cooling
B-H

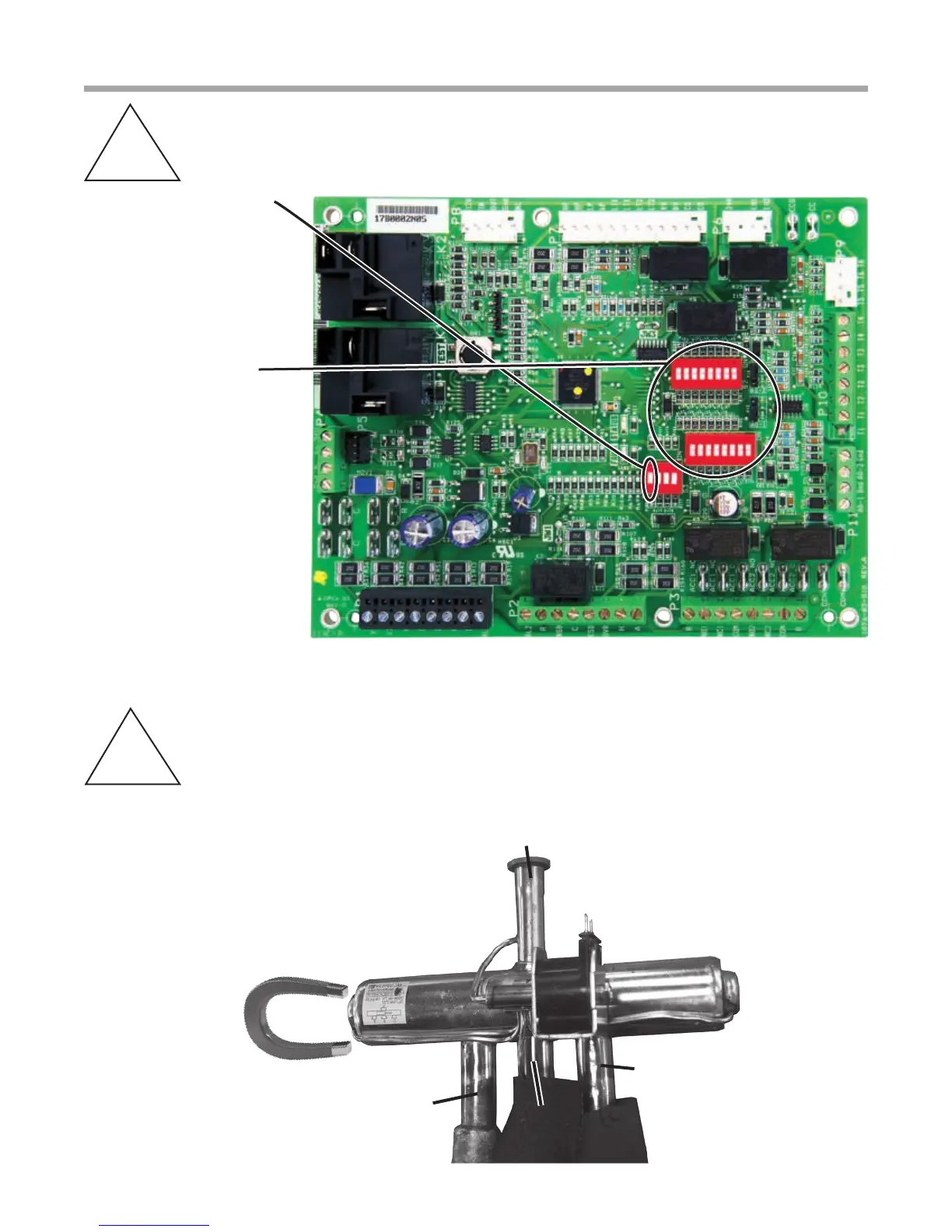

Checking Dipswitches on DXM2
B-G
Use a magnet to pull the internal slide to one side or another.
Verify that dipswitch number 1
is in the ‘On’ position.
If dipswitch number 1 is in the
‘Off’ position, the thermostat
will not function.
Under most residential
situations, dipswitch banks
1 and 2 will all be in the ‘On’
position.
If any of these dipswitches
need to be switched to ‘Off’,
consult the DXM2 AOM
(97B0003N15).
Discharge line
Line to
air coil
Line to
coax
Line to
compressor
(suction)
Strong magnet
placed on air
coil side
To Next Page
