ClimateMaster Tranquility Digital DXM2 - DXM2 Wiring Diagram with Internal Flow Controller - 96 B0005 N60

Tranquility
®
Digital (DXM2)—Troubleshooting Guide
Rev.: 10 March, 2015
60
Geothermal Heating and Cooling

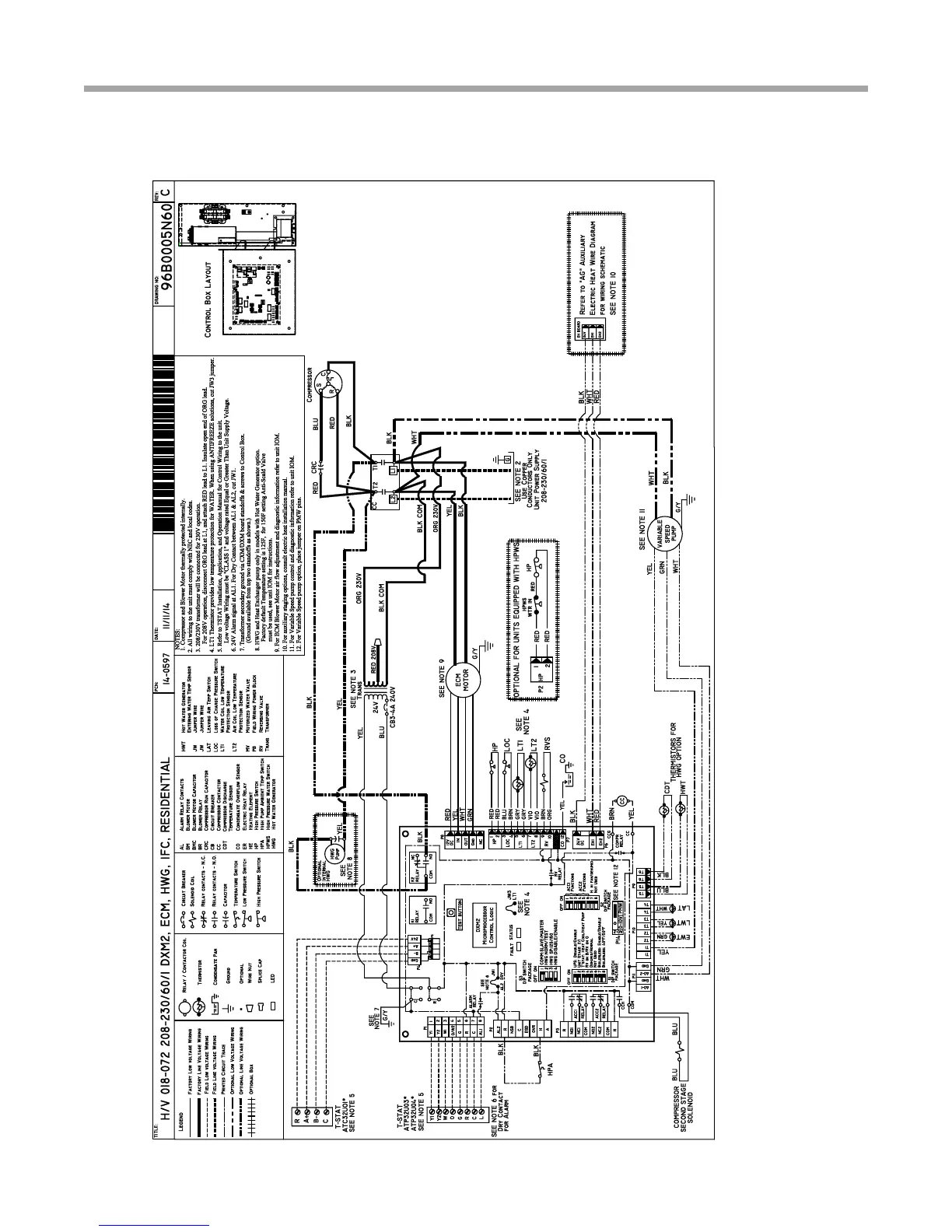

DXM2 Wiring Diagram with Internal Flow Controller -
96B0005N60
This diagram includes typical wiring details but is not applicable to all units. For specic unit wiring, refer to the diagram or the
units’ control panel.
