CONFIGURATION EXAMPLE
To better understand the configuration mode of the local network, the following refrigeration unit will be used
as an example:
Type of unit = WSAT-SC 65D_R-407C
No. of Central Modules = 1
No. of Evaporator Modules = 0
No. of Tandem Modules = 2

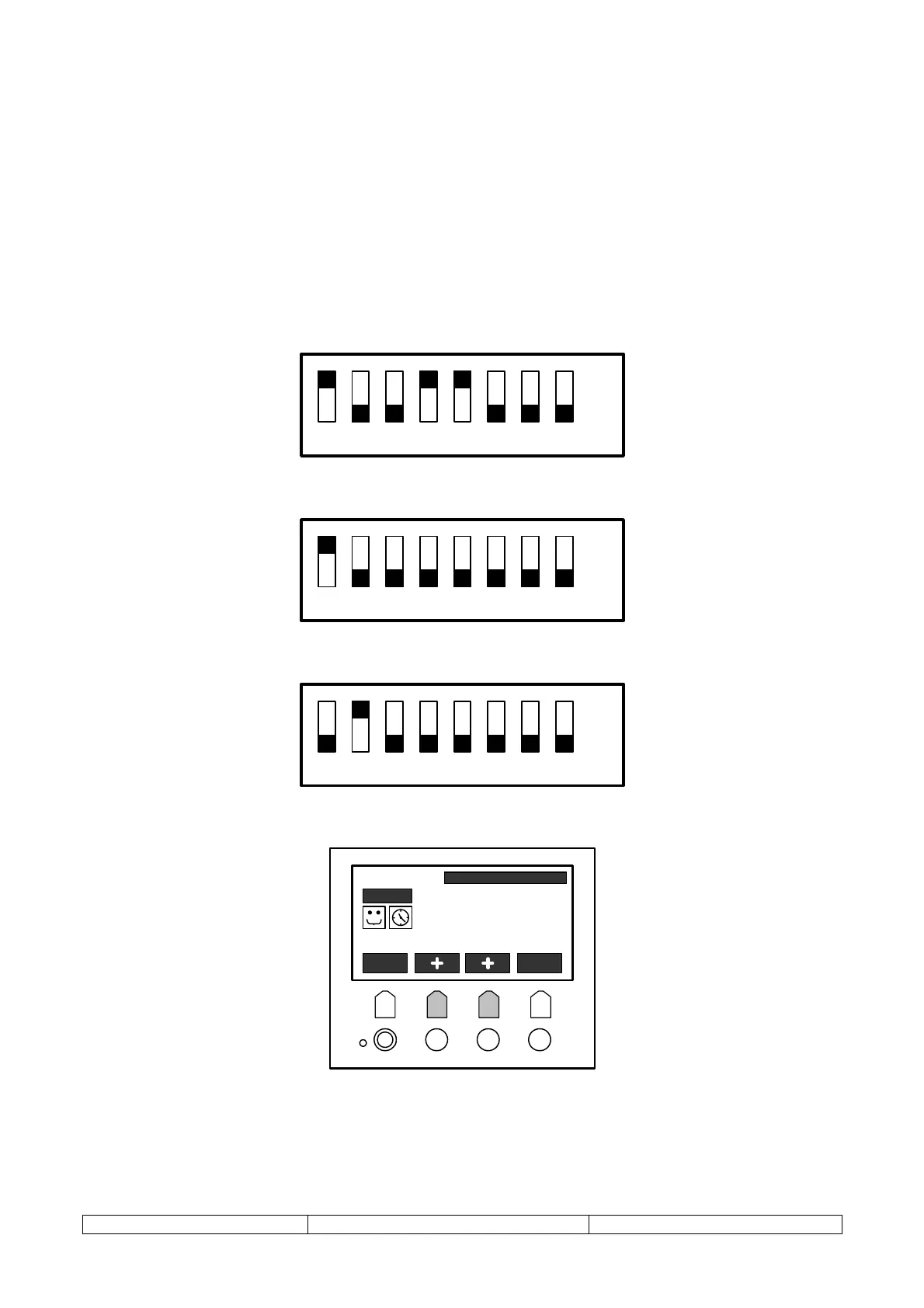

SETTING THE HARDWARE ADDRESS
CENTRAL MODULE. ADDRESS = 25 (See central module address)
OFF
ON
21436587
TANDEM MODULE 1 ADDRESS = 1 (See trio and tandem module address)
OFF
ON
21436587
TANDEM MODULE 2 ADDRESS = 2 (See trio and tandem module address)
OFF
ON
21436587
LOCAL KEYPAD ADDRESS = 26 (See local interface address)
F1 F4F3F2
?
ESC
I
HOME
ENTER
ON
C O O L
STEP:
03 / 12
A D D R E S S E S
Tast. 26
C
ent. 25
