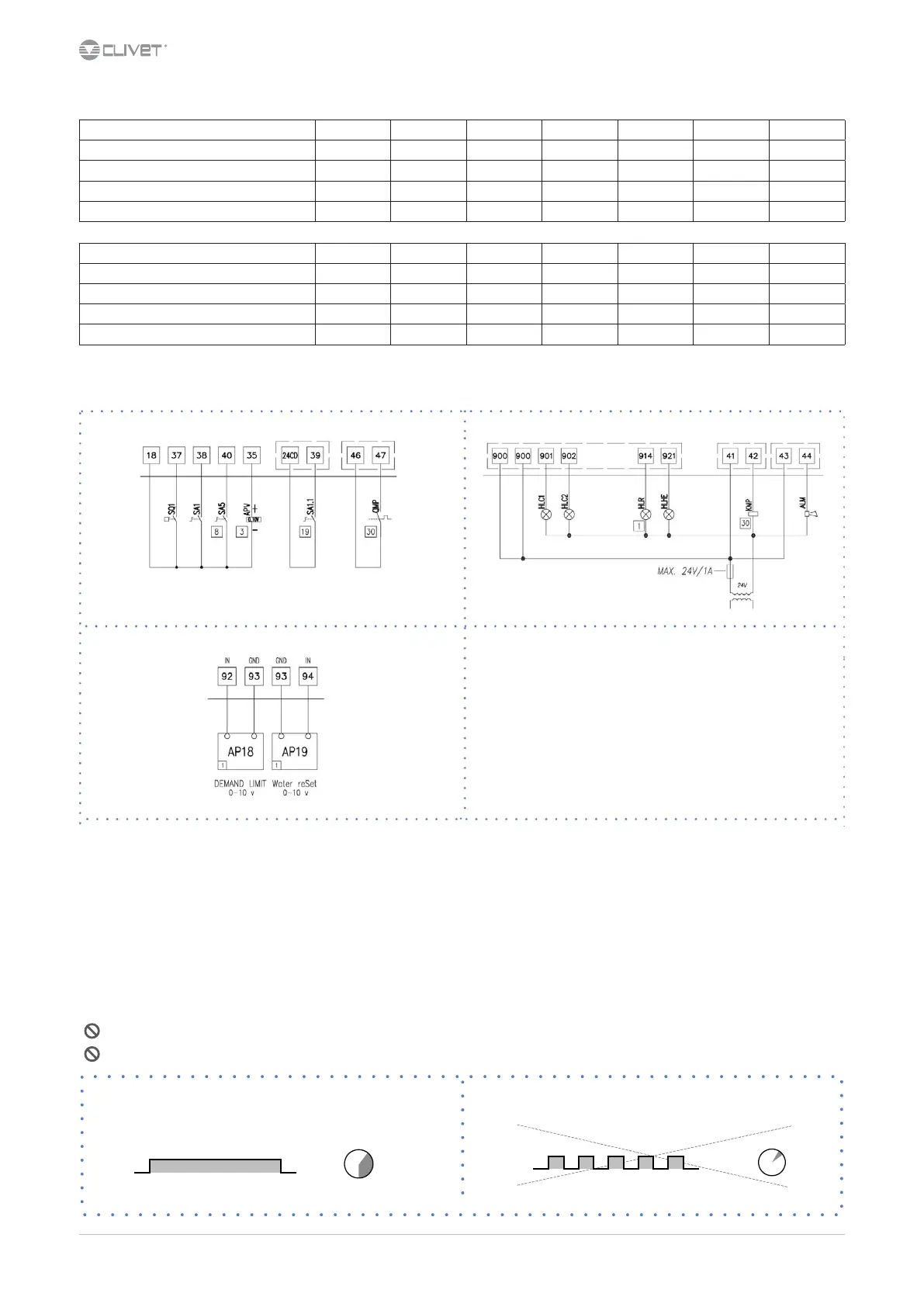

14 WDAT-SL3 FC 200.2-580.2 M08S40E15-01
5.5 Power supply cables section
Size 200.2 210.2 220.2 240.2 260.2 280.2 320.2
Min. cable section Cu (mm²) 1x240 1x240 1x240 1x240 2x150 2x150 2x185
Max. cable section Cu (mm²) 1x240 1x240 1x240 1x240 2x300 2x300 2x300
Max. bar Cu width (mm) 40 40 40 40 50 50 63
Tightening torque (Nm) 20 20 20 20 20 20 -
Size 340.2 360.5 400.2 440.2 500.2 540.2 580.2
Min. cable section Cu (mm²) 2x185 2x185 2x240 2x240 - - -
Max. cable section Cu (mm²) 2x300 2x300 4x185 4x185 4x185 4x185 4x185
Max. bar Cu width (mm) 63 63 63 63 63 63 63
Tightening torque (Nm) -------
5.6 Connections performer by customer
APV analogical output for free-cooling management (valve/fan) QMP ricirculation pump
AP18 Demand limit SA1 remote on/o
AP19 water reset SA1.1 second setpoint
ALM cumulative fault signal SA2.1 compressor enabling
HLC1-2 compressor status signal SA3.1 compressor enabling
HLR alarm signal lamp electrical heater electrical panel selector SQ1 Flow Switch
KMP evaporator pump contactor
5.7 Remote ON-OFF
Do not perform short On O cycles
Do not use the remote On O with thermoregulation function.
A B
A
B
YES NO !
B
A
B
