CLIVET WDAT-SL3 FC Series User Manual

18 WDAT-SL3 FC 200.2-580.2 M08S40E15-01

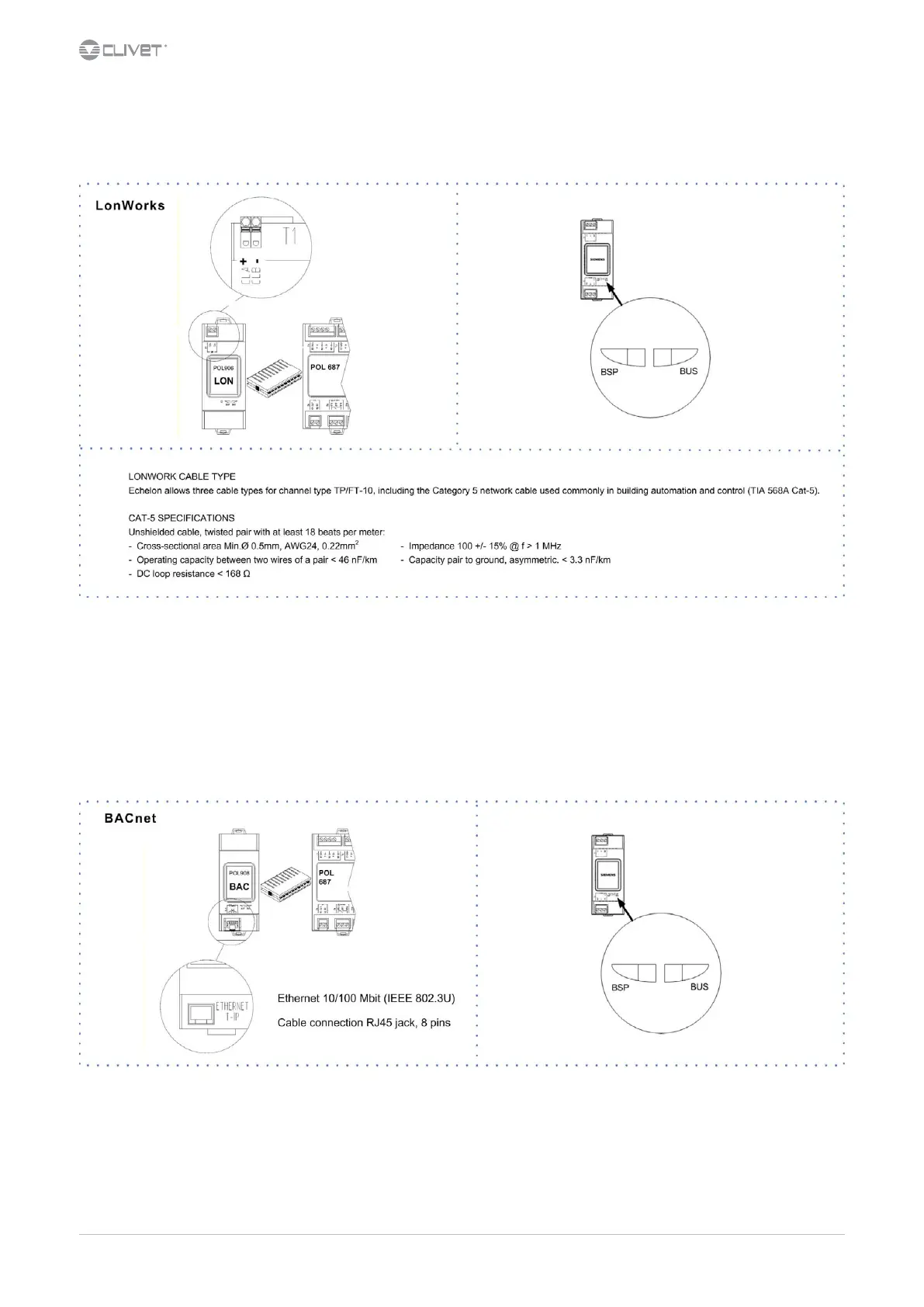

5.11 LonWorks
Option
LED BSP communication with AP1 module LED BUS communication with LonWorks
green communication ok green ready for communication
yellow software ok but communication with AP1
down
yellow startup
red ashing: software error red ashing: communicating not possible
xed: hardware error communication down
5.12 BACnet IP
Option
LED BSP communication with AP1 module LED BUS communication with BACnet
green communication ok green ready for communication
yellow software ok but communication with AP1
down
yellow startup
red ashing: software error red BACnet server down
xed: hardware error restart after 3 sec
