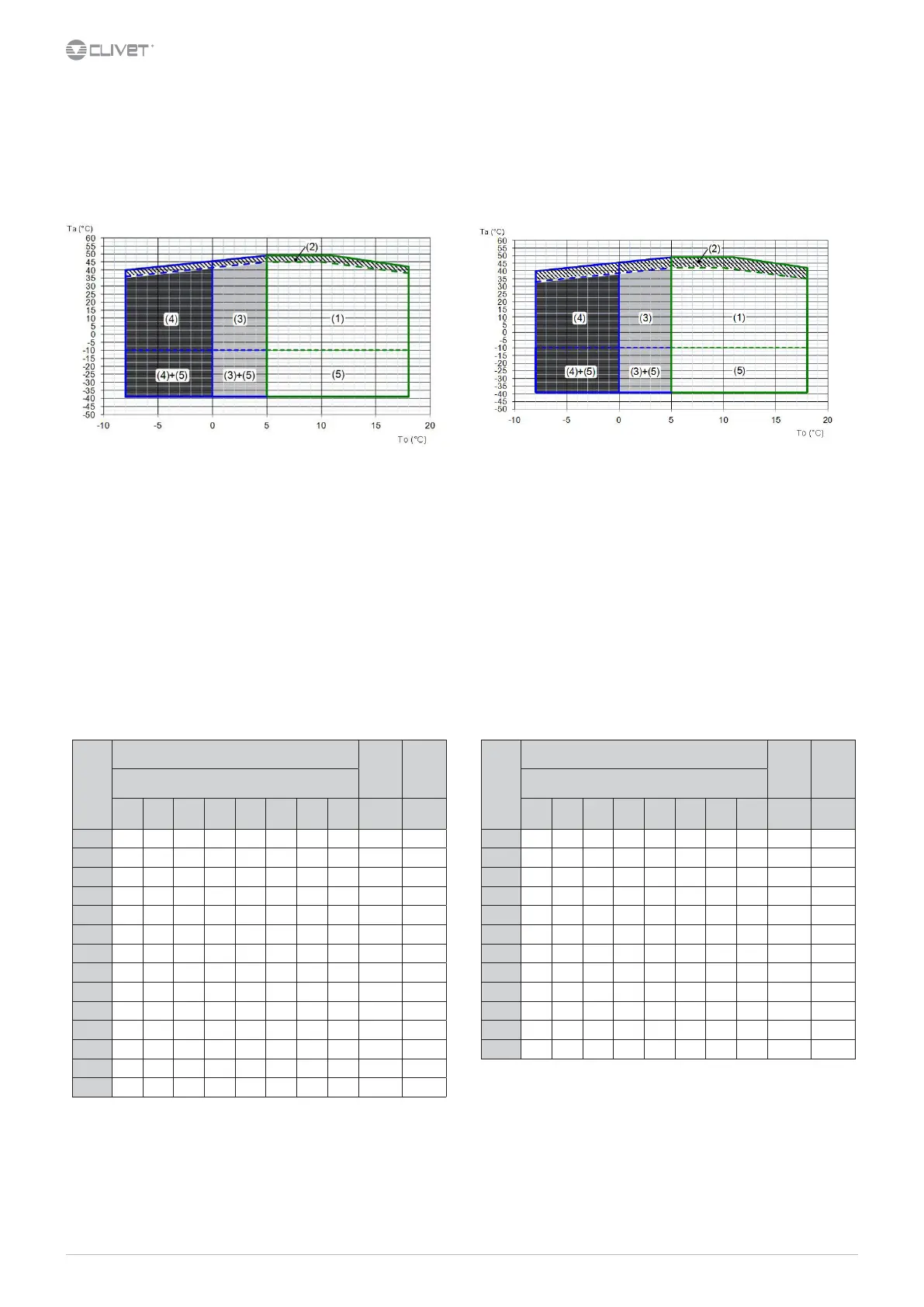

Operating range
FCD / FCI CONFIGURATION
Acoustic conguration: compressor
soundproong (SC)
Acoustic conguration: super-silenced (EN)
Ta (°C) = external exchanger inlet air temperature (D.B.)
To (°C) = internal exchanger outlet water temperature
1. Standard unit operating range at full load
2. Unit operating range with automatic staging of the compressor capacity
3. Unit operating range in ‘B - Low water temperature’ conguration (40% ethylene glycol)
4. Extended of operating range (extremely low water temperature option available on request)
5. Unit operating range as “Unit equipment with outdoor air low temperatures” table
Ta (°C) = temperatura aria entrante allo scambiatore esterno (D.B.)
To (°C) = internal exchanger outlet water temperature
1. Standard unit operating range at full load
2. Unit operating range with automatic staging of the compressor capacity
3. Unit operating range in ‘B - Low water temperature’ conguration (40% ethylene glycol)
4. Extended of operating range (extremely low water temperature option available on request)
5. Unit operating range as “Unit equipment with outdoor air low temperatures” table
Sound levels
Acoustic conguration: compressor
soundproong (SC)
Acoustic conguration: super-silenced (EN)
Size
Sound power level (dB)
Sound
power
level
Sound
pressure
level
Octave band (Hz)
63 125 250 500 1000 2000 4000 8000 dB(A) dB(A)
200.2 107 98 86 92 97 73 76 72 98 77
210.2 107 98 90 92 97 74 76 72 98 77
220.2 108 99 92 92 97 75 77 74 98 77
240.2 108 99 91 94 97 76 77 74 98 77
260.2 108 99 90 93 96 81 79 74 98 77
280.2 110 100 90 94 96 84 81 75 98 77
320.2 110 100 90 94 97 84 81 75 98 77
340.2 111 101 91 95 98 85 82 76 100 78
360.2 111 101 92 96 99 86 82 76 100 79
400.2 112 102 95 95 101 84 82 77 102 80
440.2 112 102 92 101
102 85 82 77 104 82
500.2 113 103 92 95 104 89 84 78 105 82
540.2 113 103 96 94 105 86 85 78 106 83
580.2 113 103 92 96 105 89 84 78 106 83
Size
Sound power level (dB)
Sound
power
level
Sound
pressure
level
Octave band (Hz)
63 125 250 500 1000 2000 4000 8000 dB(A) dB(A)
200.2 96 90 81 89 93 68 66 61 94 73
210.2 96 90 85 88 93 69 66 61 94 73
220.2 96 90 88 88 93 70 66 61 94 73
240.2 97 91 87 90 93 71 68 62 94 73
260.2 97 90 86 89 93 77 72 63 94 73
280.2 98 89 85 90 92 80 74 64 94 72
320.2 99 90 85 90 93 80 75 65 94 73
340.2 99 90 87 91 94 81 76 65 95 74
360.2 99 90 88 92 95 82 76 65 96 74
400.2 100 92 91 91 97 81 76 66 98 76
440.2 100 92 88 98
99 81 75 66 100 78
500.2 100 92 87 90 100 84 78 66 100 78
Sound levels refer to full load units, in test nominal conditions. The sound pressure level refers to 1 m. from the standard unit outer surface operating in open eld. Measures according to UNI EN ISO 9614-2 regulations, with respect to
the EUROVENT 8/1 certication. Data referred to the following conditions.
- internal exchanger water = 12/7 °C
- ambient temperature = 35 °C

