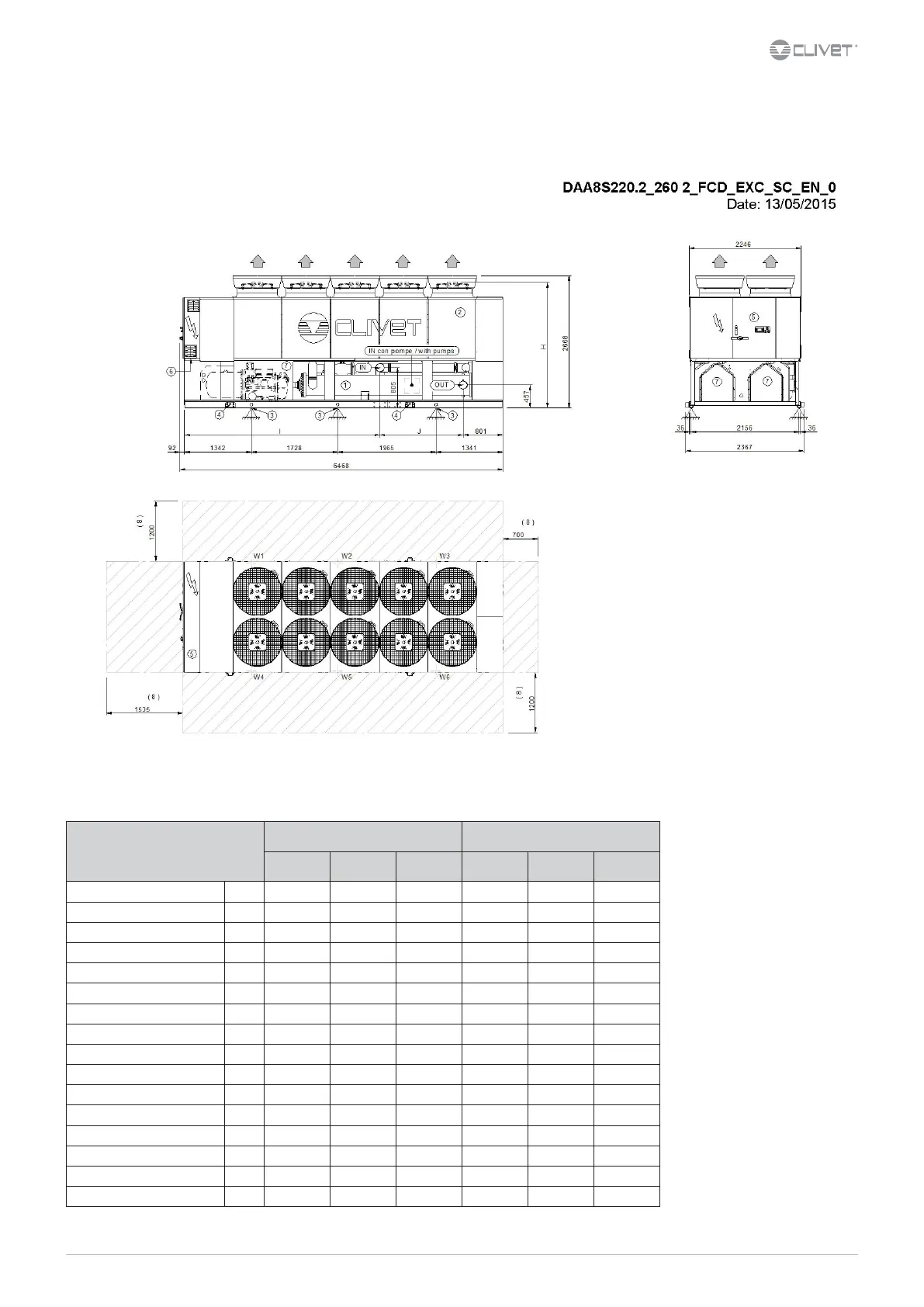

FCD conguration (Direct FREE-COOLING)
Size 220.2-240.2 - 260.2 -
Acoustic conguration: compressor soundproong (SC)
Size 200.2-210.2 - 220.2 -
Acoustic conguration: super-silenced (EN)
Size
SC-EXC EN-EXC
220.2 240.2 260.2 200.2 210.2 220.2
H (without Axitop) mm 2484 2484 2484 2510 2510 2510
I mm 3963 3963 3963 4513 4513 3963
J mm 1612 1612 1612 1062 1062 1612
K mm------
OD (water ttings diameter) mm 6’’ 6’’ 6’’ 6’’ 6’’ 6’’
A - Length mm 6468 6468 6468 6468 6468 6468
B - Depth mm 2246 2246 2246 2246 2246 2246
C - Height mm 2668 2668 2668 2668 2668 2668
W1 Supporting point kg 1607 1627 1650 1596 1604 1607
W2 Supporting point kg 1176 1185 1194 1172 1175 1176
W3 Supporting point kg 882 883 884 885 884 882
W4 Supporting point kg 1556 1567 1601 1538 1550 1556
W5 Supporting point kg 1139 1142 1158 1130 1136 1139
W6 Supporting point kg 854 851 857 853 854 854
Shipping weight kg 6387 6428 6515 6346 6375 6387
Operating weight kg 7214 7255 7344
7174 7203 7214
The presence of optional accessories may result in a substantial variation of the weights shown in the table. Fan diusers are separately supplied.
1. Internal exchanger (evaporator)
2. External exchanger (condenser)
3. Unit xing holes
4. Lifting brackets (removable, if required, after the unit positioning)
5. Electrical panel
6. Power input
7. Sound proof enclosure ( only in the relevant versions)
8. Clearance access recommended
