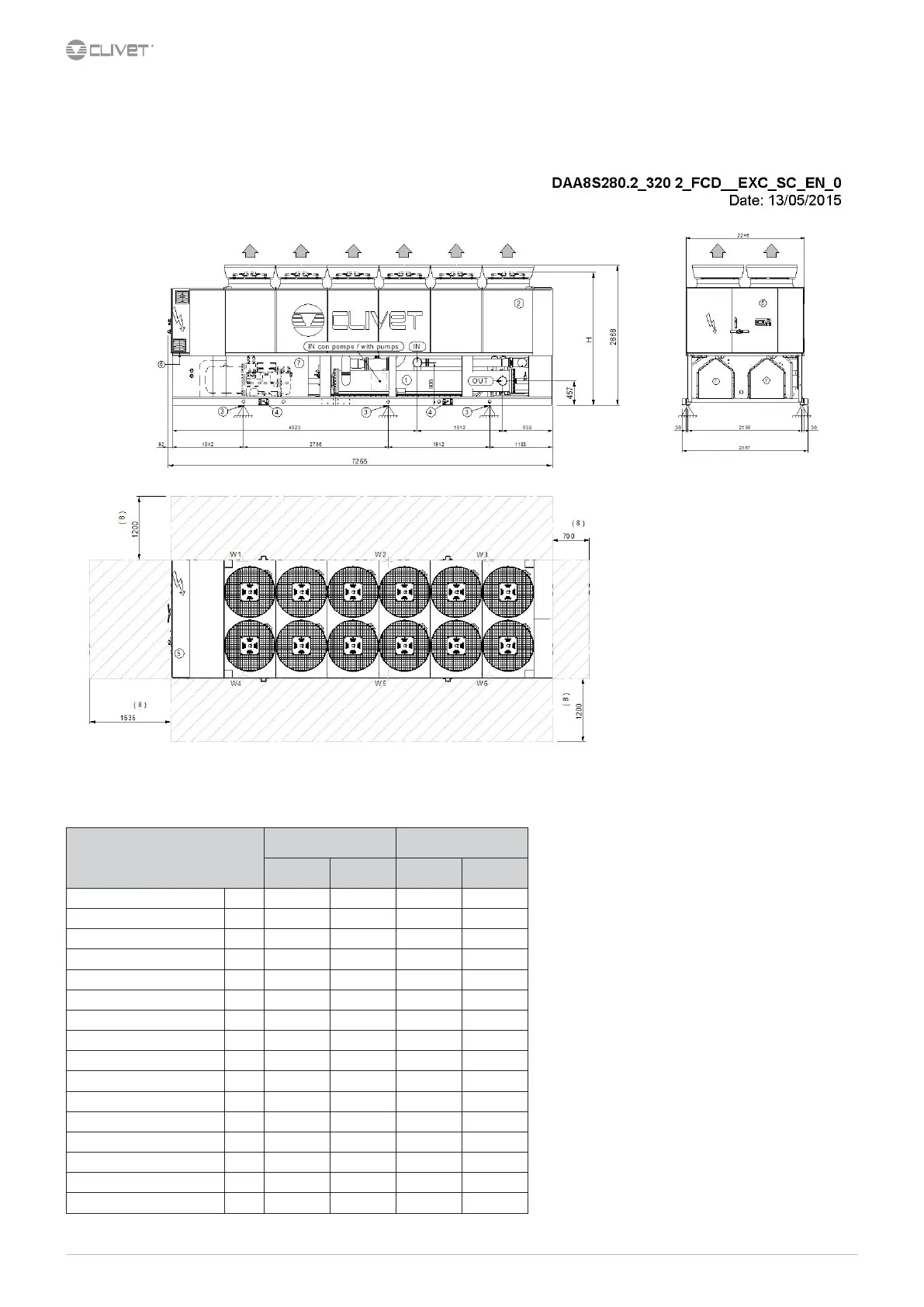

FCD conguration (Direct FREE-COOLING)
Size 280.2-320.2 -
Acoustic conguration: compressor soundproong (SC)
Size 240.2-260.2-
Acoustic conguration: super-silenced (EN)
Size
SC-EXC EN-EXC
280.2 320.2 240.2 260.2
H (without Axitop) mm 2484 2484 2510 2510
I mm----
J mm----
K mm----
OD (water ttings diameter) 6’’ 6’’ 6’’ 6’’
A - Length mm 7265 7265 7265 7265
B - Depth mm 2246 2246 2246 2246
C - Height mm 2668 2668 2668 2668
W1 Supporting point kg 1812 1829 1746 1770
W2 Supporting point kg 1484 1486 1457 1461
W3 Supporting point kg 831 828 829 824
W4 Supporting point kg 1750 1775 1687 1724
W5 Supporting point kg 1433 1442 1408 1423
W6 Supporting point kg 802 803 801 803
Shipping weight kg 7246 7298 7036 7113
Operating weight kg 8112 8163 7928 8005
The presence of optional accessories may result in a substantial variation of the weights shown in the table. Fan diusers are separately supplied.
1. Internal exchanger (evaporator)
2. External exchanger (condenser)
3.
Unit xing holes
4. Lifting brackets (removable, if required, after the unit positioning)
5. Electrical panel
6. Power input
7.
Sound proof enclosur
e ( only in the relevant versions)
8. Clearance access recommended
