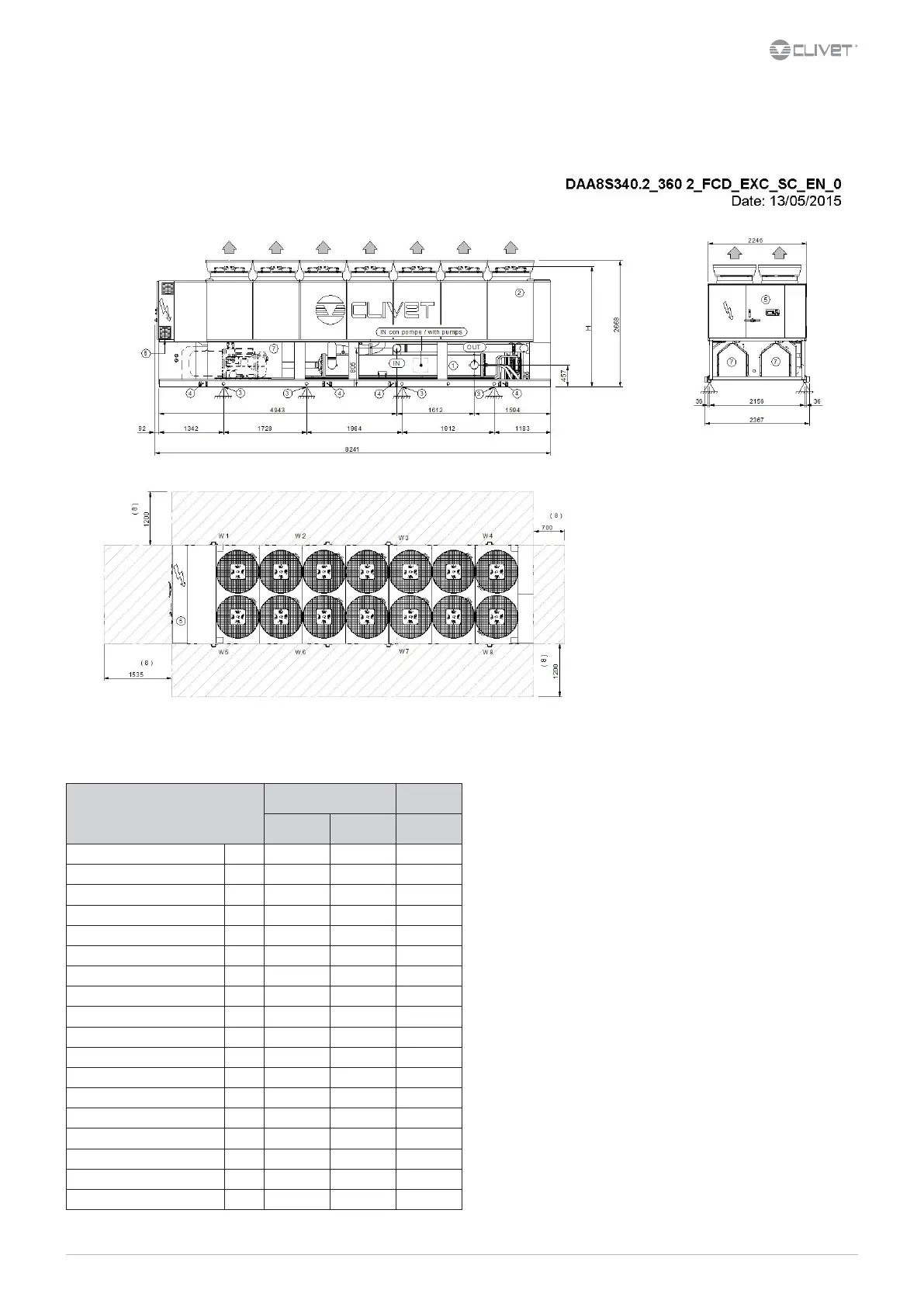

FCD conguration (Direct FREE-COOLING)
Size 340.2-360.2 -
Acoustic conguration: compressor soundproong (SC)
Size 280.2 -
Acoustic conguration: super-silenced (EN)
Size
SC-EXC EN-EXC
340.2 360.2 280.2
H (without Axitop) mm 2484 2484 2510
I mm---
J mm---
K mm---
OD (water ttings diameter) 6’’ 6’’ 6’’
A - Length mm 8241 8241 8241
B - Depth mm 2246 2246 2246
C - Height mm 2668 2668 2668
W1 Supporting point kg 1639 1805 1614
W2 Supporting point kg 1163 1247 1153
W3 Supporting point kg 1063 1067 1074
W4 Supporting point kg 831 835 842
W5 Supporting point kg 1581 1736 1559
W6 Supporting point kg 122 1199 1113
W7 Supporting point kg 1018 1022 1028
W8 Supporting point kg 796 799 806
Shipping weight kg 8262 8759 8239
Operating weight kg 9213 9710 9189
The presence of optional accessories may result in a substantial variation of the weights shown in the table. Fan diusers are separately supplied.
1. Internal exchanger (evaporator)
2. External exchanger (condenser)
3. Unit xing holes
4. Lifting brackets (removable, if required, after the unit positioning)
5. Electrical panel
6. Power input
7. Sound proof enclosure ( only in the relevant versions)
8. Clearance access recommended
