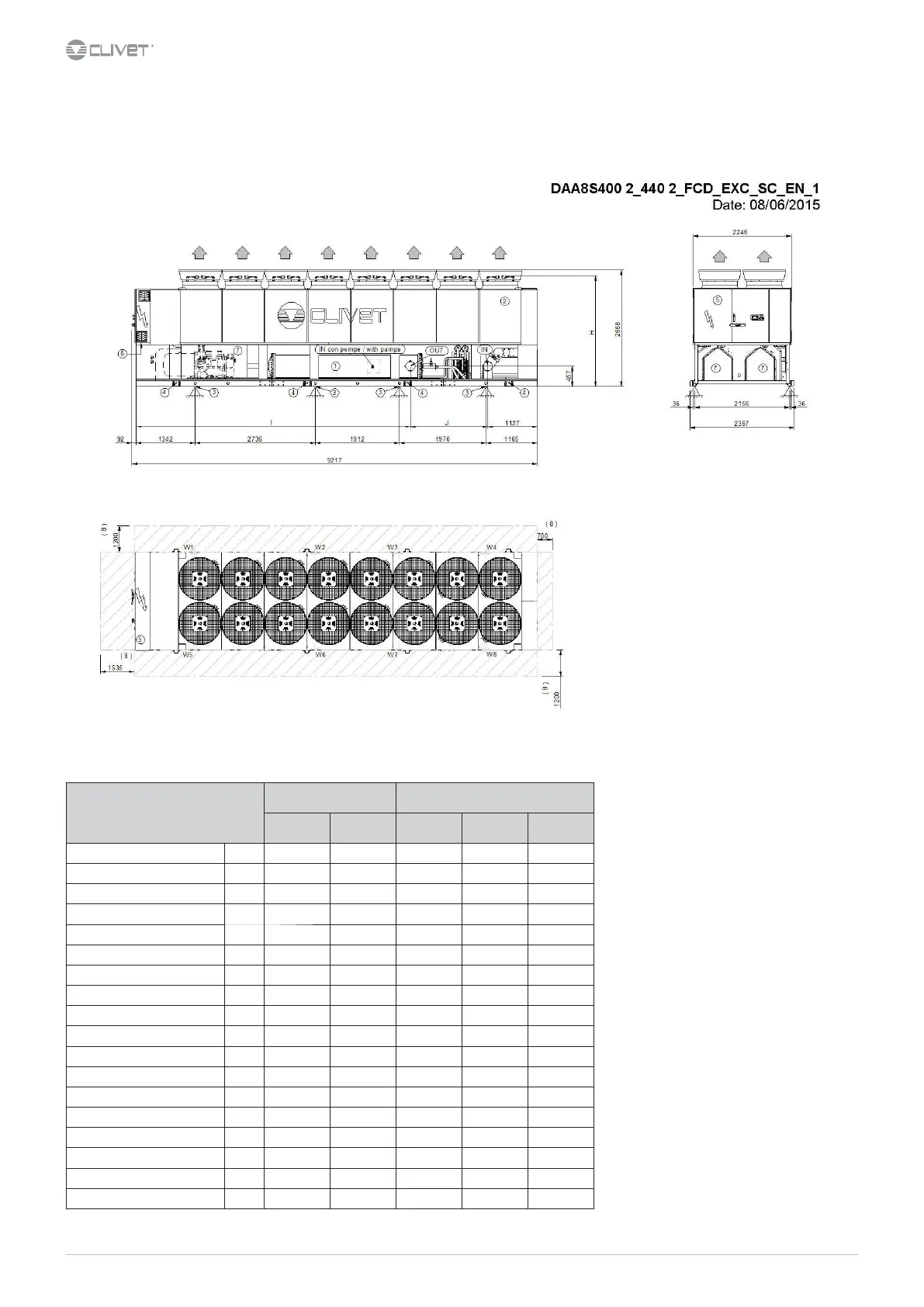

FCD conguration (Direct FREE-COOLING)
Size 400.2-440.2 -
Acoustic conguration: compressor soundproong (SC)
Size 320.2 - 340.2 - 360.2 -
Acoustic conguration: super-silenced (EN)
Size
SC-EXC EN-EXC
400.2 440.2 320.2 340.2 360.2
H (without Axitop) mm 2484 2484 2510 2510 2510
I mm 6238 6238 6555 6555 6555
J mm 1760 1760 1443 1443 1443
K mm-----
OD (water ttings diameter) 8’’ 8’’ 6’’ 6’’ 6’’
A - Length mm 9217 9217 9217 9217 9217
B - Depth mm 2246 2246 2246 2246 2246
C - Height mm 2668 2668 2668 2668 2668
W1 Supporting point kg 2001 2014 1821 1876 1990
W2 Supporting point kg 1488 1496 1319 1331 1386
W3 Supporting point kg 1523 1539 1364 1381 1385
W4 Supporting point kg 753 754 766 765 767
W5 Supporting point kg 1923 1935 1758 1864 1915
W6 Supporting point kg 1430 1437 1273 1323 1333
W7 Supporting point kg 1268 1275 1136 1142 1144
W8 Supporting point kg 626 624 638 632 634
Shipping weight kg 9775 9837 9041 9278 9515
Operating weight kg 11012 11074 10075 10314 10554
The presence of optional accessories may result in a substantial variation of the weights shown in the table. Fan diusers are separately supplied.
1. Internal exchanger (evaporator)
2. External exchanger (condenser)
3. Unit xing holes
4. Lifting brackets (removable, if required, after the unit positioning)
5. Electrical panel
6. Power input
7. Sound proof enclosure ( only in the relevant versions)
8. Clearance access recommended
