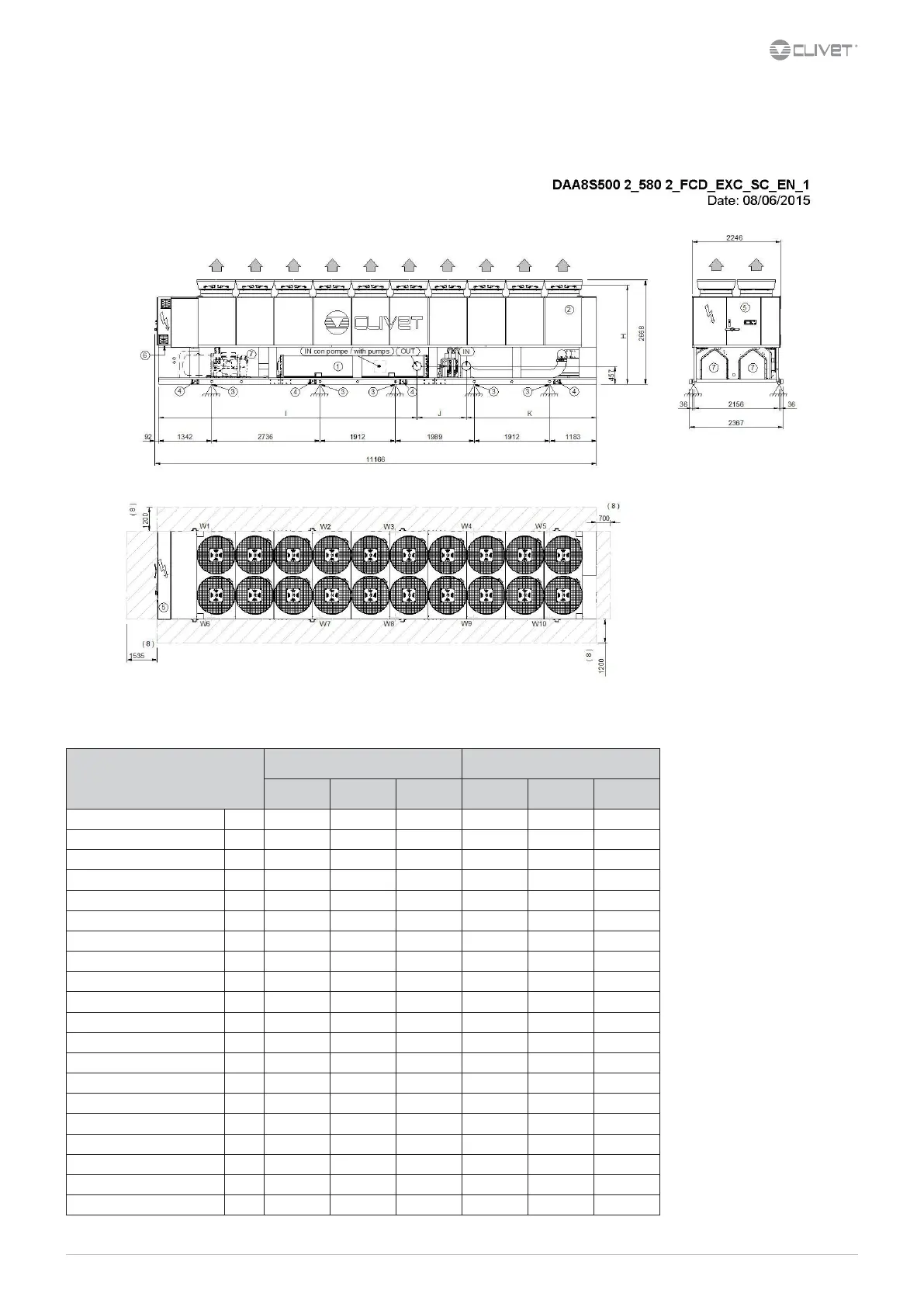

FCD conguration (Direct FREE-COOLING)
Size 500.2-540.2 - 580.2 -
Acoustic conguration: compressor soundproong (SC)
Size 400.2 - 440.2 - 500.2 -
Acoustic conguration: super-silenced (EN)
Size
SC-EXC EN-EXC
500.2 540.2 580.2 400.2 440.2 500.2
H (without Axitop) mm 2484 2484 2484 2510 2510 2510
I mm 6537 6537 6537 6237 6237 6537
J mm 1244 1244 1244 1544 1544 1244
K mm 3293 3293 3293 3293 3293 3293
OD (water ttings diameter) 8’’ 8’’ 8’’ 8’’ 8’’ 8’’
A - Length mm 11166 11166 11166 11166 11166 11166
B - Depth mm 2246 2246 2246 2246 2246 2246
C - Height mm 2668 2668 2668 2668 2668 2668
W1 Supporting point kg 2066 2086 2101 2074 2074 2066
W2 Supporting point kg 1650 1697 1720 1521 1526 1650
W3 Supporting point kg 980 980 980 802 807 980
W4 Supporting point kg 809 809 809 877 877 809
W5 Supporting point kg 728 728 728 799 799 728
W6 Supporting point kg 1959 1979 1994 1959 1959 1959
W7 Supporting point kg 1576 1623 1646 1468 1473 1576
W8 Supporting point kg 932 932 932 753
758 932
W9 Supporting point kg 721 721 721 792 792 721
W10 Supporting point kg 614 614 614 685 685 614
Shipping weight kg 10400 10534 10610 10128 10148 10400
Operating weight kg 12035 12169 12245 11730 11750 12035
The presence of optional accessories may result in a substantial variation of the weights shown in the table. Fan diusers are separately supplied.
1. Internal exchanger (evaporator)
2. External exchanger (condenser)
3. Unit xing holes
4. Lifting brackets (removable, if required, after the unit positioning)
5. Electrical panel
6. Power input
7. Sound proof enclosure ( only in the relevant versions)
8. Clearance access recommended
