Compact controller ER 2022S and ER 2022SA
3. Mounting site and climatic conditions
3.2 Side by side mounting

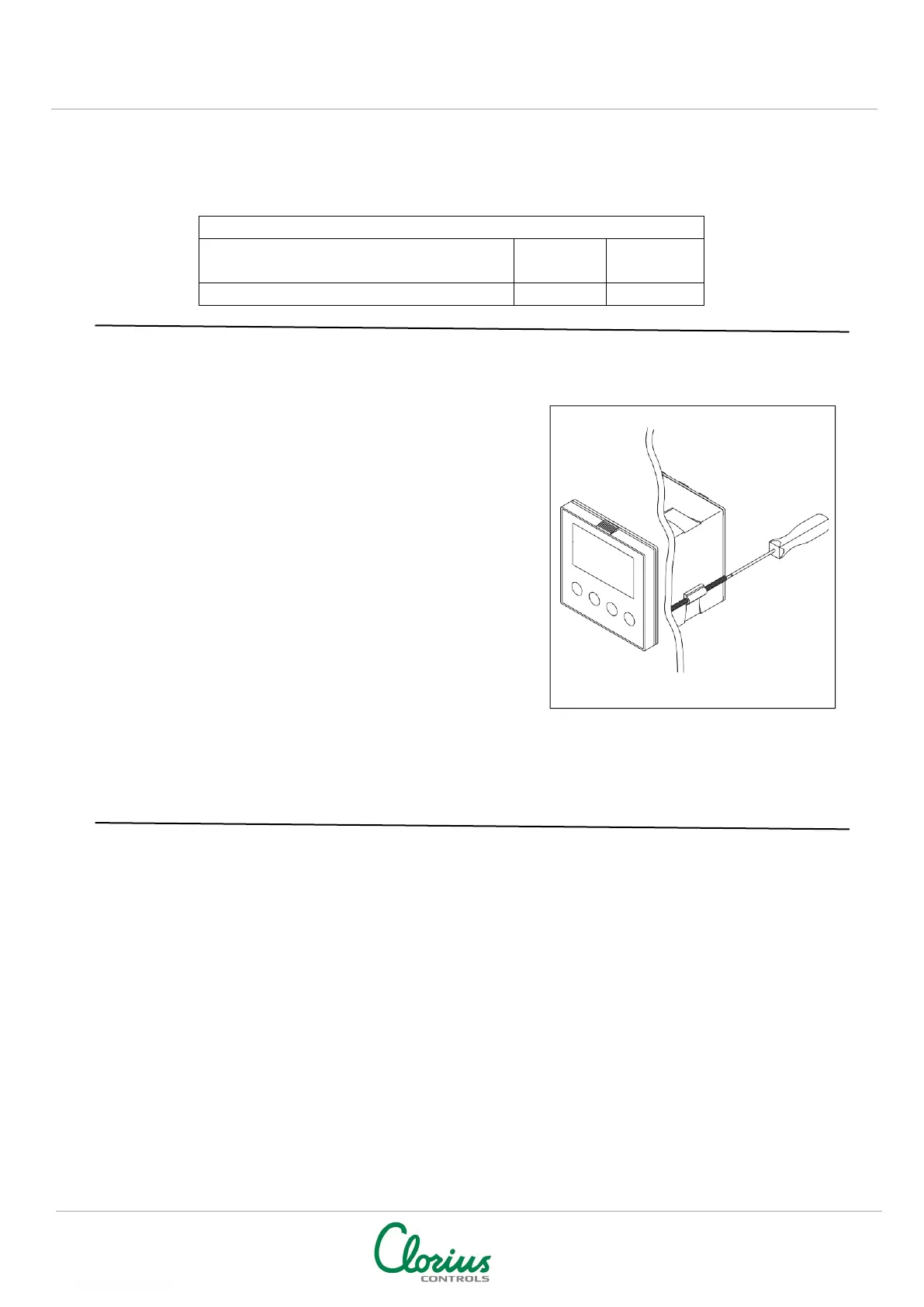

3.2 Fitting in position
Type ER2022S/SA
h
Fit the seal that is supplied onto the
instrument body.
h
Insert the controller from the
front into the panel cut-out.
h
from behind the panel, slide the
mounting brackets into the
guides on
the sides of the
housing.
The flat faces of the mounting
brackets must lie against the
housing.
h
Push the mounting brackets up to the
back of the panel and tighten them
with a screwdriver.
Care on the The front panel can be cleaned with normal commercial washing, rinsing and
front panel
cleaning agents. It has a limited resistance to organic solvents (e.g., ethylated
spirits, white spirit, P1, xylol etc.). Do not use high-pressure cleaning equipment.
Minimum spacing of panel cut-outs
Type
vertical
