Compact controller ER 2022S and ER 2022SA
www.clori uscontrols.com
34 of 69

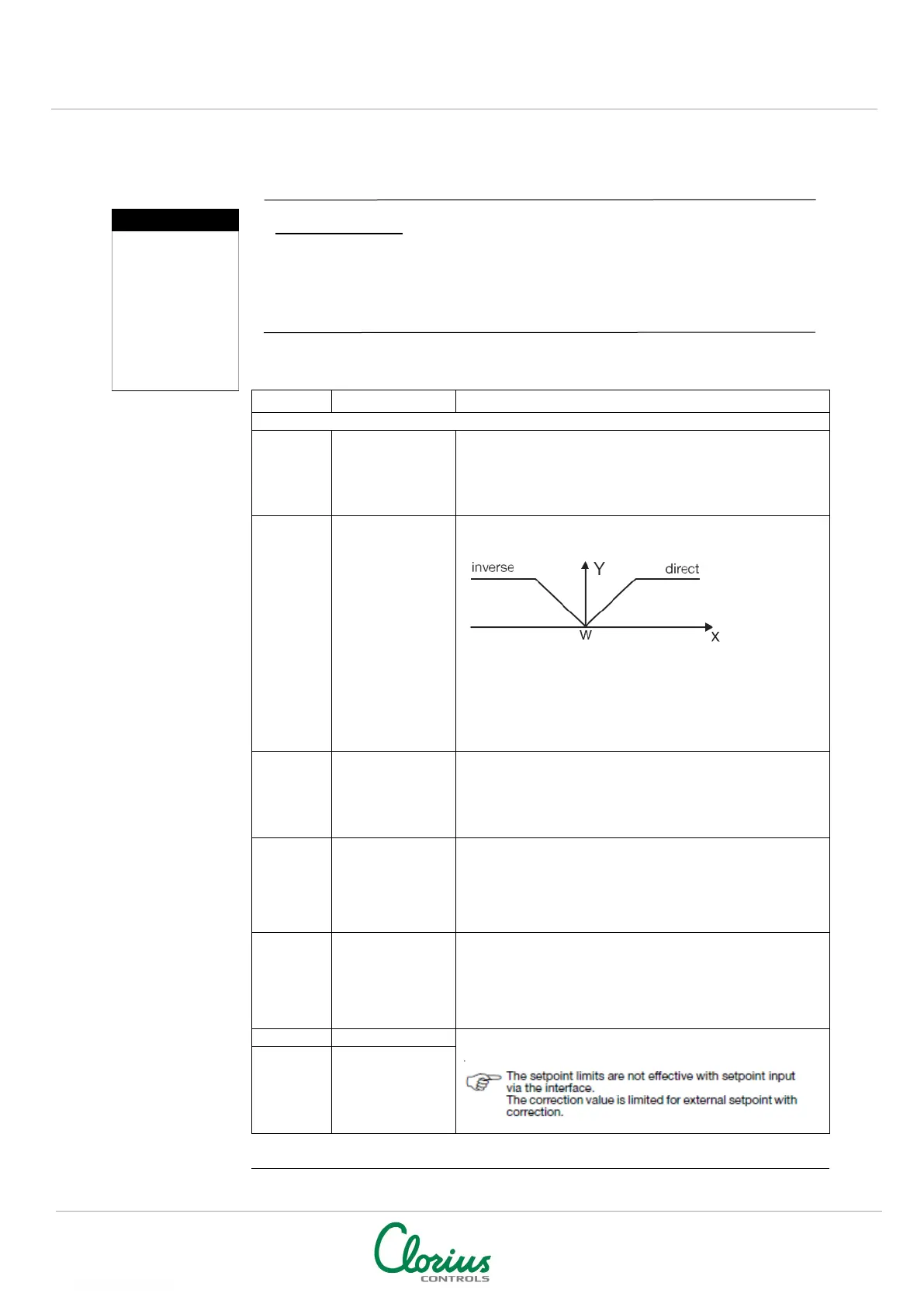

8. Configuration
8.2 Controller ”Cntr”
Symbol
Value/selection
Description
Configuration
Controller
type
CtyP
0
1
2
3
4
No function
2-state controller
3-state controller
Modulating controller
Continuous controller
Control action
CAct
0
1
Direct
Inverse
inverse:
The controller output Y is > 0 when the process
value is smaller than the setpoint (e. g. heating).
direct:
The controller output Y is > 0 when the process value
is larger than the setpoint (e. g. cooling).
Inhibit manual
mode
InHA
0
1
Enabled
inhibited
If the manual mode is inhibited, changing to “manual” is
not possible from the keys or via the binary input.
Manual output
HAnd
-100…..101
Defines the controller output level after changing
over to manual mode.
101 = last output
For modulating controller:
101 = actuator is stationary.
0 = actuator closes; 100 = actuator opens
Range output
rOut
100…0…101
Output on
over/underrange. 101 =
last output
For modulating controller:
101 = actuator is stationary.
0 = actuator closes; 100 = actuator opens
Set point low
SPL
-1999…+9999
Setpoint limiting prevents the input of values outside
the defined range.
Set point high
SPH
-1999…+9999
NOTE: Factory settings shown with BOLD text
Cntr: Controller
The following are det here: controller type, input variables of the
controller, the set point limits, conditions for manual mode and the
presetting’s for autotuning (self-optimization)
Configuration
Analog inputs
Controller
Generator
Limit comparators
Outputs
Binary functions
Display
Timer
Interfaces
