Compact controller ER 2022S and ER 2022SA

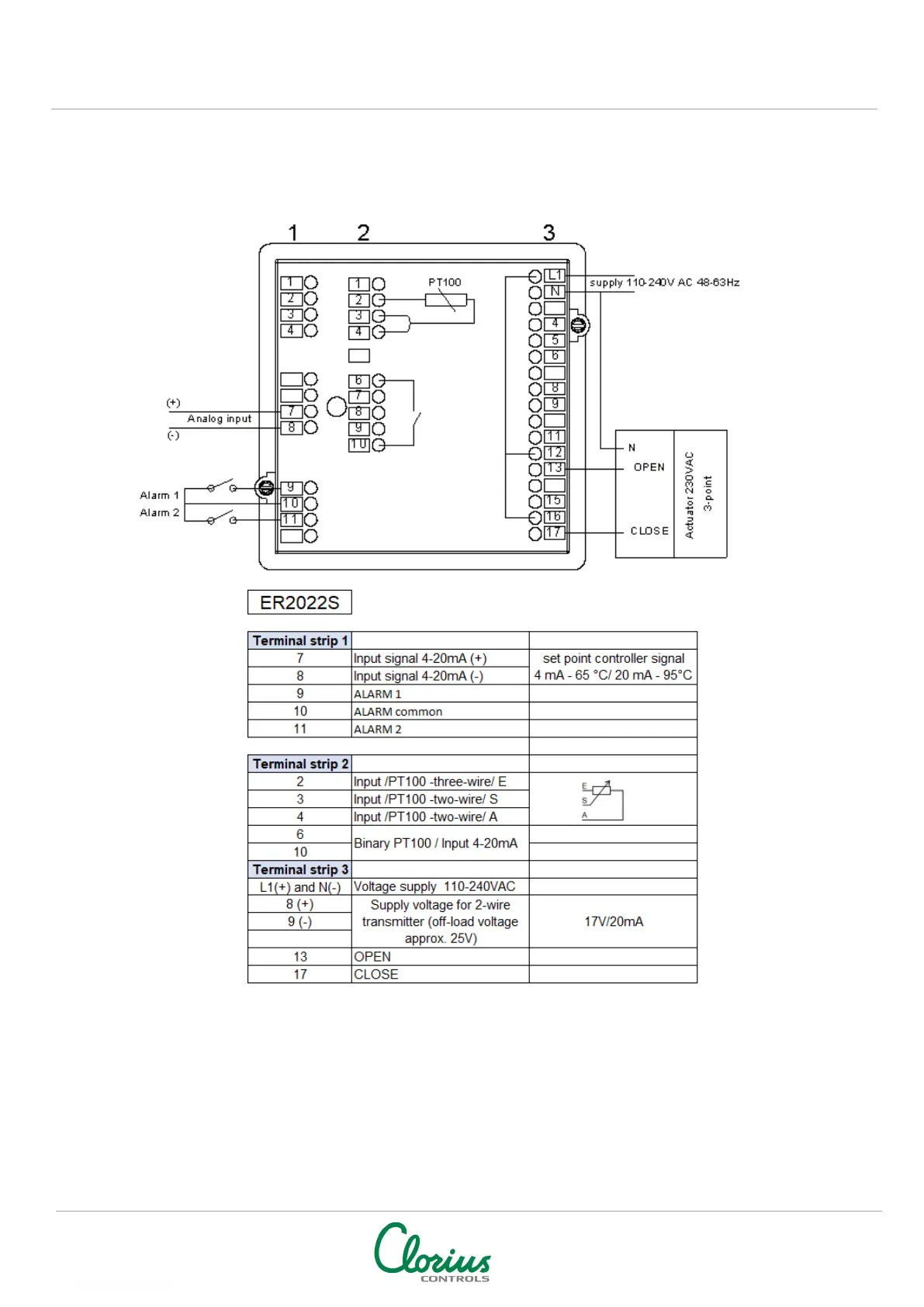

13. Wiring ER2022S ā 3-points
Controller ER2022S ā 3-points
Shielded cables should been used.
It is recommended to use the cable end clamps when installing the wire.
ELECTRIC CONNECTION
at the back, via screw terminals, conductor cross-section up to 2.5 mm2
with core ferrules (length: 10mm)
Please refer to the instruction depending on the type of actuator
