Compact controller ER 2022S and ER 2022SA
Levels can be inhibited.
Chapter 5.3 Level inhibit
Analog selector With some parameters, you can choose from a series of analog values. To
provide you with an overview, this selection is listed below.
0
no function 21 program run time in sec.
1
analog input 1 22 residual program time in sec
2
analog input 2 23 segment run time in sec.
3
process value 24 residual segment time in sec.
4
present set point 25 timer run time for timer 1 in sec.
5
ramp end value 26 timer run time for timer 2 in sec.
6
program setpoint 27 residual run time for timer 1 in sec.
7
math 1 28 residual run time for timer 2 in sec.
8
math 2 29 present segment end value
9
set point 1 30 analog marker (Profibus)
10
set point 2 31 reserved
13
controller output level 32 reserved
14
controller output 1 33 reserved
15
controller output 2

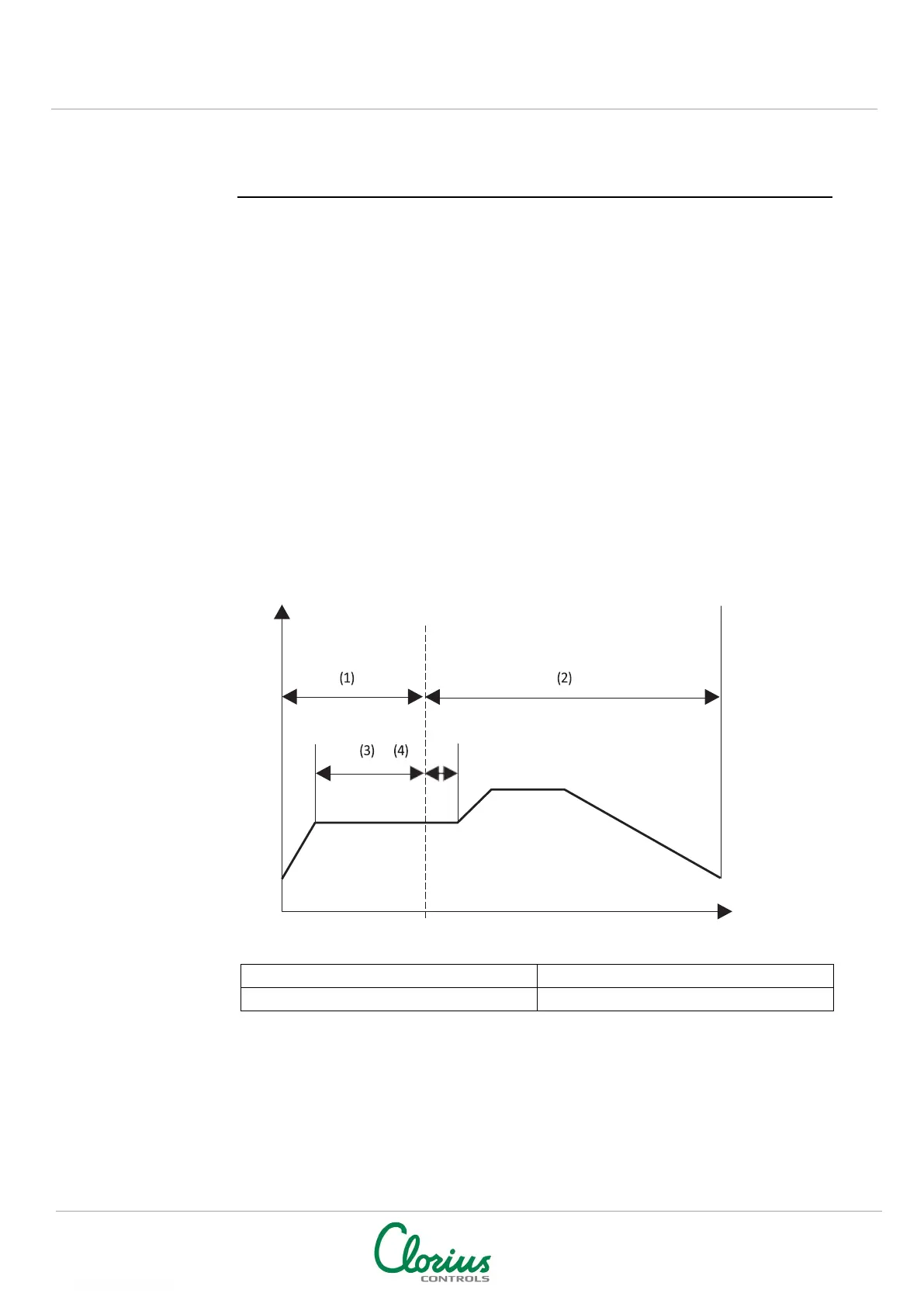

Definition of the program times
w
tx
t
(2) Residual program time
(4) Residual segment time
