5. Operation

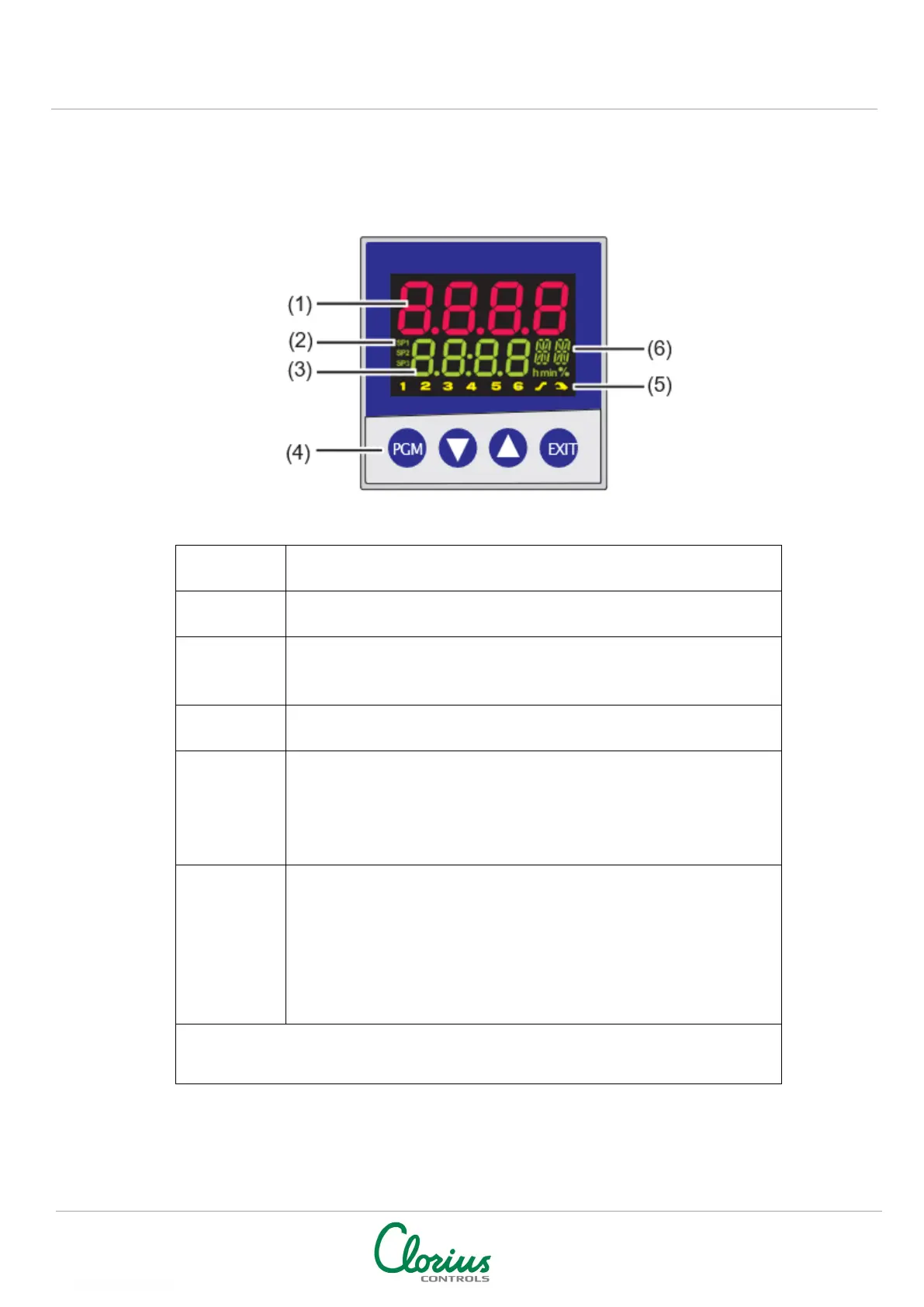

5.1 Displays and controls
(1)
7-segment display (factory setting: process value)
four-digit, red, decimal place is configurable
(2)
(automatic adjustment on display overflow)
Active setpoint
(factory setting: SP1)
(3)
SP1, SP2, SP3, SP4 (SP=setpoint; green:
7-Segment display (factory setting: setpoint)
four-digit, green; decimal place is configurable.
also used for operator prompting (display of parameter
and level symbols)
(4)
(5)
Keys
Indification
Yellow, for
- Switch status of binary outputs 1-6
(display lights up = ON)
(6)
- manual operation is active
16-segment display for the unit °C/°F and text
two-digit, green, configurable, symbols for h, min,
In addition, the current segment number (program), the
parameter set, or any two-place letter/number
combination can be displayed through the setup
program.
The displays are configurable.
Chapter 8.7 “Display “diSP”
