8. Configuration
8.6 Binary functions “binF”
binF: Binary functions
functions are assigned here to the binary signals of the binary
inputs and limit comparators.
In addition, the functions for control contacts, tolerance limit signal and
program end signal are defined for program controllers/generators.
In the case of a fixed-setpoint controller, functions can be assigned to
the ramp end signals.

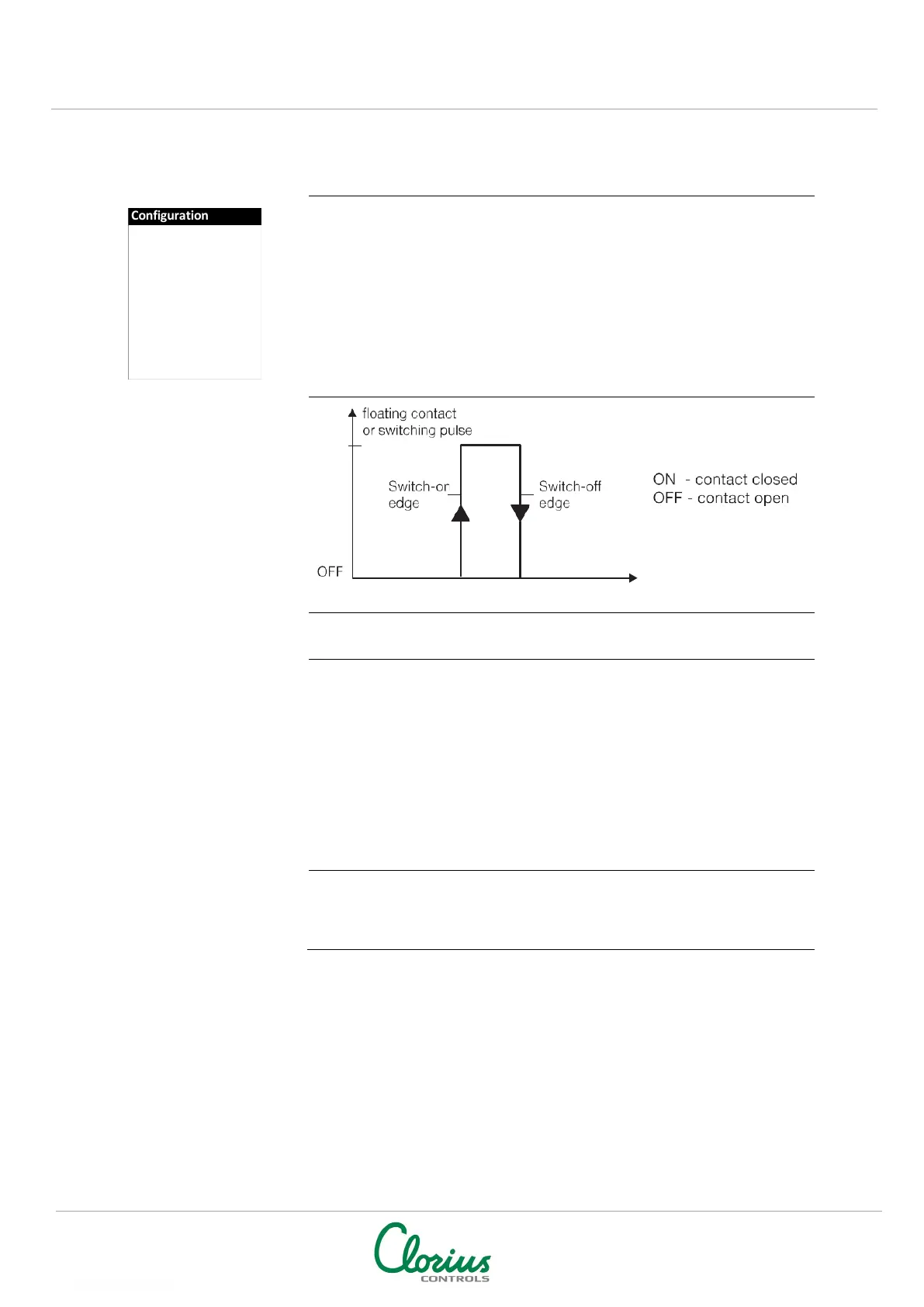

The functions are arranged in two groups
Edge-triggered.
functions
The binary function reacts to switch-on
edges. The following functions are edge-
triggered:
- Start/stop of autotuning
- Acknowledge limit comparators
- Program start/cancel
- Start timer
- Segment change
State-triggered
functions
The binary function reacts to switch-on or switch-off states.
- All remaining functions
Configuration
Analog inputs
Controller
Generator
Limit comparators
Outputs
Binary functions
Display
Timer
Interfaces
Switching action
