Clorius Controls ER 2022S - Outputs Outp

Compact controller ER 2022S and ER 2022SA
www.clori uscontrols.com
44 of 69

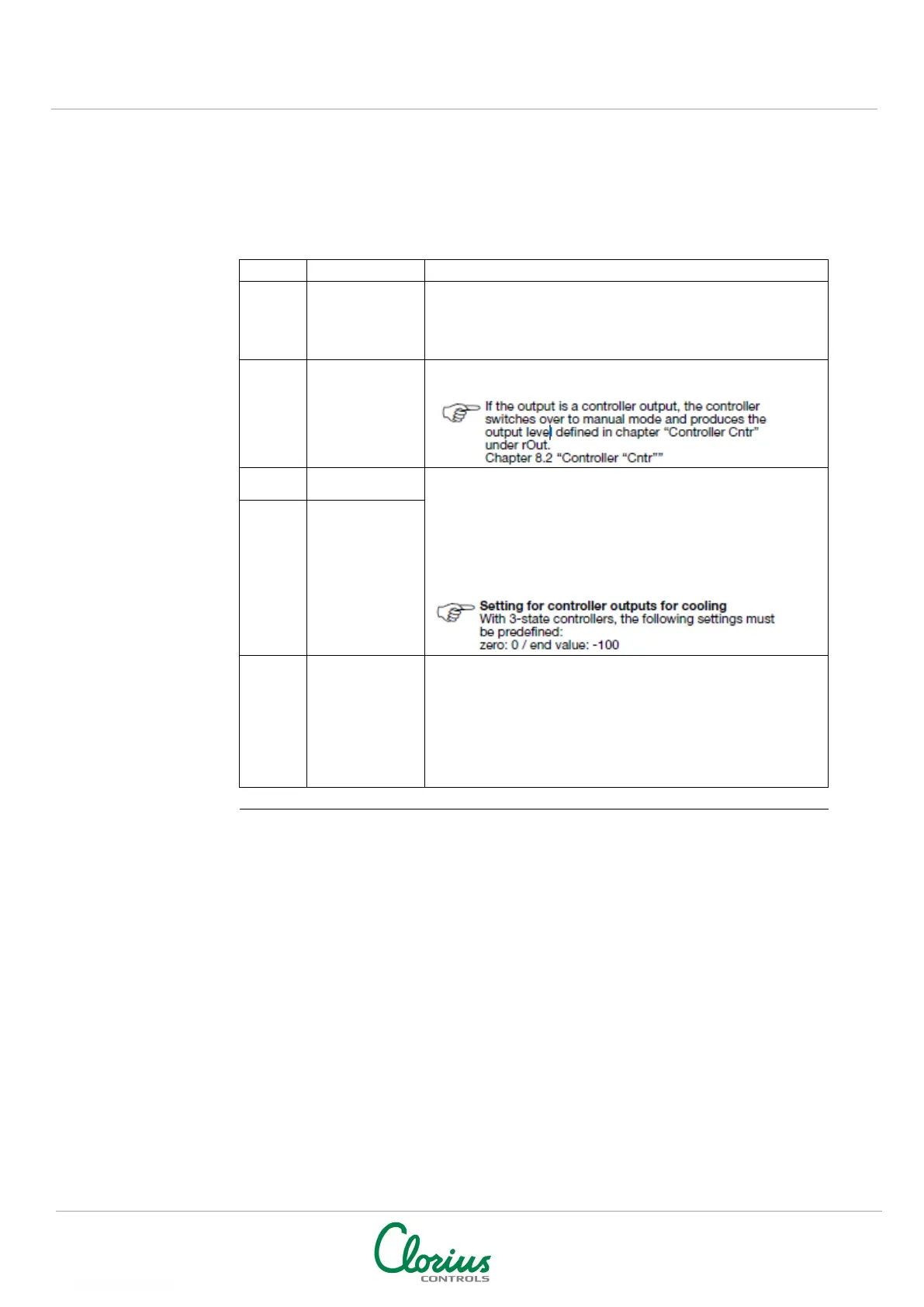

8. Configuration
8.5 Outputs “OutP
Analog outputs 0utA ➔ Output 5 0ut5 ➔
Output 6 0ut6 ➔
Output 7 0ut7 ➔
Symbol
Value/selection
Description
Function
Sign
0
1
2
3
0 — 10V
2 — 10V
0 — 20mA
4 — 20mA
Physical output signal
Range output
r0ut
0…101%
Signal on going above/below range
101 = last output signal
Zero point
0Pnt
-1999…
0…+9999
A physical output signal is assigned to the value range of an
output variable.
Ex-factory, the setting corresponds to an output level
of 0 — 100% for controller outputs.
Example:
Setpoint 1 (value range 150 to 500 °C) is to be output via an
analog output (0 — 20mA).
i.e.: 150 to 500°C � 0 — 20mA
End value
End
-1999…
100…+9999
Offset
(setup)
-1999…
0…+9999
The offset is used to correct the output signal by a certain
amount upwards or downwards.
Examples:
Original Output
value Offset value
294.7 +0.3 295.0
295.3 - 0.3 295.0
NOTE: Factory settings shown with BOLD text
Analog selector 0 no function
1 analog input 1
2 analog input 2
3 process value
4 present set point
5 ramp end value
6 program set point
7 math 1
8 math 2
9 set point 1
10 set point 2
11 set point 3
12 set point 4
13 controller output level
14 controller output 1
15 controller output 2
21 program run time in sec
22 residual program time in sec
23 segment run time in sec
24 residual time in sec
25 timer run timer 1 in sec
26 timer run rimer 2 in sec
27 residual run time for timer 1 in sec
28 residual run time for timer 2 in sec
29 present segment end value
30 analog marker (Profibus)
31 reserved
32 reserved
33 reserved
