Clorius Controls ER 2022S - Program Controller; Entering Programs

Compact controller ER 2022S and ER 2022SA
www.clori uscontrols.com
20 of 69
5. Operation
5.6 Program Controller
Condition as
delivered
The instrument must be configured as a program controller/generator.
Furthermore, a program must be entered beforehand, to operate the
instrument as a program controller/generator.

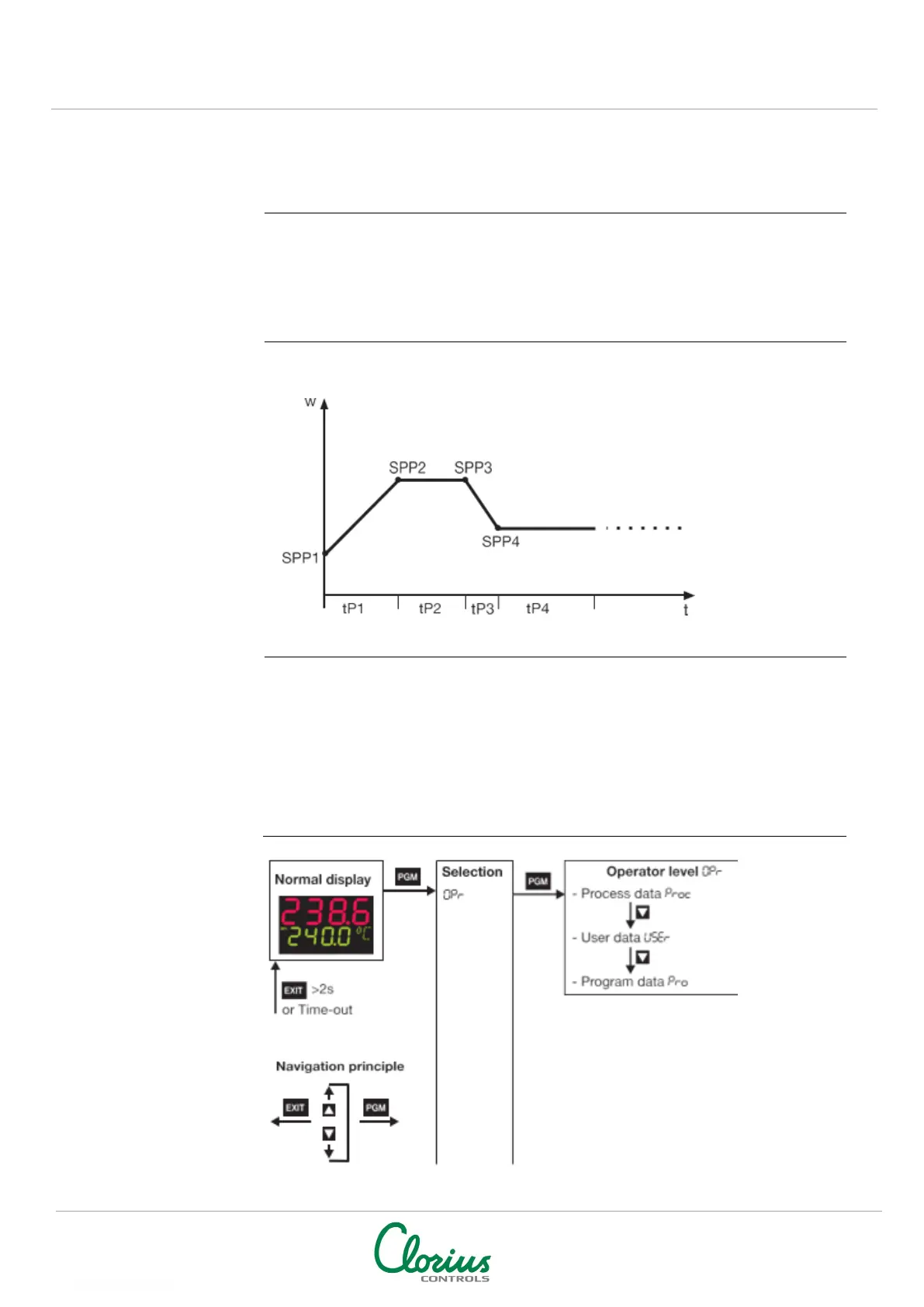

5.6.1 Entering programs
Function
A set point can be implemented with maximum of 8 programs segments
Entry on the
instrument
The instrument must be configured as a program controller/generator.
v
Chapter 8.3 “Generator “Pro”” (Function)
Configurable time base: mm:ss, hh:mm und dd:hh (s=seconds, m=minutes,
h=hours, d=days).
v
Chapter 8.3 “Generator “Pro”” (unit)
The segment setpoints (SPP1 — SPP8) and segment times (tP1 — tP8) are
set at the operator level (program data).
