Compact controller ER 2022S and ER 2022SA
The parameters Pb2, Cy2, HyS2 and y2 refer to the second controller output for a 3- state or
modulating controller. The decimal place of some parameters depends on the decimal place
setting in the displays.
The parameter display on the instrument depends on the controller type selected.
Chapter 8.2 Controller “Cntr”
General
The following applies to the representation of parameters and functions at the
configuration level:
The parameter is not displayed or can not be selected if.
- the equipment level does not permit the function assigned to the
parameter.
Example: Analog output 2 can not be configured if analog output 2 is not
implemented in the instrument.
Some parameters can only be programmed through the setup program.
These are
marked in the symbol column with “(setup).”

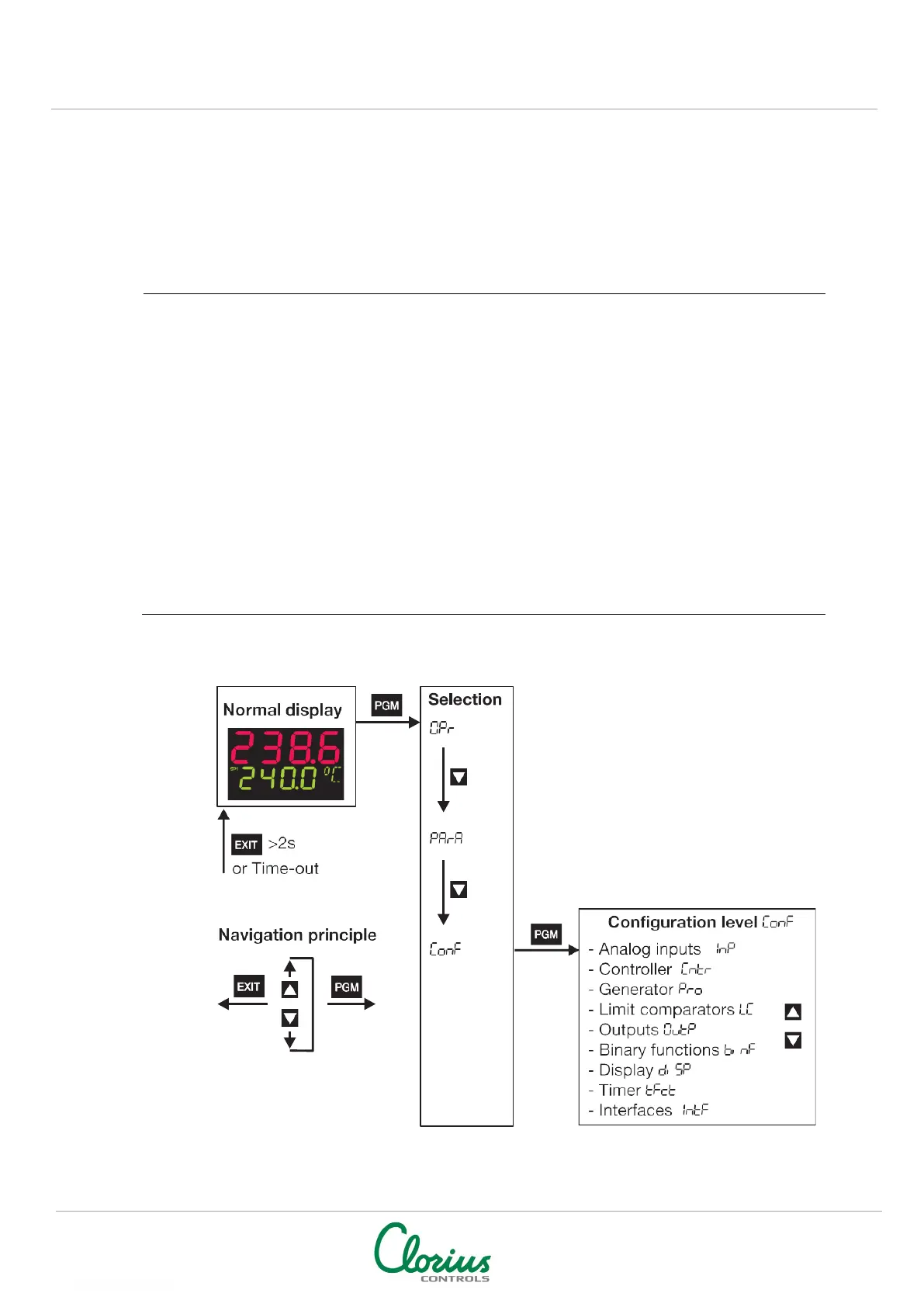

The symbol (appears in the display) that corresponds to the menu
item is shown in the chapter headings (e.g., 8.1 Analog inputs “InP”).
Access
