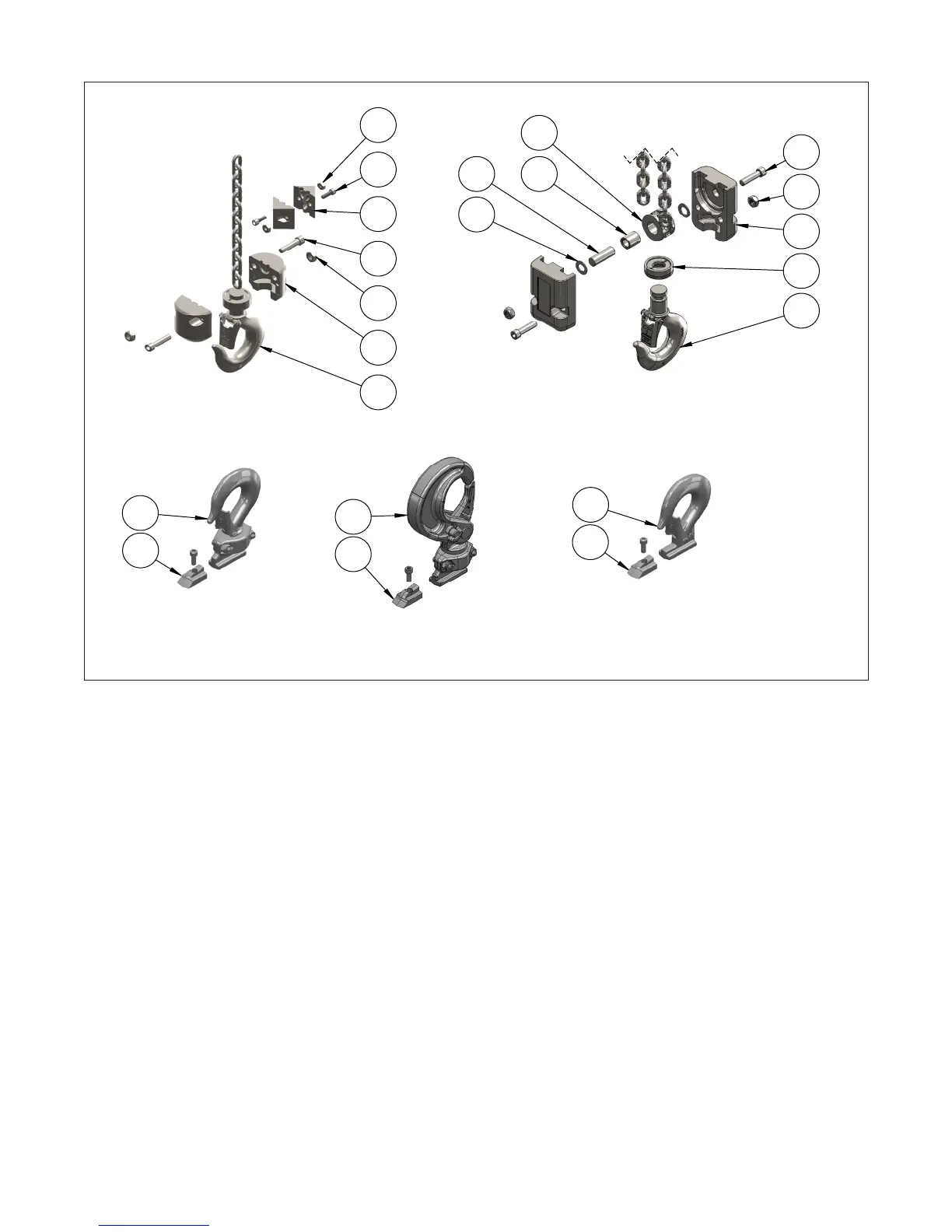

LOWER HOOK ASSEMBLIES
62
63
SWIVEL LATCHLOK
ASSEMBLY
64
63
51
60
61
48
47
49
46
SINGLE REEVED LOWER
HOOK & BLOCK
RIGID HOOK SUSPENSION
ASSEMBLY
65
63
DOUBLE REEVED LOWER
HOOK & BLOCK
56
54
60
61
55
59
58
57
53
SWIVEL HOOK SUSPENSION
ASSEMBLY
ITEM NO. PART NUMBER DESCRIPTION QTY.
46
Shopstar
manual10001931
LATCH HOOK ASSEMBLY 1
47 10001878
LOWER HOOK BLOCK (1 REEVE)
2
48 Shopstar manual82554 CAP SCREW, SOCKET HEAD 2
49
Shopstar manual82638 HOOK BLOCK NUT (1 REEVE) 2
51
25848
CHAIN STOP SCREW
2
60 Shopstar manual20428 Dead End Block 2
61
Shopstar
manual982472
TRANSFORMER SCREW NUT 2
ITEM NO. PART NUMBER DESCRIPTION QTY.
53
Shopstar
manual10001931
LATCHLOK HOOK ASSEMBLY SWIVEL A/R
54
Shopstar
manual10001927
HOOK BLOCK (2 REEVE) 2
55
00670132 WEDGE RING 1
56 Shopstar manual82554 CAP SCREW, SOCKET HEAD 2
57
Shopstar manual82638 HOOK BLOCK NUT (2 REEVE) 2
58
Shopstar manual88639 THRUST WASHER 2
59
Shopstar manual20318 SHEAVE WHEEL SHAFT 1
60
Shopstar manual20316 SHEAVE WHEEL 1
61
Shopstar manual88641 BEARING SHEAVE WHEEL 1
ITEM NO. PART NUMBER DESCRIPTION QTY.
62 20650 LATCH HOOK ASSEMBLY RIGID A/R
63 20713K HOOK RETAINER & SCREW 1
ITEM NO. PART NUMBER DESCRIPTION QTY.
64
Shopstar
manual574303
LATCHLOK HOOK ASSEMBLY SWIVEL A/R
63 20713K HOOK RETAINER & SCREW 1
ITEM NO. PART NUMBER DESCRIPTION QTY.
65 10001130 LATCH HOOK ASSEMBLY SWIVEL A/R
63 20713K HOOK RETAINER & SCREW 1
