MAN.234 Rev.6 ENG - Use and maintenance manual S19HD page 39 of 126
to avoid obstacles or its contact with the
ground; moreover, it is possible lower two
front outriggers or two rear ones until to
brush up against the soil, using the lever 9
(Picture 8) to balance the weight of the ma-
chine.
Travel operations shall be made with the basket
placed at the rear of the machine.
Always use the radio control for travel
operations.
The travel slope limits are lower from the
basket control station: 11° (pre-alarm at 8°)
longitudinally and 5° (pre-alarm at 2°) trans-
versally.
When traveling, respect a distance of at
least 4 meters and make sure that no one
stays within a radius of at least 5 meters.
4.3.3.1 Travel using radio control
In order to perform a travel, using the radio control:
1. make sure all outriggers are raised off the
ground;
2. make sure the basket block pin is inserted
(Picture 19);
3. make sure the booms are returned and on
their support;
4. turn on the machine (par. 3.1);
5. use the joysticks J1 and J6 (Picture 17) to
drive the tracks;
6. position the speed selector SS (Picture 17) on
"turtle" symbol; move it to “hare” symbol to in-
crease the speed of the tracks or to “double
hare” to reach the maximum speed.

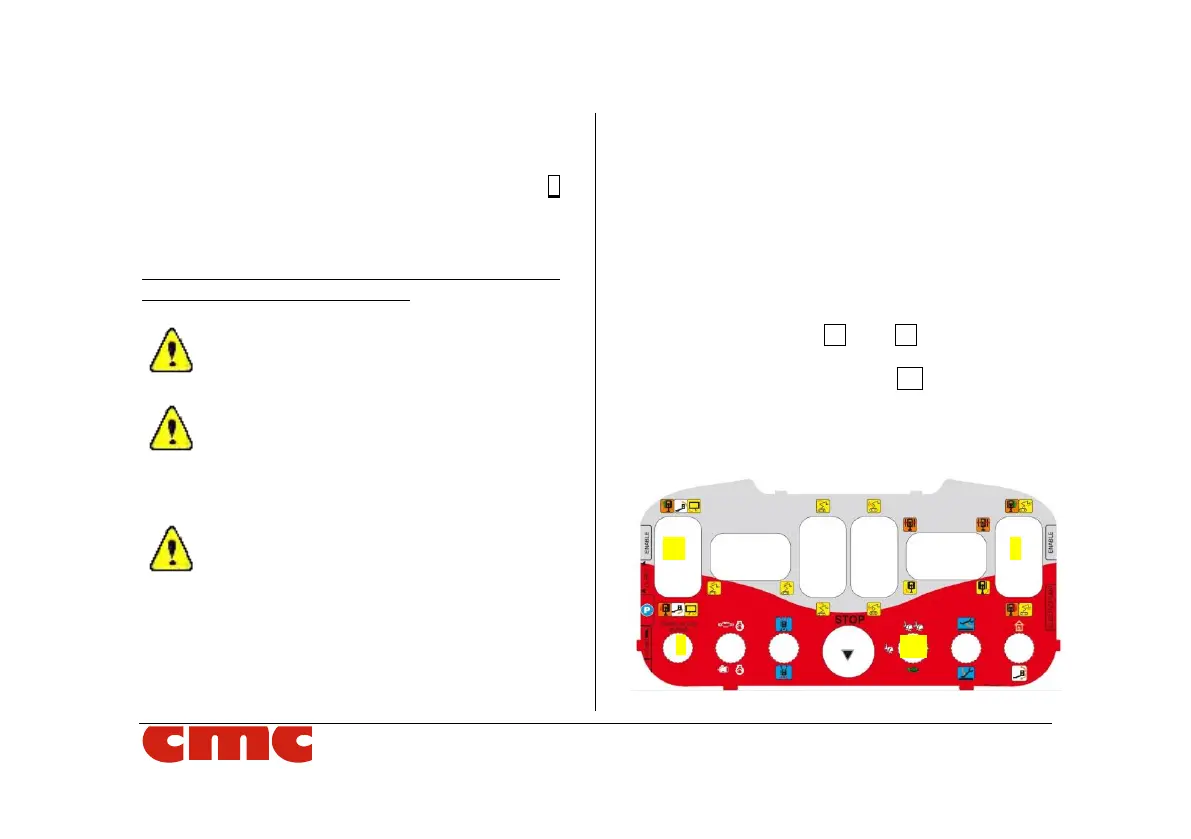

Picture 17: travel commands on
