MAN.234 Rev.6 ENG - Use and maintenance manual S19HD page 44 of 126
4.4.3 Access in the basket

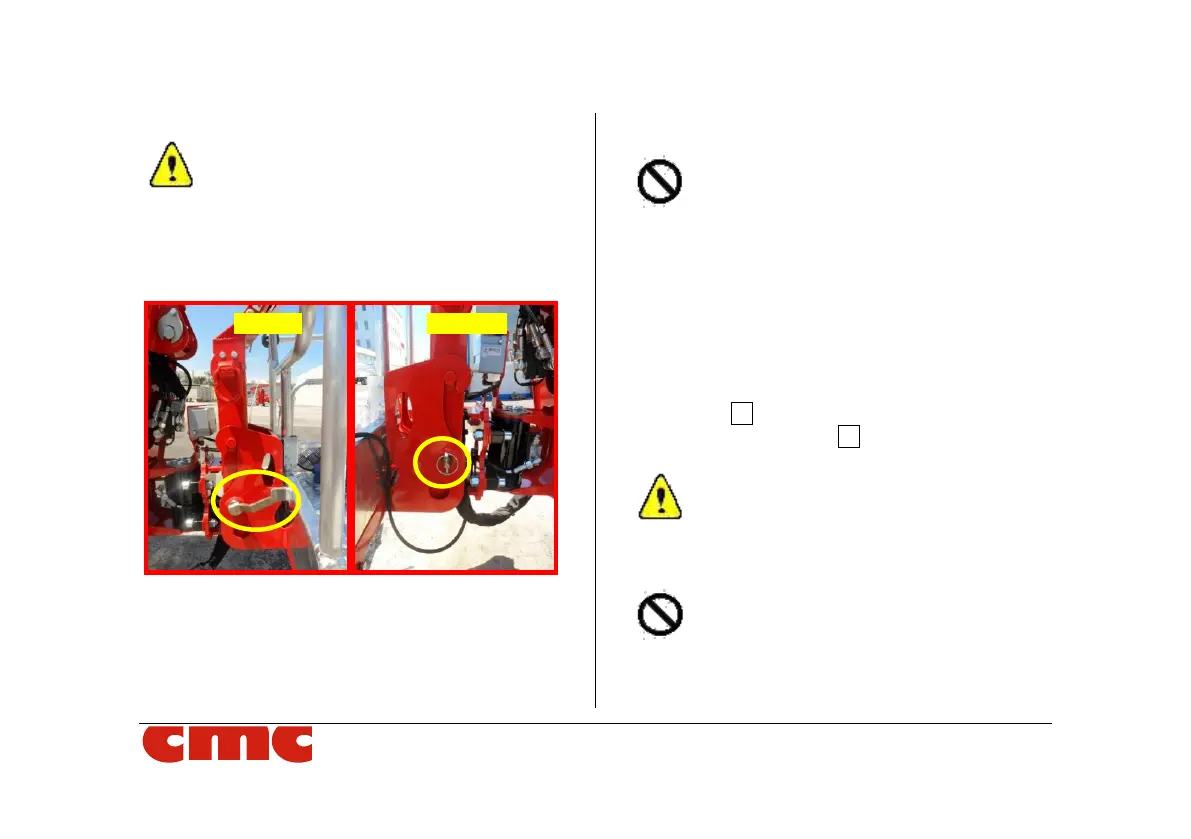

Verify the correct assembly (Picture 19) of
the basket to the jib: pivot and cotter pin in-
serted on the right side of the jib; pin turned
to the right, up to basket edge on the left
side.
Picture 19: basket assembly.
11. Use the steps of the ladder and access in-
side the basket by lifting the self-locking bar.
12. Make sure that the bar is back to the
closed position; fasten the safety belts to
suitable anchorages present in the bas-
ket.
It is forbidden to overload the basket ex-
ceeding its maximum allowed nominal
capacity.
4.4.4 Basket levelling
13. Perform the basket levelling manoeuvre to
return the basket in the horizontal position if
it is out of level. Using the radio control sta-
tion, actuate the basket levelling control joy-
stick J1 and simultaneously bring down the
"dead man" lever 12 in the lower right side
(Picture 8).
Perform levelling only with the MEWP
aerial part in transport configuration (jib
closed, pantograph and booms returned, tur-
ret centered).
It is strictly forbidden to carry out the
basket levelling operation when the ma-
chine is developed.
