MAN.234 Rev.6 ENG - Use and maintenance manual S19HD page 55 of 126

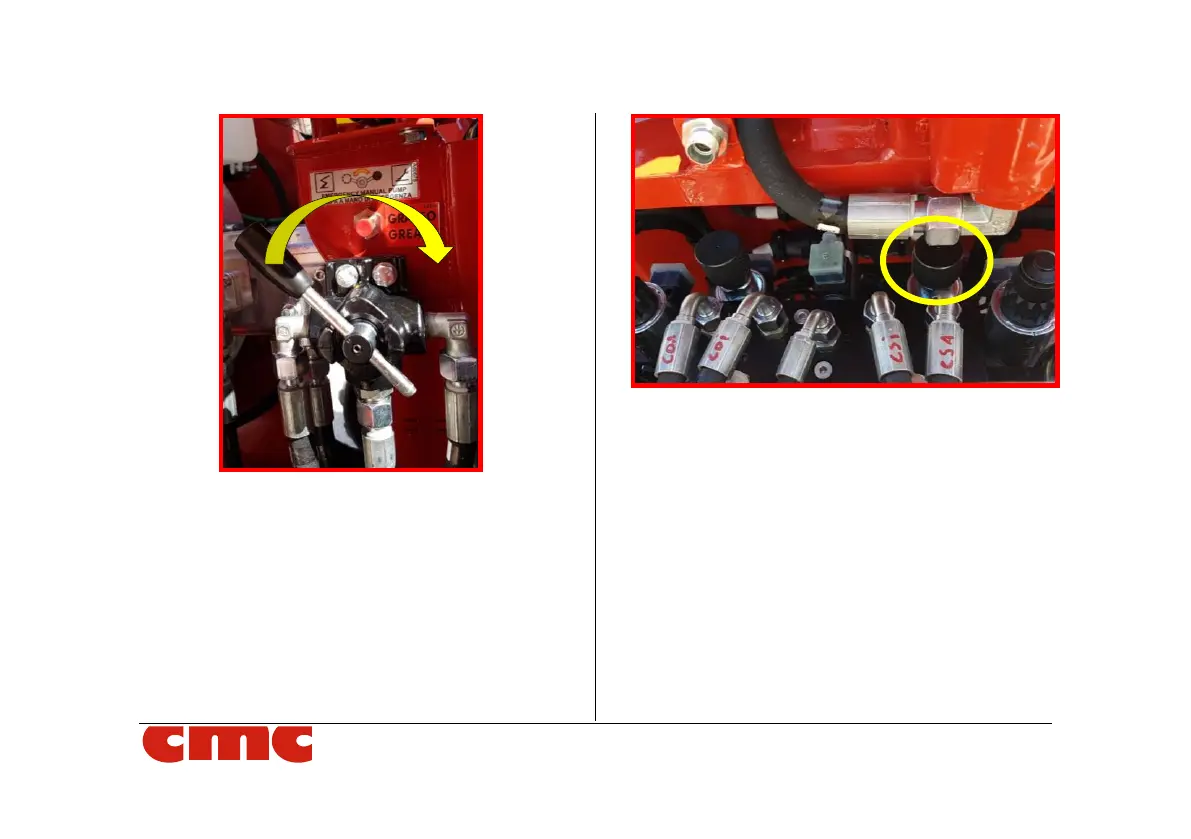

Picture 25: manual pump tap to be turned
to the right.
2. Unseal and fully screw the black knob of the
tap RFT (Picture 26) located at the right of the
filters bench.
Picture 26: right filters bench tap.
3. Unseal and screw (fully to the right) the black
knob of the outriggers monitored valve SV
(Picture 27).
