MAN.234 Rev.6 ENG - Use and maintenance manual S19HD page 56 of 126

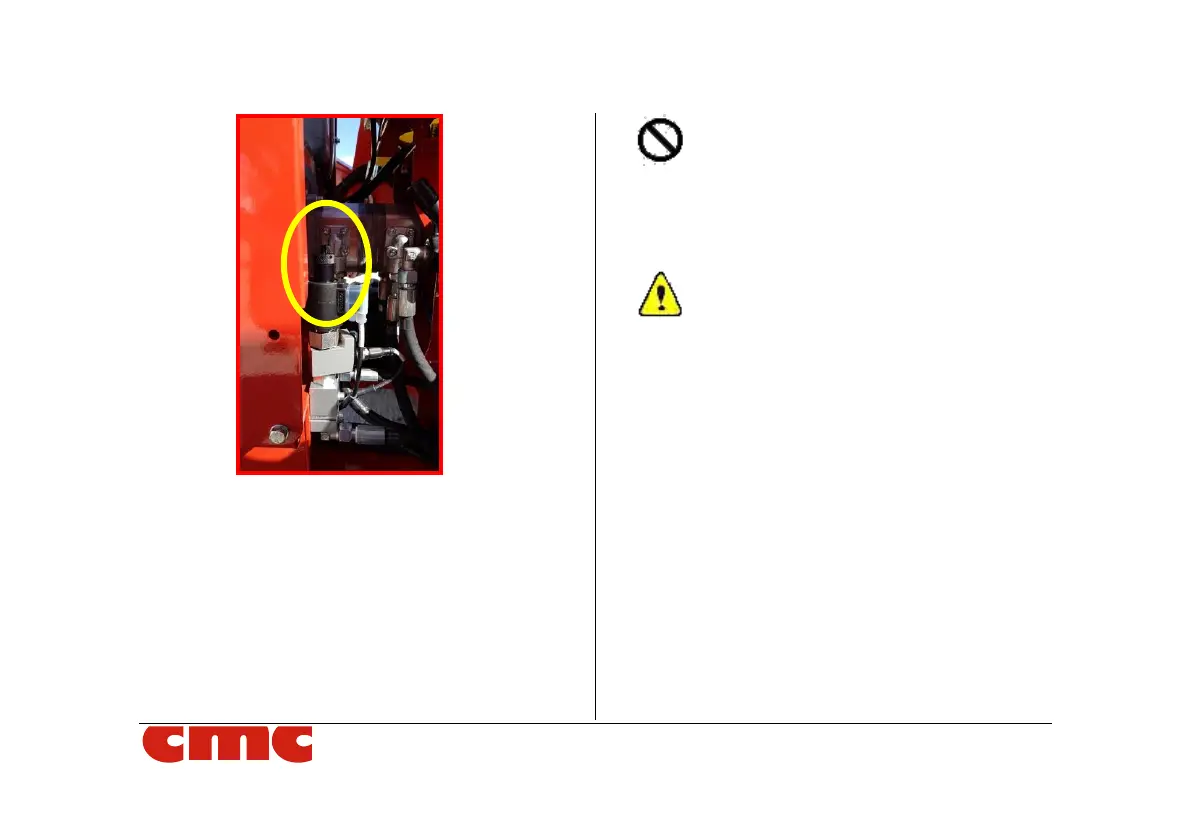

Picture 27: outriggers valve.
While pumping oil with the manual pump:
4. Perform the outriggers retraction through the
levers 1, 2, 3, 4 of outriggers control station
(Picture 13).
5. Execute the tracks re-entry moving upward the
lever 5 on outriggers control station (Picture
13).
It is strictly forbidden to use the MEWP
with solenoid valves tampered or without
seals.
➔ It is mandatory to restore all the sealings
after use of these items.
AFTER THE RECOVERY OF THE
PLATFORM, BRING THE MEWP TO C.M.C.
OR TO AN AUTHORISED WORKSHOP
FOR THE RESTORING OF THE NORMAL
OPERATING CONDITIONS WHICH ARE
INDISPENSABLE FOR A SAFETY USE OF
THE MACHINE.
4.6.6 Electropump (*optional)
The 12 V emergency electropump (Picture 28) is an
alternative source of energy for the engine and
should only be used in case of emergency.
