appropriate plug on its right side to the machine attack
(Picture 17).

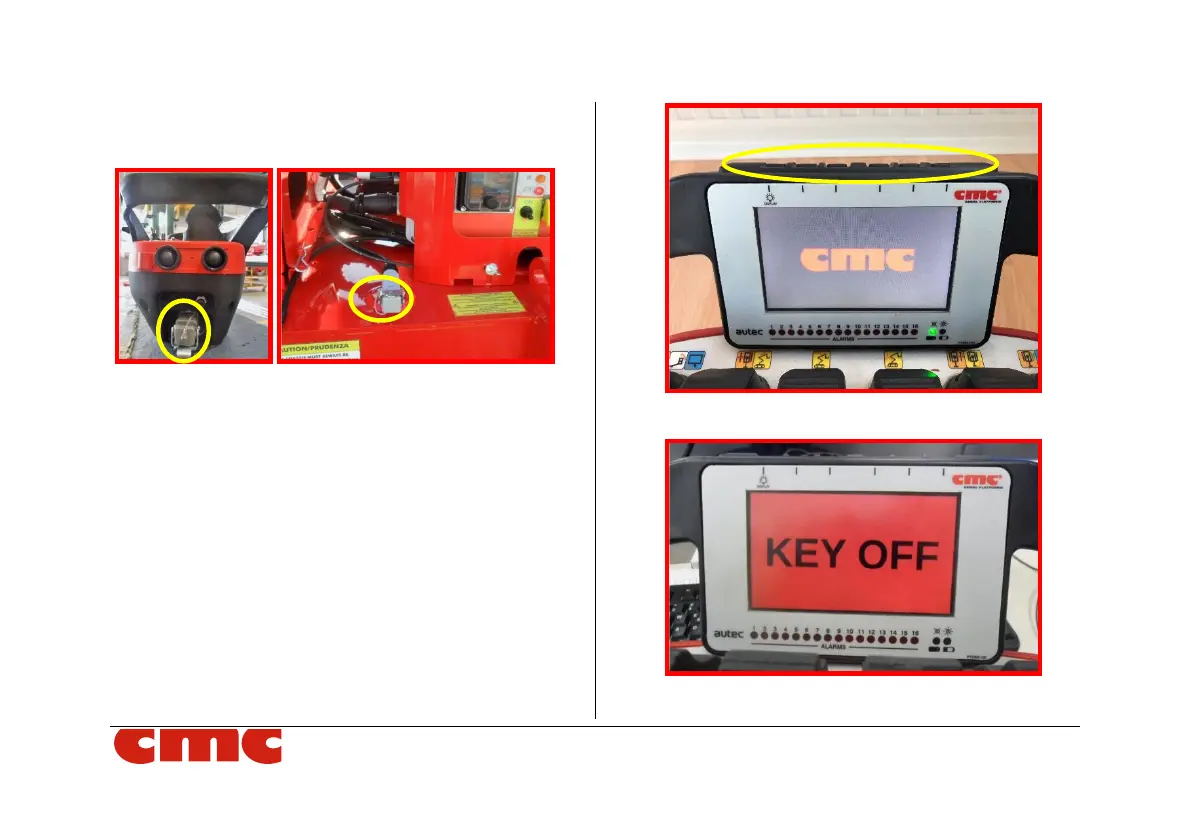

Picture 17: radio control connection.
A very important device of the radio control is the blue
coding key CK on its left side (Picture 14), which puts the
console in communication with the machine control unit.
Be careful not to lose it.
3.2.2.1 AUTEC radio control display
Moreover, this station has a color display (Picture 18)
which allows to visualize all the function parameters of
the machine.
Picture 18: radio control display.
Picture 19: “Key Off” screen.
