If the screen in Picture 19 appears, it means that the
radio control is on, but the ignition key is in the OFF
position. Then proceed with switching the ignition key in
ON position (par. 3.1).
On the display, through the buttons at the top (Picture
18), it is possible to check and modify menu options and
data.

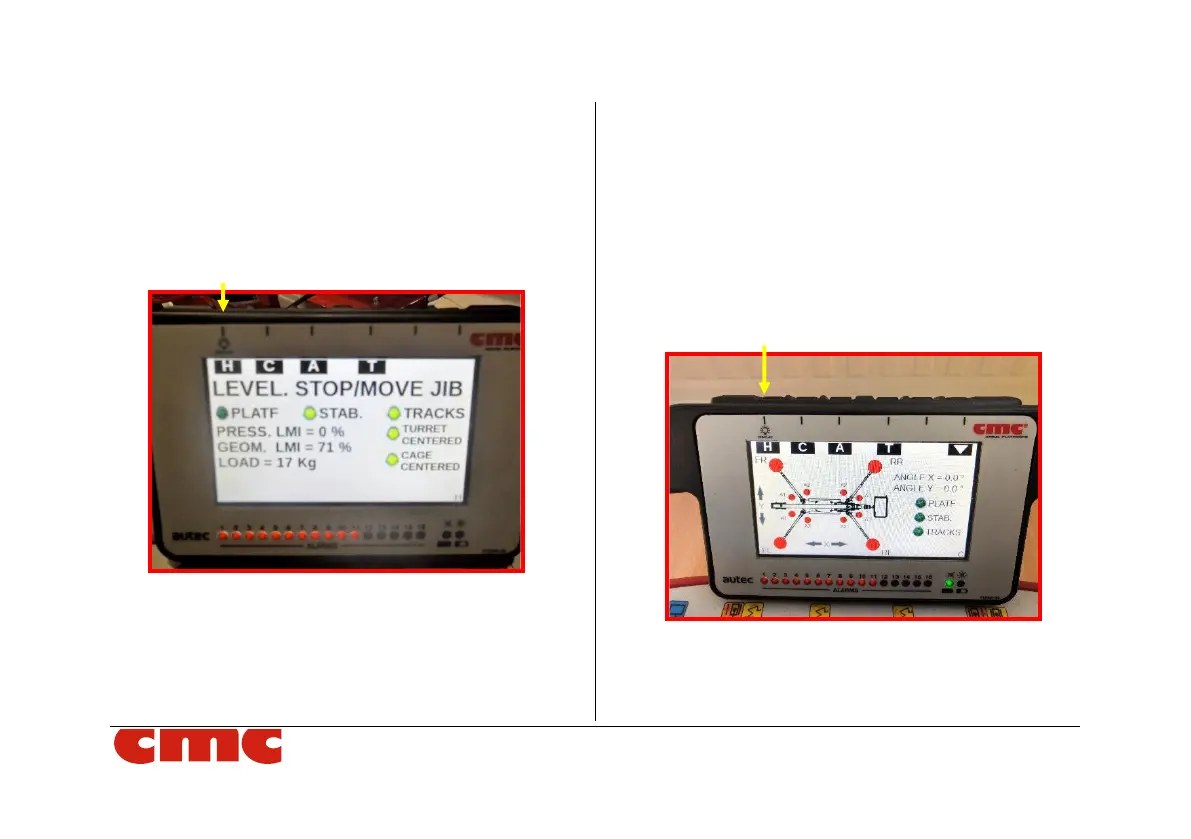

Picture 20: Home screen.
Pressing the first key from the left H, at the top of the
display, you access the "Home" screen (Picture 20).
In this screen, with the machine closed, the green
consent led TRACKS is on for the use of the tracks
during the machine travel.
Once the pins of each of the four outriggers have been
inserted and a work area (1-narrow or 2-wide) has been
selected for each outrigger, enabling the respective limit
switch, stabilization consent green light STAB will also
be displayed to use the outriggers.
Once the machine is correctly stabilized, the consent
platform led PLATF will be on. As soon as one or more
of outriggers will be on the ground, the tracks led will be
off. On same screen, when the aerial part is not
completely folded, also the stabilization consent light will
be off.
