4.3.3.2 Travel using basket console

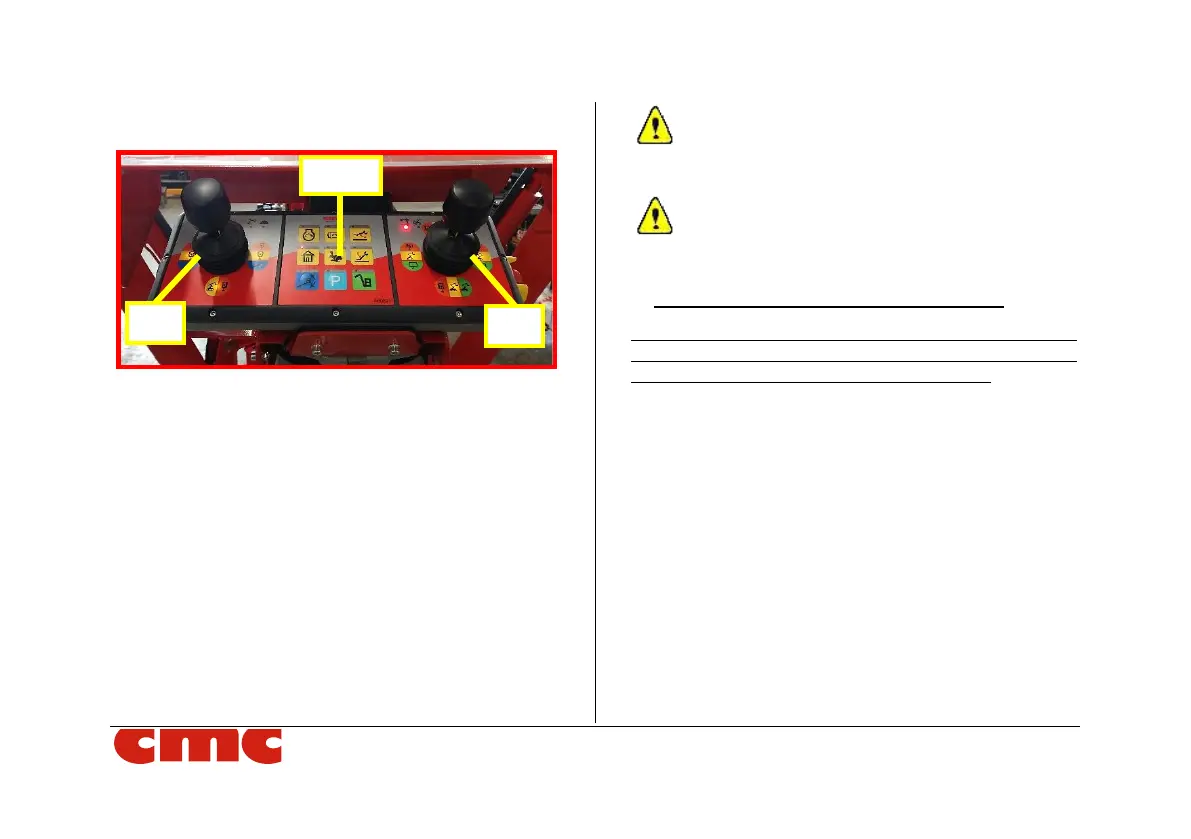

Picture 44: basket console.
In order to perform a travel, using the basket control
station (Picture 44):
1. make sure all outriggers are raised off the
ground;
2. make sure that the basket block pin is inserted
(Picture 50), and the basket is active;
3. make sure that the main and secondary boom
groups are perfectly retracted and supported;
4. disable the radio control or disconnect the
remote control;
5. switch on the machine (par. 3.1);
6. use the joysticks J1 and J2 (Picture 44) to
maneuver the tracks;
7. by positioning the speed selector on “hare”, it is
possible to increase the speed of the tracks.
The travel slope limits are lower from the basket
control station: 9° (pre-alarm at 7°) longitudinally
and 7° (pre-alarm at 5°) transversally.
WARNING! If the slope is >8°, the travel must
be performed through radio control.
Procedure for bypass of the travel block:
During travels, when reaching a pre-alarm slope limit, an
intermittent acoustic warning will activate; it becomes a
fixed acoustic signal at maximum slope limits in order to
indicate the PROHIBITION TO KEEP ON INCREASING
INCLINATION FURTHER.
If the operator continues, reaching max allowed
level, the machine will inevitably go into total block.
It will be possible to bypass this block ONLY THROUGH
OPERATIONS UNDER THE FULL RESPONSIBILITY
OF THE USER, who can proceed as below:
1. Remove the cover present on the left side of the
turret;
2. Remove the lead seal and lift the red button
shown in Picture 45:
