MAN.243 Rev.5 ENG - Use and maintenance manual S28 page 56 of 138
- levers 6 - 5: upward to withdraw and downward to
widen the left and right tracks;
- levers 2 - 4 - 3 - 1: upward to close and downward
to open each outrigger;
- the machine will be correctly stabilized when the
consent indicator for the use of the aerial part 20
(Picture 12) will light up. To achieve this condition,
it is strictly necessary to lower the outriggers until
they are well positioned on the ground, the tracks
uplifted and the frame in planarity with a maximum
tolerance of 1 ° (inclinometer control).
It is essential to carry out the stabilization
operations by operating on all four levers
simultaneously. Once the feet will all have
touched the ground, it will be possible to continue
running short alternate cycles before on the two
front outriggers and then on the two rear ones.
4.4.2.2 Automatic stabilization with radio
control
If you want to stabilize the machine in automatic mode,
you can use the radio control or the remote control:
• use the lever SAR (Picture 48). It causes the
simultaneous descent of the four outriggers until
the signal reading of the four limit switches on the
ground contact and the lifting of the tracks;

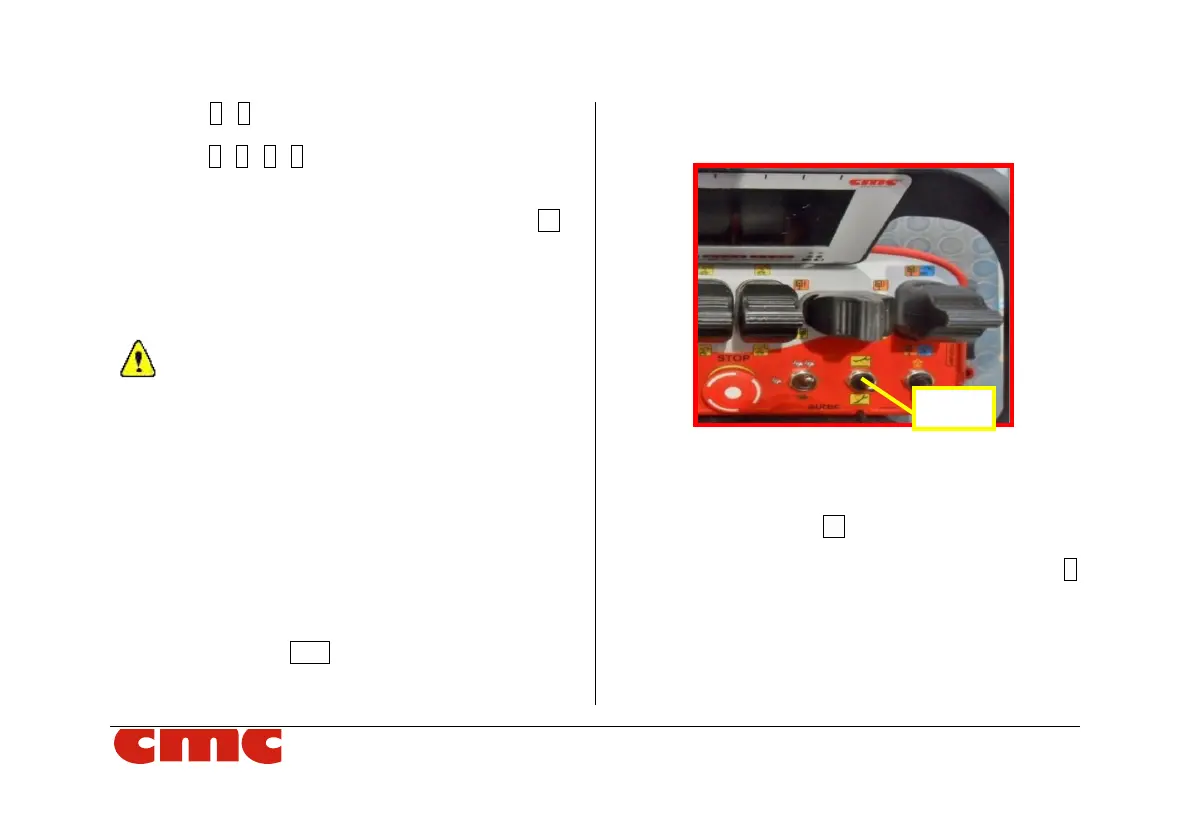

Picture 48: stabilization/destabilization lever
on radio control.
• make sure that the consent indicator for the use
of the aerial part 20 (Picture 12) is on.
During stabilization phase, pressing the parking button P
(Picture 16), together the stabilization lever, you can
raise all the machine without waiting the predefined cycle
of automatic stabilization.
