CME BodyGuard 575 Color Vision User Manual

Software ver. CVPCA30E_1 7

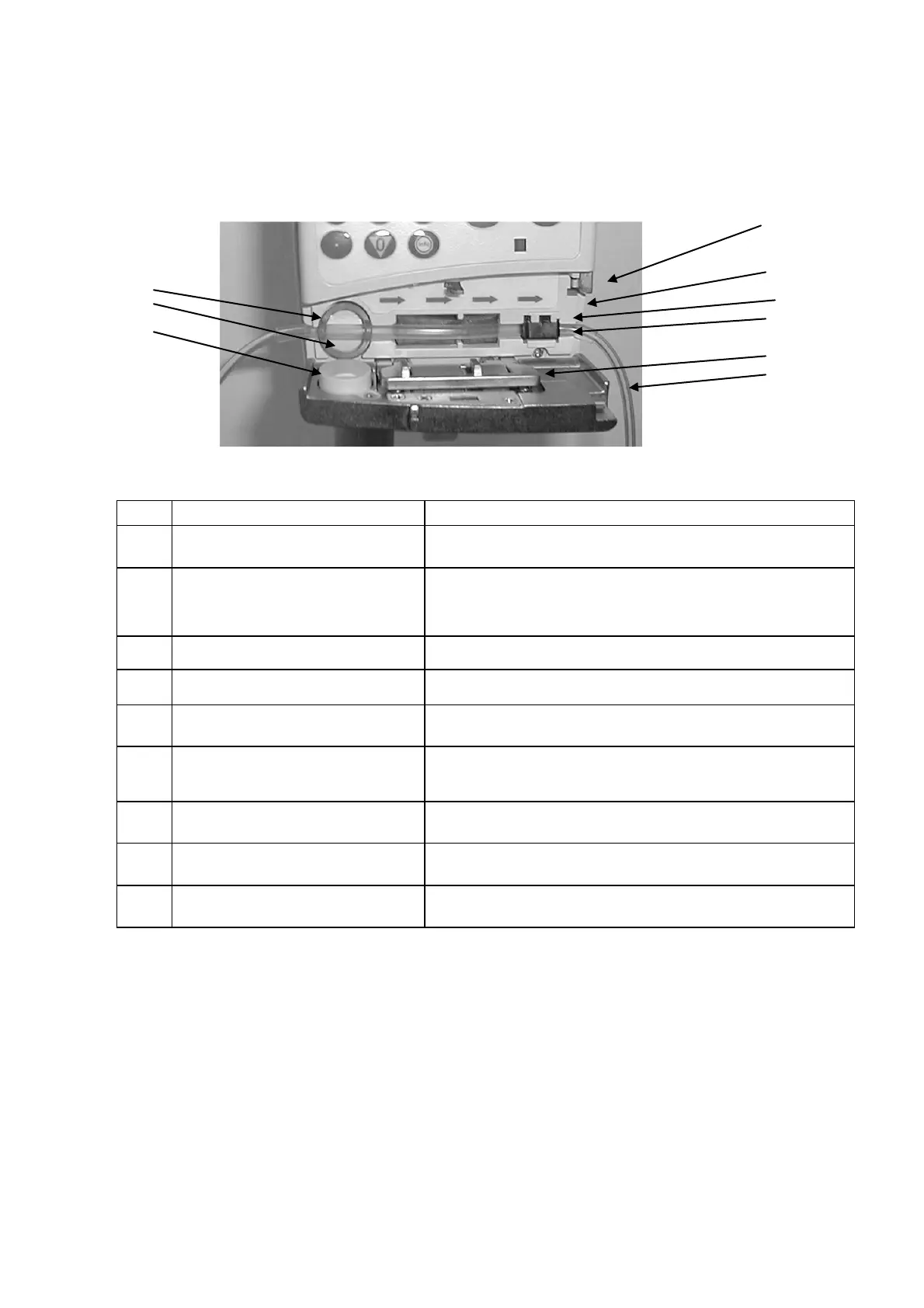

BodyGuard® Infusion Pump with Door open
#
Area
Function
1.
Latch Holder
Holds the door closed when latch is in vertical
position.
2.
Pressure Sensor
Detects downstream tubing restriction and
occlusion. Alarm level can be adjusted to suit
patient needs.
3.
Keyway
Guides the ADMINISTRATION line.
4.
Pressing Plate
Connected to the door by two springs.
5.
Pump Door
Covers the pressing plate.
6.
Air sensor – Front
Ultrasonic air detector, which is mounted on the
front housing.
7.
Air sensor - Door
Mounted on the door.
8.
Flow Direction
Shows direction of pump operation.
9.
Anti-Stretch locator
Locates the tube in the correct length from the
key (Optional).
1
8
2
3
4
5
7
8
9

CME BodyGuard 575 Color Vision Specifications

General

Brand	CME
Model	BodyGuard 575 Color Vision
Category	Medical Equipment
Language	English
