3. If not already assembled:
Assemble each Combiner and Spacer to a Bracket – using the supplied bolts and nuts for
each
assembly. Note DIRECTION of the bracket and that LEFT side is assembled DIFFERENTLY than RIGHT
side.
• Left bracket – assembled on two TOP holes (and center holes) as shown below.
• Right bracket – assembled on two BOTTOM holes (and center holes)

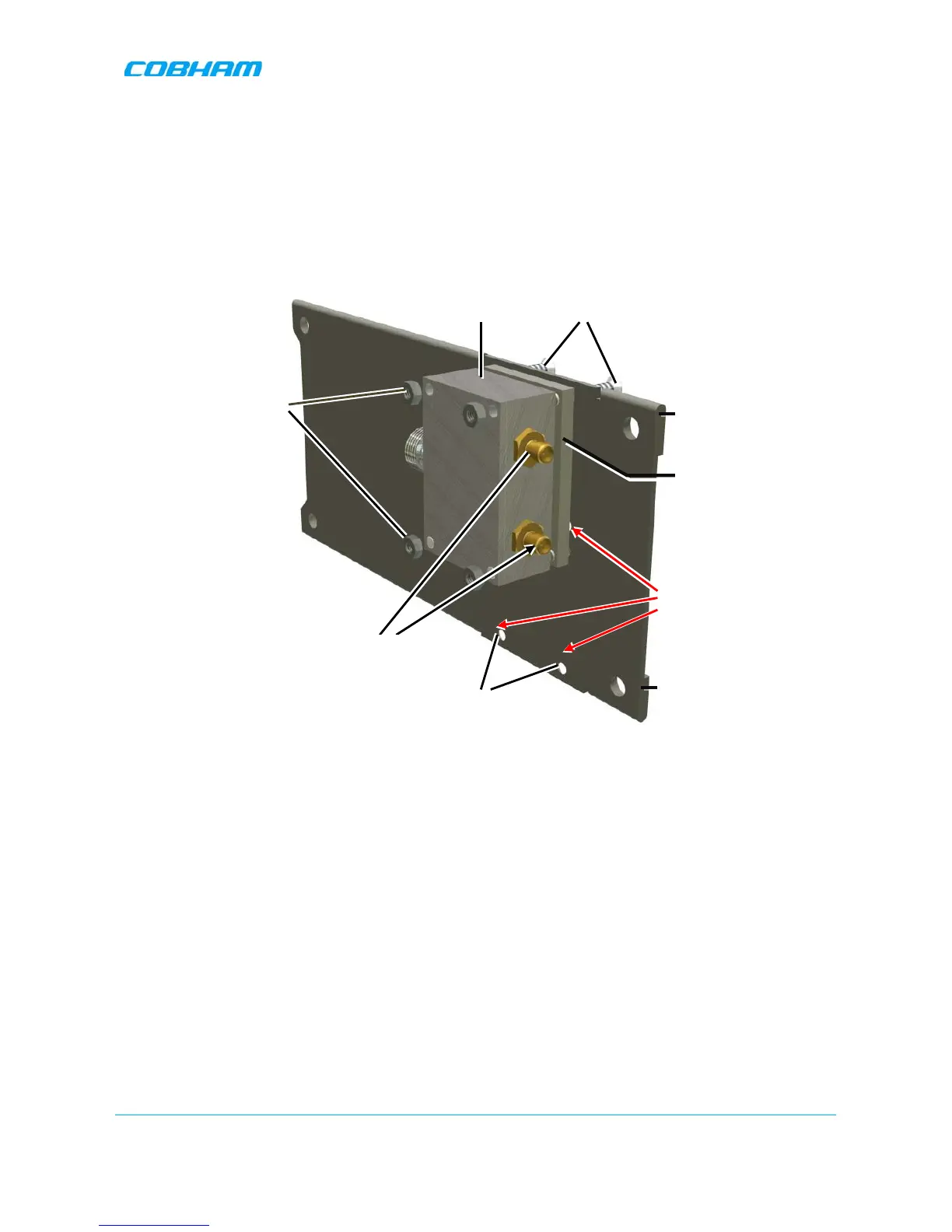

Figure 4-6. Left bracket - Combiner and Spacer Secured to Side Cascading Bracket
X2 connectors
facing this direction
Side Bracket
