4. Assemble Side Brackets on bottom Repeater:
• Place one of the Repeaters on a flat surface – ridges facing down. This will be the bottom
repeater.
• Noting orientation -
loosely assemble the side plate brackets on both sides of the bottom
repeater.

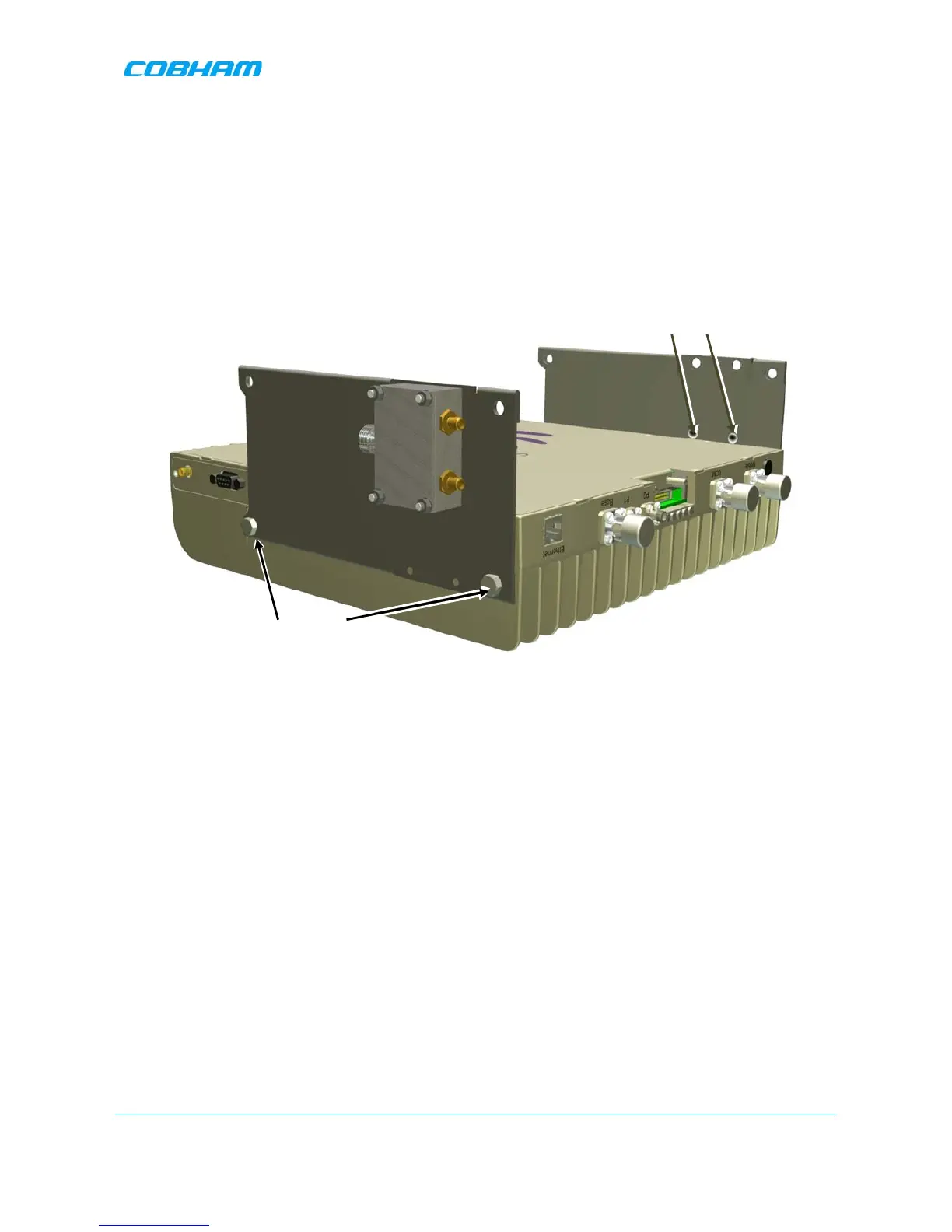

Figure
4-7. Assemble Side Brackets on Bottom Repeater
Close Loosely on each
side –
but enough to
hold
when assembly is
picked up
Assemble RIGHT side
combiner on these h
oles
and bottom holes
