Antenna dimensions
98-145510-E Appendix A: Technical specifications A-15
A.8.2 EXPLORER 8120
The dimensions shown here are in millimeters, with inches shown in brackets.

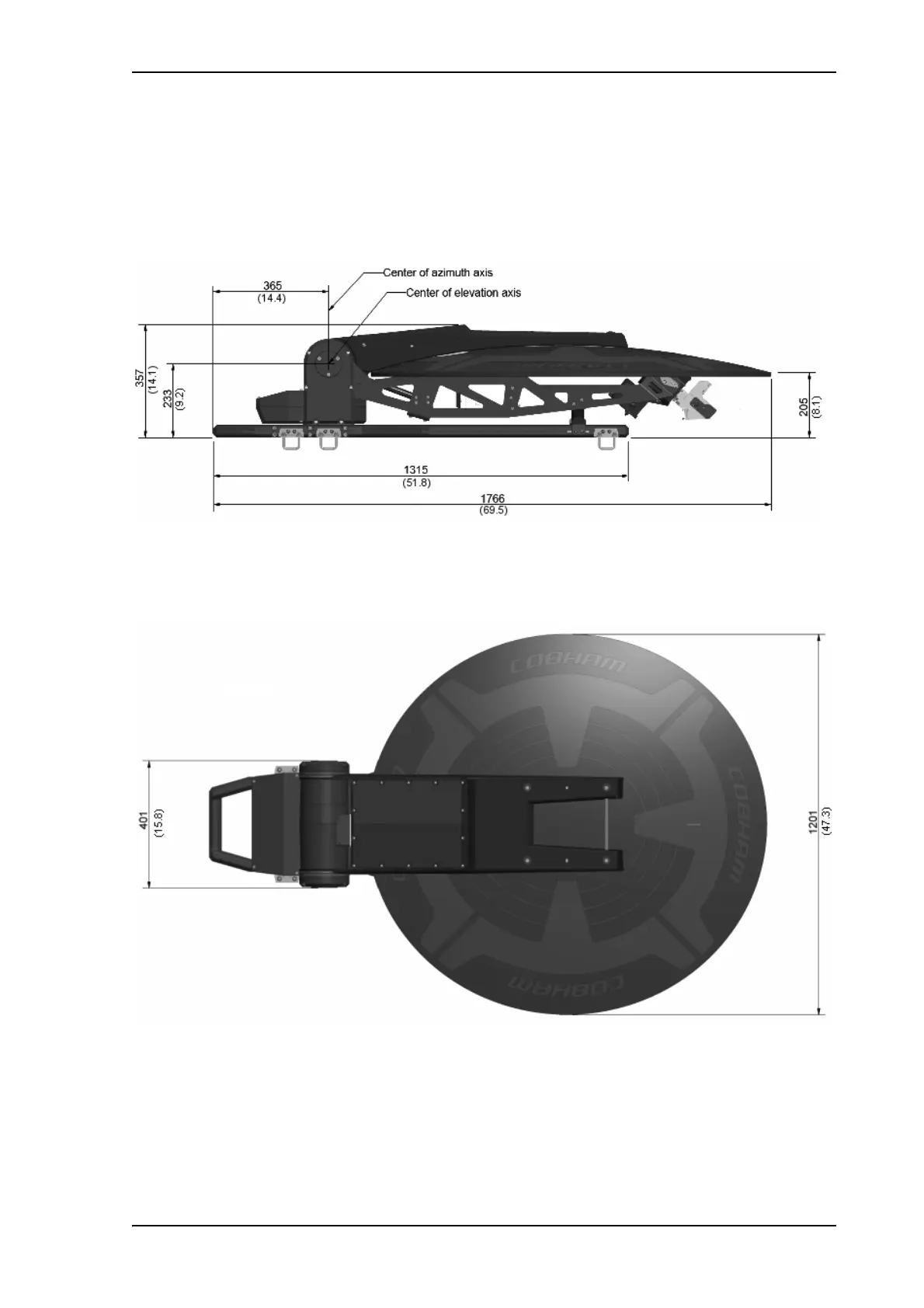

Side view (stowed)
Top view (stowed)
Figure 17: EXPLORER 8120 antenna: Side view (stowed)
Figure 18: EXPLORER 8120 antenna: Top view (stowed)
