OpenAMIP setup for iDirect iNFINITI & Evolution
98-145510-E Appendix C: VSAT modem settings C-3
The pin allocation for the RS-232 Console cable is shown below. See also Appendix B on
page B-1 for a cable drawing.

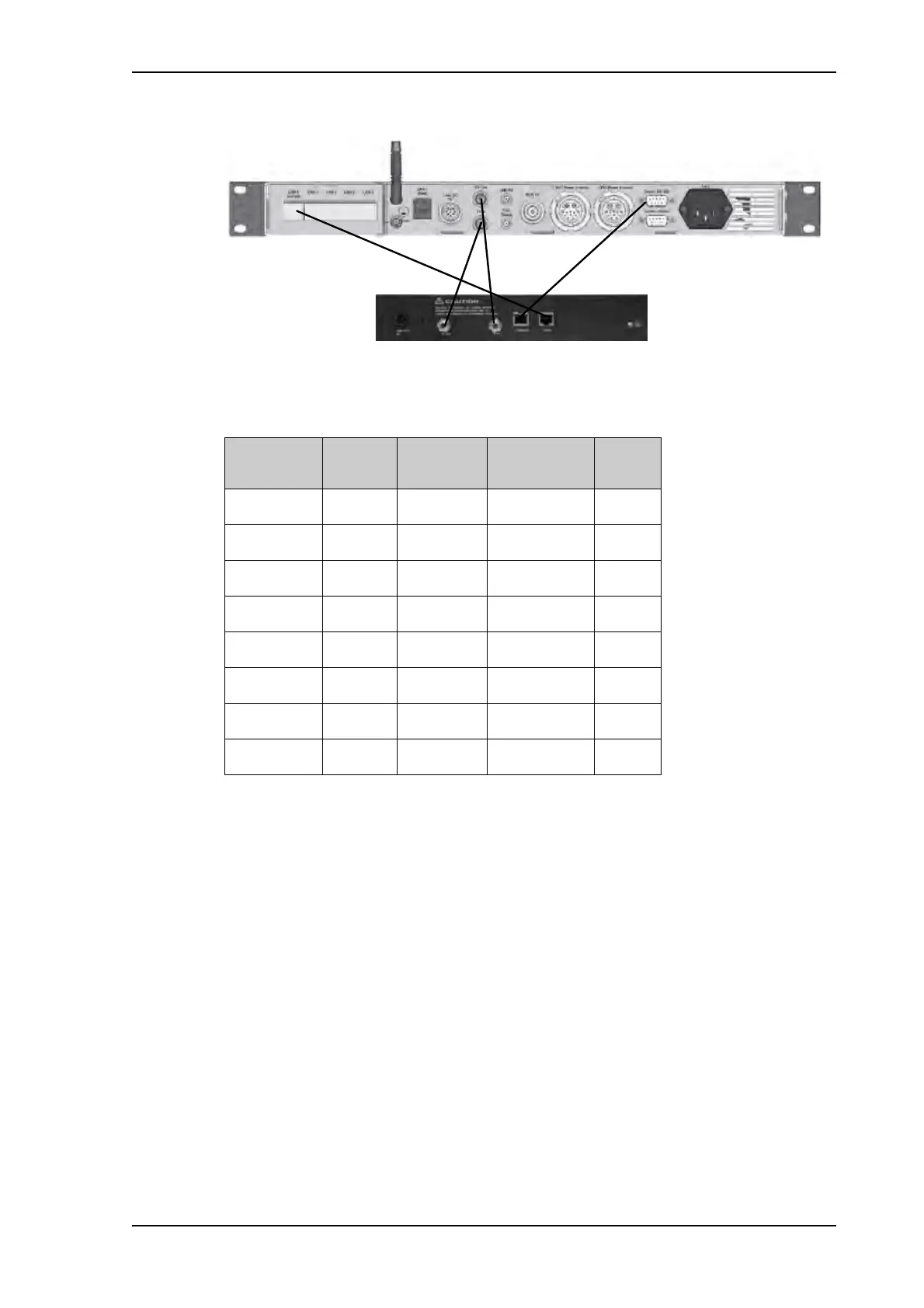

Figure 2: Connecting iDirect Evolution X5 to the ACU (OpenAMIP)
Console
port (DTE)
RJ-45 pin Color code
RJ-45 to DB-9
adapter pin
Console
device
RTS 1 Blue 8 CTS
DTR 2 Orange 6 DSR
TxD 3 Black 2 RxD
GND 4 Red NC GND
GND 5 Green 5 GND
RxD 6 Yellow 3 TxD
DSC 7 Brown 4 DTR
Rx-RF Power 8 White/Grey 9 --
Table C-3: RS-232 Console cable for iDirect VSAT modem
