To stow and unfold the antenna manually
98-145510-E Chapter 7: Service and maintenance 7-12
3. Go back to the other side of the antenna and use the Hand crank to adjust the elevation
(turn clockwise to unfold the antenna).
4. When the Feed boom is free of the stow brackets, you can adjust the azimuth as
described in step 3 and step 4 in the previous section.
5. When you have finished adjusting the elevation, remove the screw driver from the
Elevation stow lock release mechanism.
6. Remount the covers for the adjustment locations (Elevation adjustment, Elevation stow
lock release and the small cover for the Azimuth adjustment).

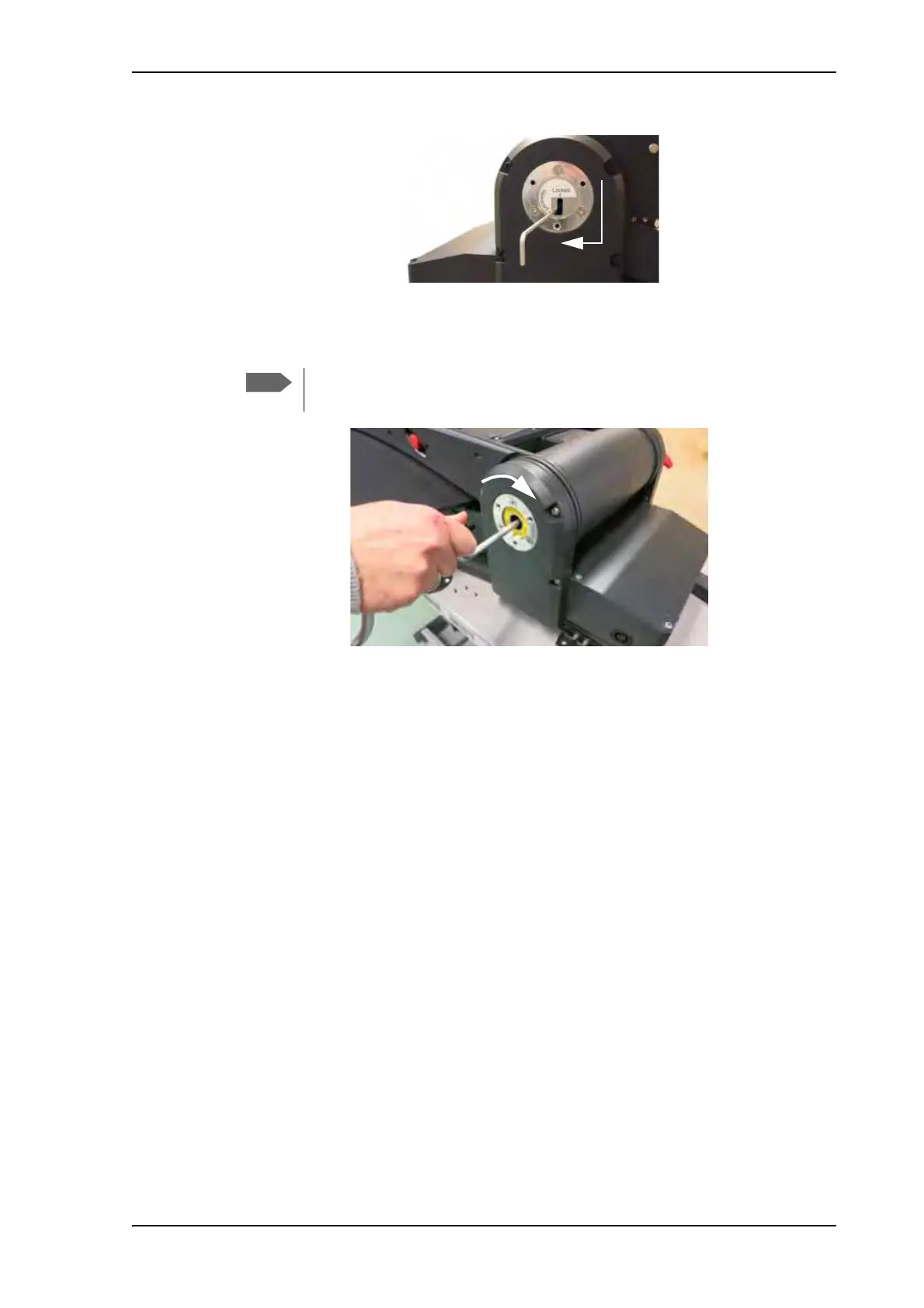

Figure 11: Stow lock release
If you have the stow brake version of the antenna you must first remove the
small cover. You can do this with the Hand crank.
Figure 12: Manual elevation adjustment
